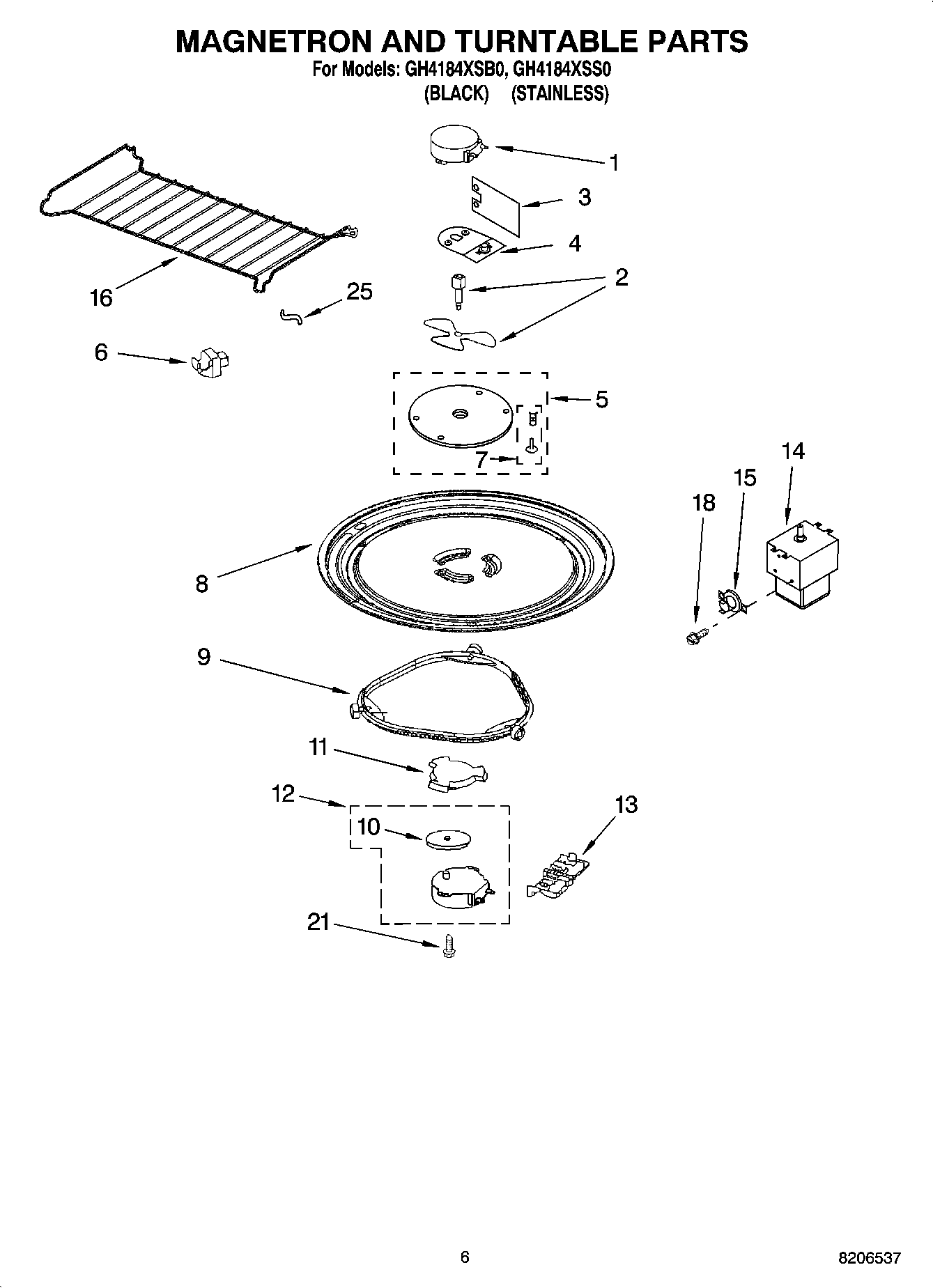

GH4184XSB0 05 – MAGNETRON AND TURNTABLE PARTS

GH4184XSB0 05 – MAGNETRON AND TURNTABLE PARTS

Written by

in

GH4184XSB0 05 – MAGNETRON AND TURNTABLE PARTS

Products

PositionProduct
1Motor, Stirrer
2Stirrer Shaft/Blade
3Shield, Nomex
4Thermostat/Bracket
5Cover, Inlet Includes Nails and Bushings
7Nails/Bushings (4 of each)
84393799 Whirlpool Microwave Glass Tray
9W11252182 Whirlpool Glass Tray Support
108184109 Whirlpool Microwave Spacer
11W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
12W10642989 Whirlpool Microwave Oven Turntable Motor
13Cover, Terminal
14W10222507 Whirlpool Microwave Magnetron
15Thermostat
16Rack
18Screw
214393832 Whirlpool Microwave Screw
25W10315274 Whirlpool Microwave Meal Rack
