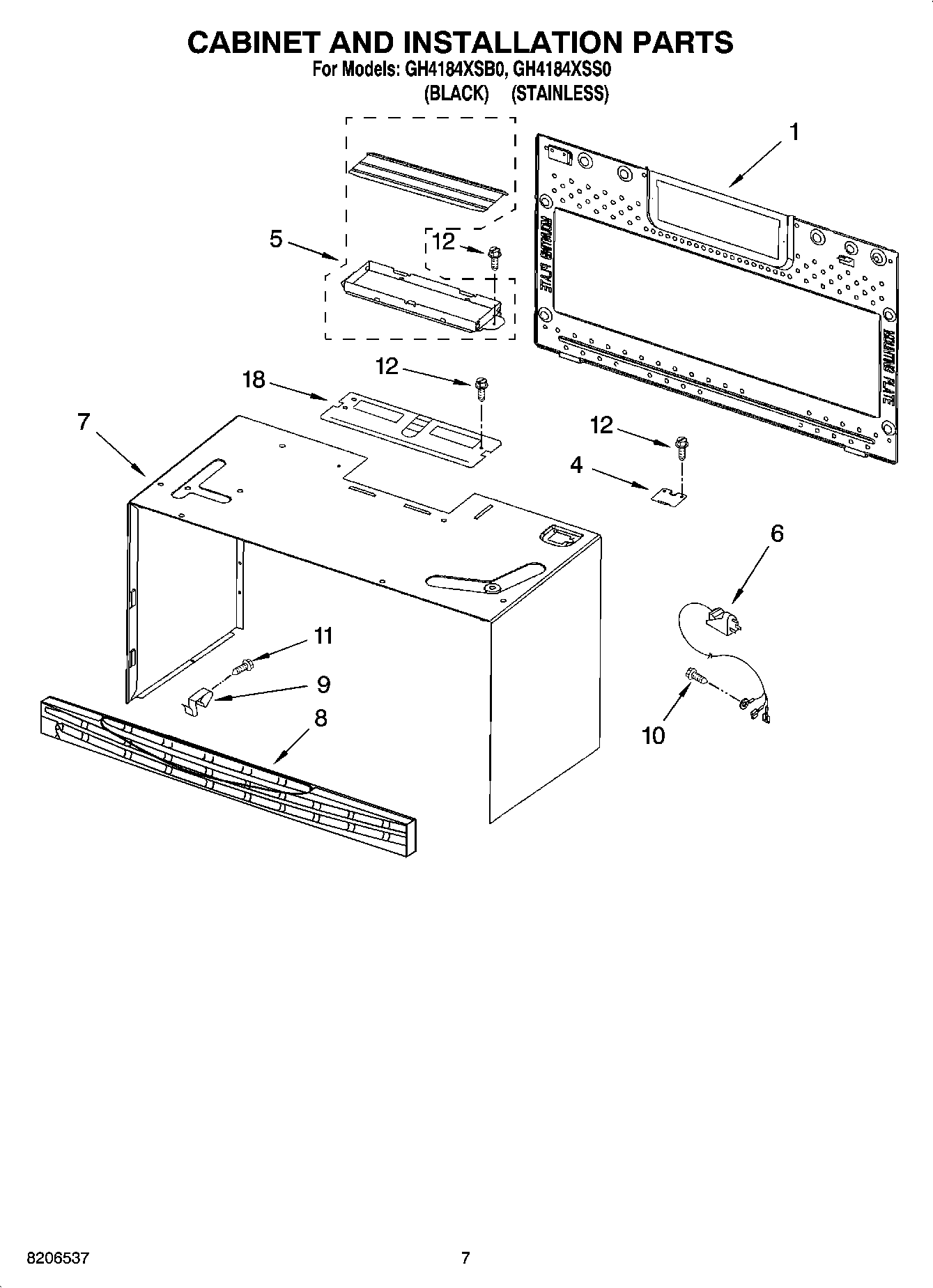

GH4184XSS0 06 – CABINET AND INSTALLATION PARTS

GH4184XSS0 06 – CABINET AND INSTALLATION PARTS

Written by

in

GH4184XSS0 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
1Plate, Mounting
4Lid, Power Cord
5W10843943 Whirlpool Microwave Vent Damper
6W10708076 Whirlpool Microwave Power Cord
7Case, Outer
8Grille, Vent (Stainless)
8W10450187 Whirlpool Microwave Oven Vent Grille
9W10615742 Whirlpool Microwave Clip
104393836 Whirlpool Microwave Screw
11Screw
12W11380570 Whirlpool Microwave Screw
18Template, Upper
188205948 Whirlpool Microwave Mount
18H.V. Wire Assy
18Cover, Fan Mtr
18W10539840 Whirlpool Microwave Wire Harness
18WP8169704 Whirlpool Screw
18FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous
