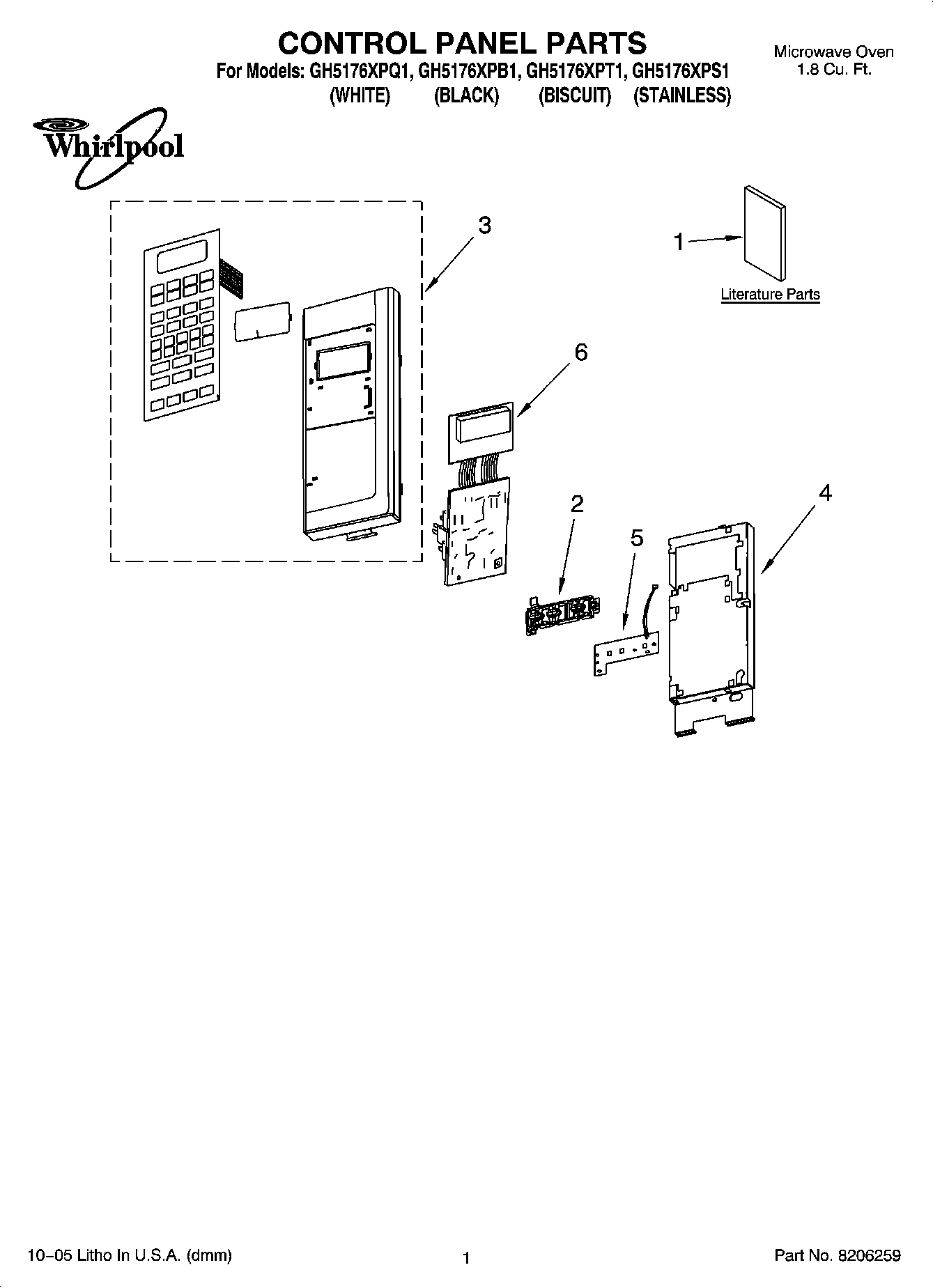

GH5176XPS1 01 – CONTROL PANEL PARTS

GH5176XPS1 01 – CONTROL PANEL PARTS

Written by

in

GH5176XPS1 01 – CONTROL PANEL PARTS

Products

PositionProduct
Microwave Oven 1.8 Cu. Ft.
1Use and Care Guide
1Tech Sheet
1Cook Guide Label
1Installation Instructions
2Button, Control (Black/Stainless)
2Button, Control (Biscuit)
2Pushbutton
3Panel Asy, Control Includes Lens and Membrane Switch (Biscuit)
3Panel Asy, Control Includes Lens and Membrane Switch (Black)
3Panel Asy, Control Includes Lens and Membrane Switch (White)
3Panel Asy, Control Includes Lens and Membrane Switch (Stainless)
4Bracket, Control
5Keyboard Assy
6Microcomputer
