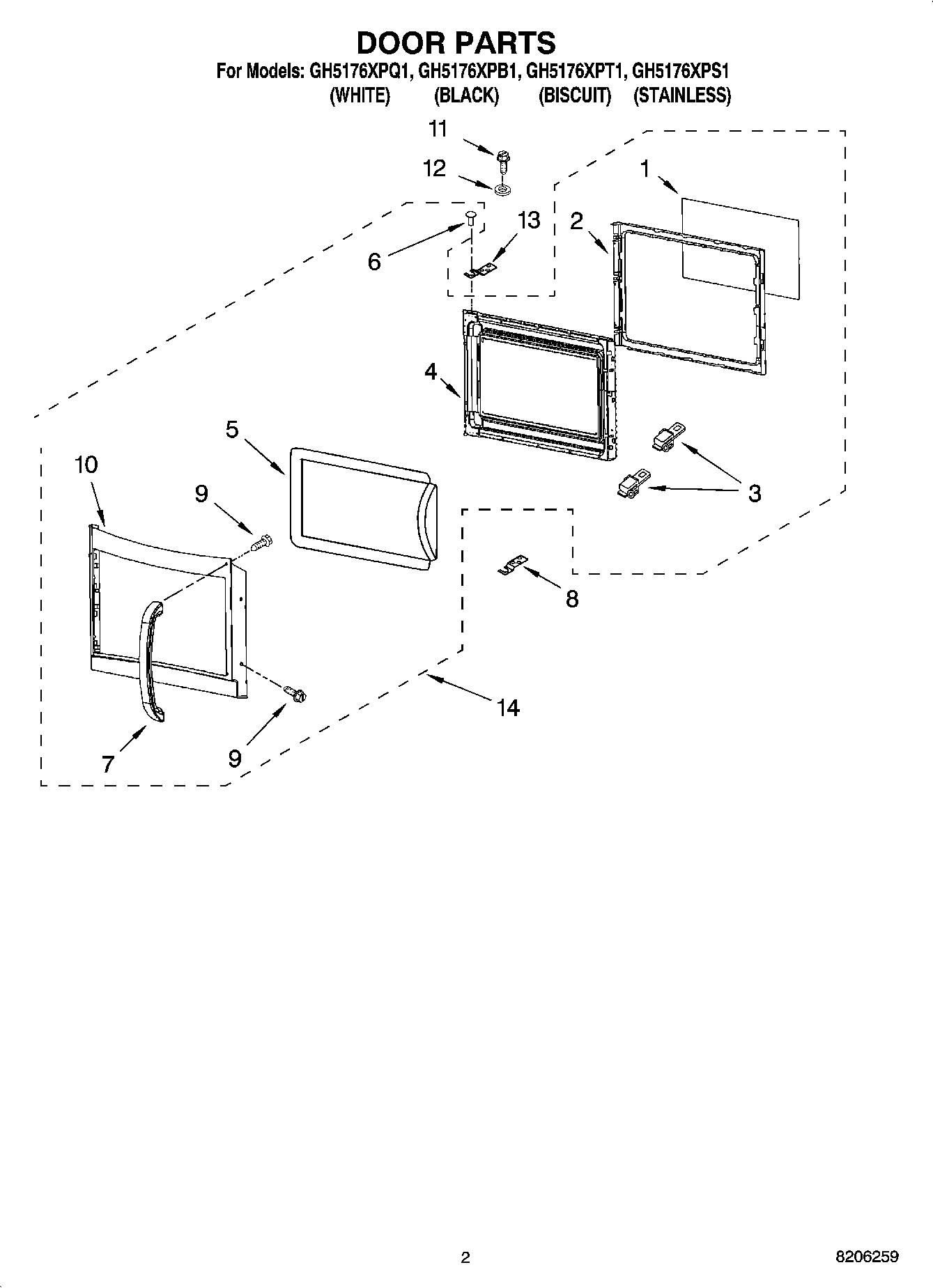

GH5176XPS1 02 – DOOR PARTS

Products

Position	Product
1	Film, Back Included with 4
2	Frame, Inner
3	Latch, Door
4	Body Asy, Door Includes 1 (Black)
4	Body Asy, Door Includes 1 (Biscuit)
4	Body Asy, Door Includes 1 (White)
5	Glass, Outer Plast Included with 10
6	Pivot, Door
7	8206177 Whirlpool Microwave Door Handle
7	Handle, Door (White)
7	Handle, Door (Biscuit)
7	Handle, Door (Stainless)
8	Lower Hinge
9	8169479 Whirlpool Microwave Screw
10	Frame Asy, Outer Includes 5 (Black)
10	Frame Asy, Outer Includes 5 (Biscuit)
10	Frame Asy, Outer Includes 5 (Stainless)
10	Frame Asy, Outer Includes 5 (White)
11	8169480 Whirlpool Microwave Screw
12	WP8533914 Whirlpool Lock
13	Upper Hinge
14	Complete Door (White)
14	Complete Door (Stainless)
14	Complete Door (Biscuit)
14	Complete Door (Black)
