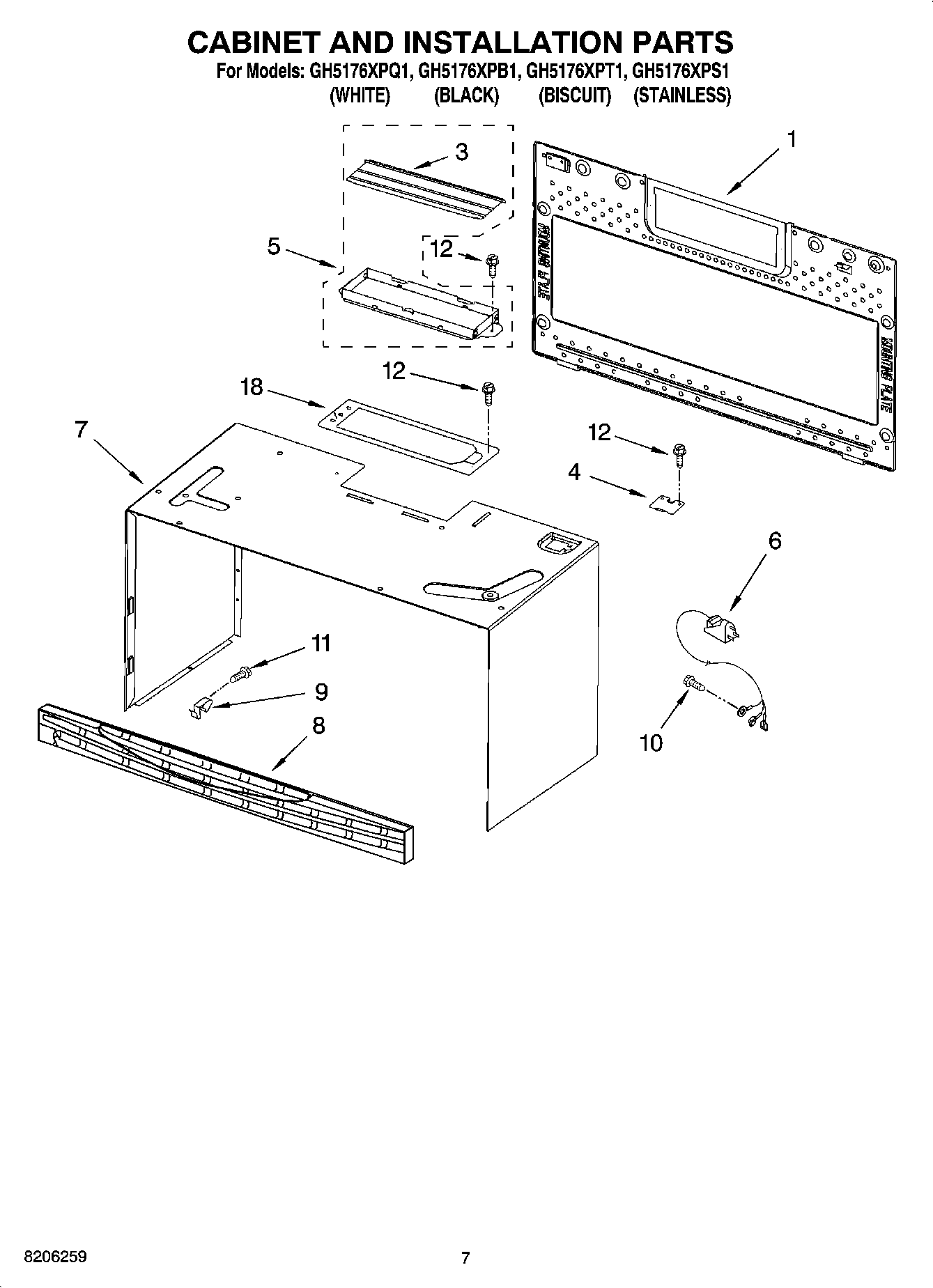

GH5176XPS1 06 – CABINET AND INSTALLATION PARTS

GH5176XPS1 06 – CABINET AND INSTALLATION PARTS

Written by

in

GH5176XPS1 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
1Plate, Mounting
3W10843943 Whirlpool Microwave Vent Damper
4Lid, Power Cord
6Cord, Power
7Case, Outer (Biscuit)
7Case, Outer (Black)
7Case, Outer (White)
8Grille, Vent (White)
8Grille, Vent (Biscuit)
8Grille, Vent (Stainless)
8Grille, Vent (Black)
9W10615742 Whirlpool Microwave Clip
104393836 Whirlpool Microwave Screw
11Screw
12W11380570 Whirlpool Microwave Screw
18Wire Harness (Includes Light Sockets)
18Hardware, Installation
18Upper Template
18Plate, Damper
188205262RB Whirlpool Refrigerator Crusher Blade #2
18WP8169704 Whirlpool Screw
18Miscellaneous
