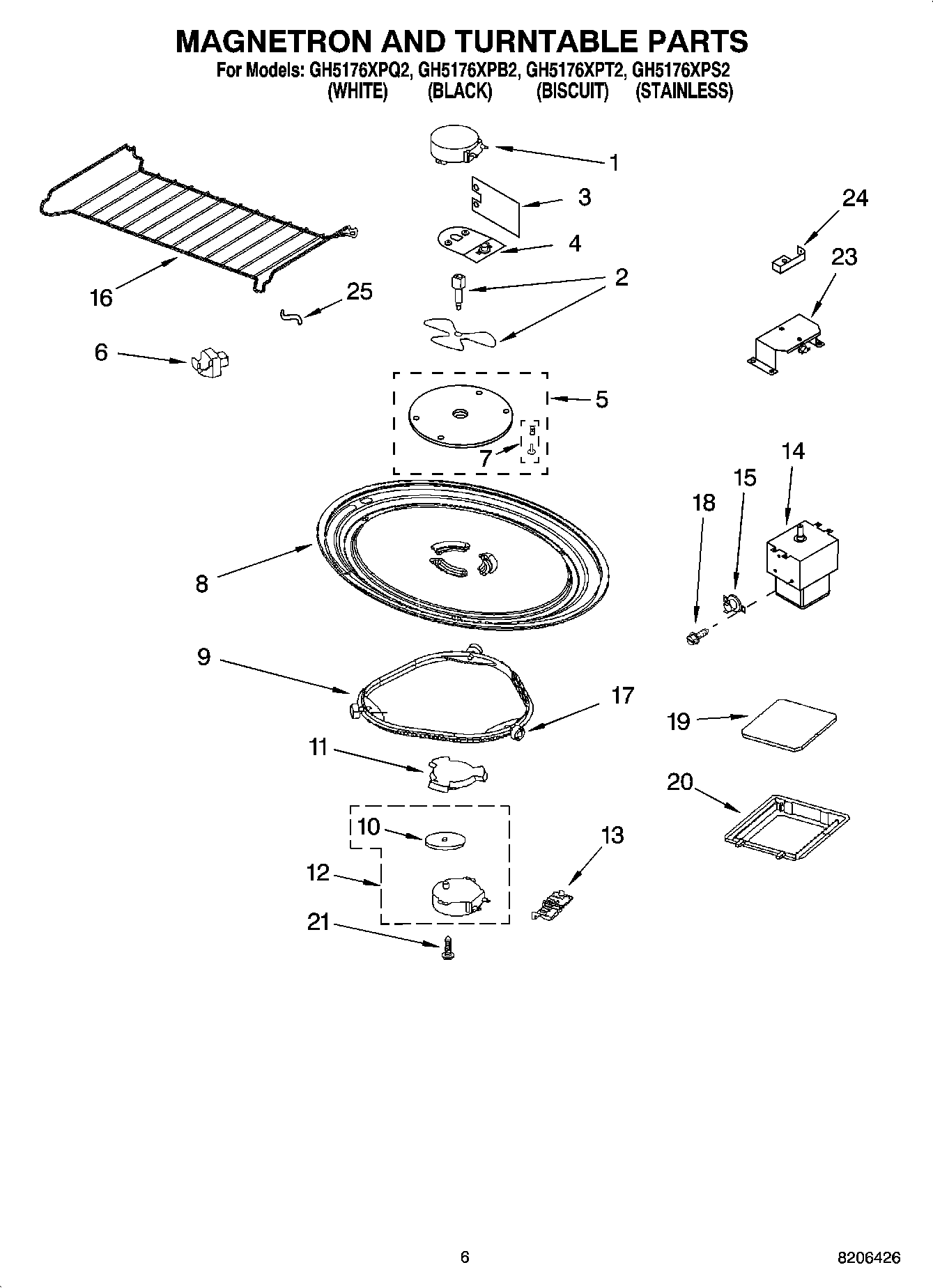

GH5176XPS2 05 – MAGNETRON AND TURNTABLE PARTS

Products

Position	Product
1	Motor, Stirrer
2	Stirrer Shaft/Blade
3	WP8184485 Whirlpool Microwave Shield
4	Thermostat And Bracket
5	Cover, Inlet Includes Nails and Bushings
6	W10315274 Whirlpool Microwave Meal Rack
7	Nails/Bushings (4 of each)
8	4393799 Whirlpool Microwave Glass Tray
9	W11252182 Whirlpool Glass Tray Support
10	8184109 Whirlpool Microwave Spacer
11	W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
12	W10642989 Whirlpool Microwave Oven Turntable Motor
13	Cover, Terminal
14	8206317 Whirlpool Microwave Magnetron
15	Thermostat
17	Wheel, Plastic
18	Screw
19	Glass, Lamp
20	Frame, Glass
21	4393832 Whirlpool Microwave Screw
23	Thermostat/Bracket
24	Bracket, Plug
