GH5176XPT0 02 – DOOR PARTS

GH5176XPT0 02 – DOOR PARTS

Written by

in

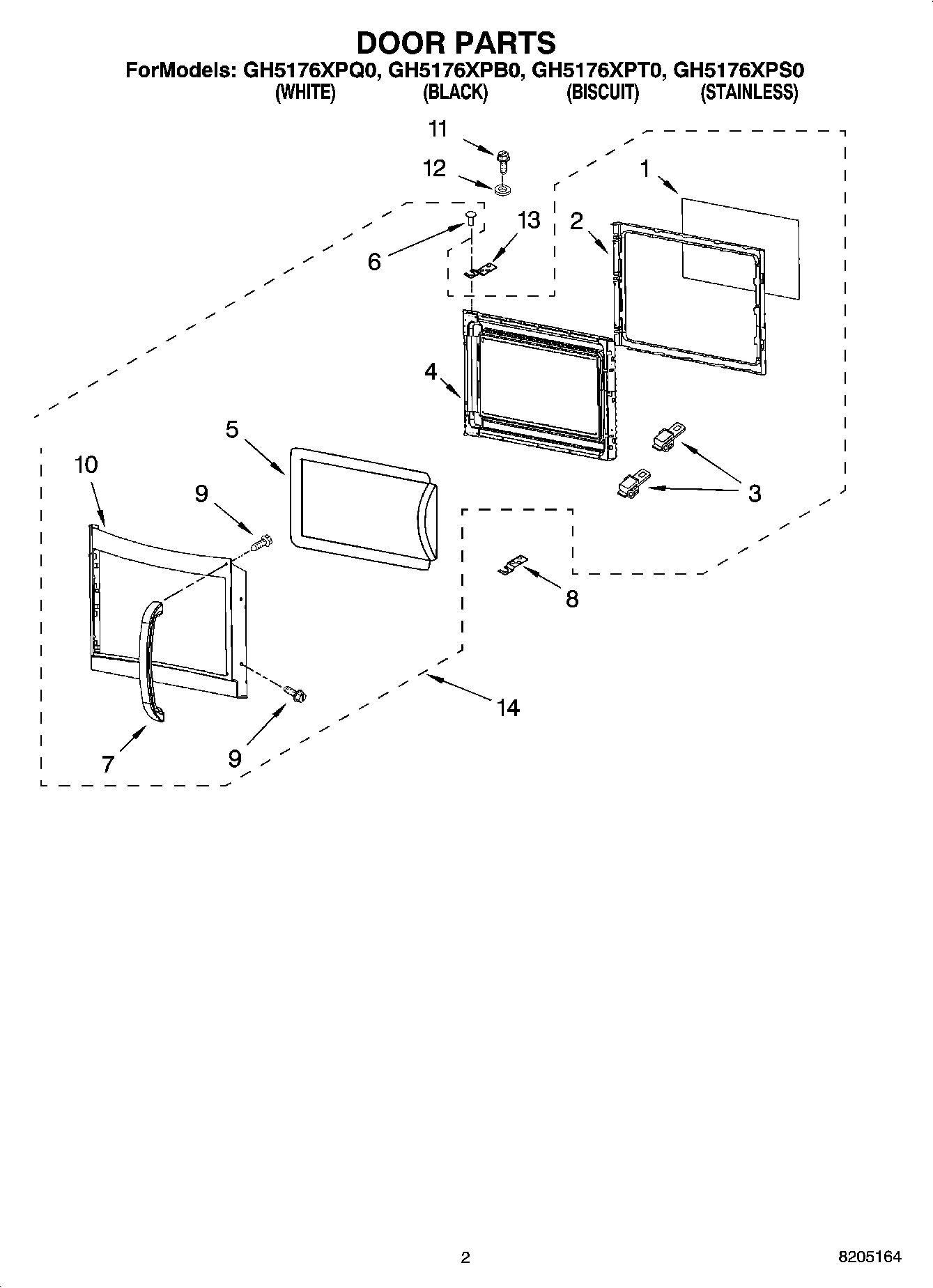

GH5176XPT0 02 – DOOR PARTS

Products

PositionProduct
1Film, Back Included with 4
2Frame, Inner
3Latch, Door
4Body Asy, Door Includes 1 (Biscuit)
4Body Asy, Door Includes 1 (Black)
4Body Asy, Door Includes 1 (White)
5Glass, Outer Plast Included with 10
6Pivot, Door
78206177 Whirlpool Microwave Door Handle
7Handle, Door (White)
7Handle, Door (Biscuit)
7Handle, Door (Stainless)
8Lower Hinge
98169479 Whirlpool Microwave Screw
10Frame Asy, Outer Includes 5 (Stainless)
10Frame Asy, Outer Includes 5 (Black)
10Frame Asy, Outer Includes 5 (White)
10Frame Asy, Outer Includes 5 (Biscuit)
118169480 Whirlpool Microwave Screw
12WP8533914 Whirlpool Lock
13Upper Hinge
14Complete Door (White)
14Complete Door (Stainless)
14Complete Door (Biscuit)
14Complete Door (Black)
