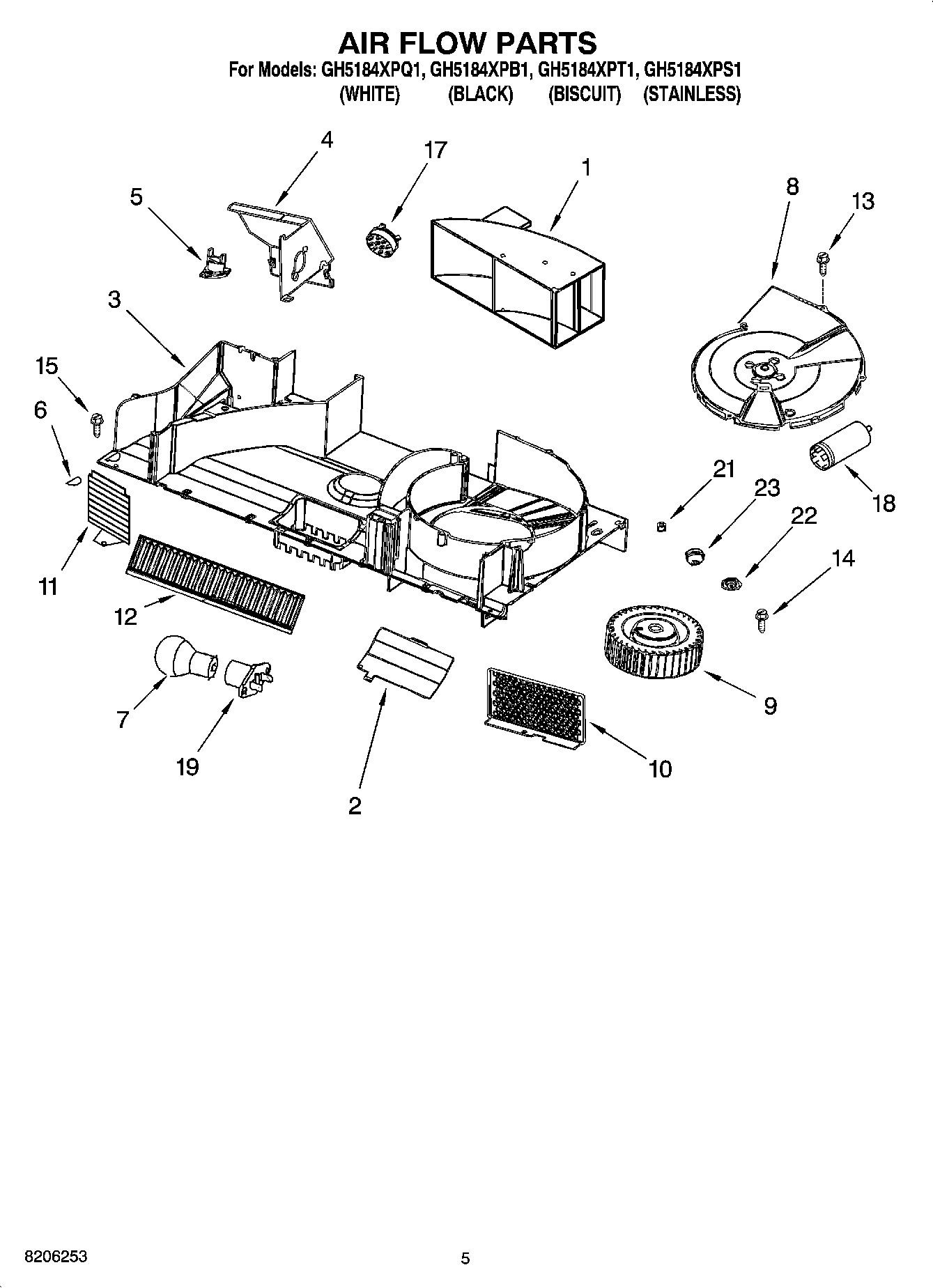

GH5184XPB1 04 – AIR FLOW PARTS

Products

Position	Product
1	Deflector, Air
2	Cover, Lamp
3	Duct, Air
4	Bracket, Thermostat
5	Thermostat
6	Cover
7	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
8	Cover, Motor
9	Motor, Fan Assy
10	Shield
11	Shield
12	Filter, Fan Hood
13	WP4393834 Whirlpool Microwave Screw
14	SCREW
15	Screw
17	Humidity, Sensor
18	Filter
19	Holder, Lamp
21	Spacer, Copper Pipe
22	Plate, Damper
23	Cushion, Mtr
