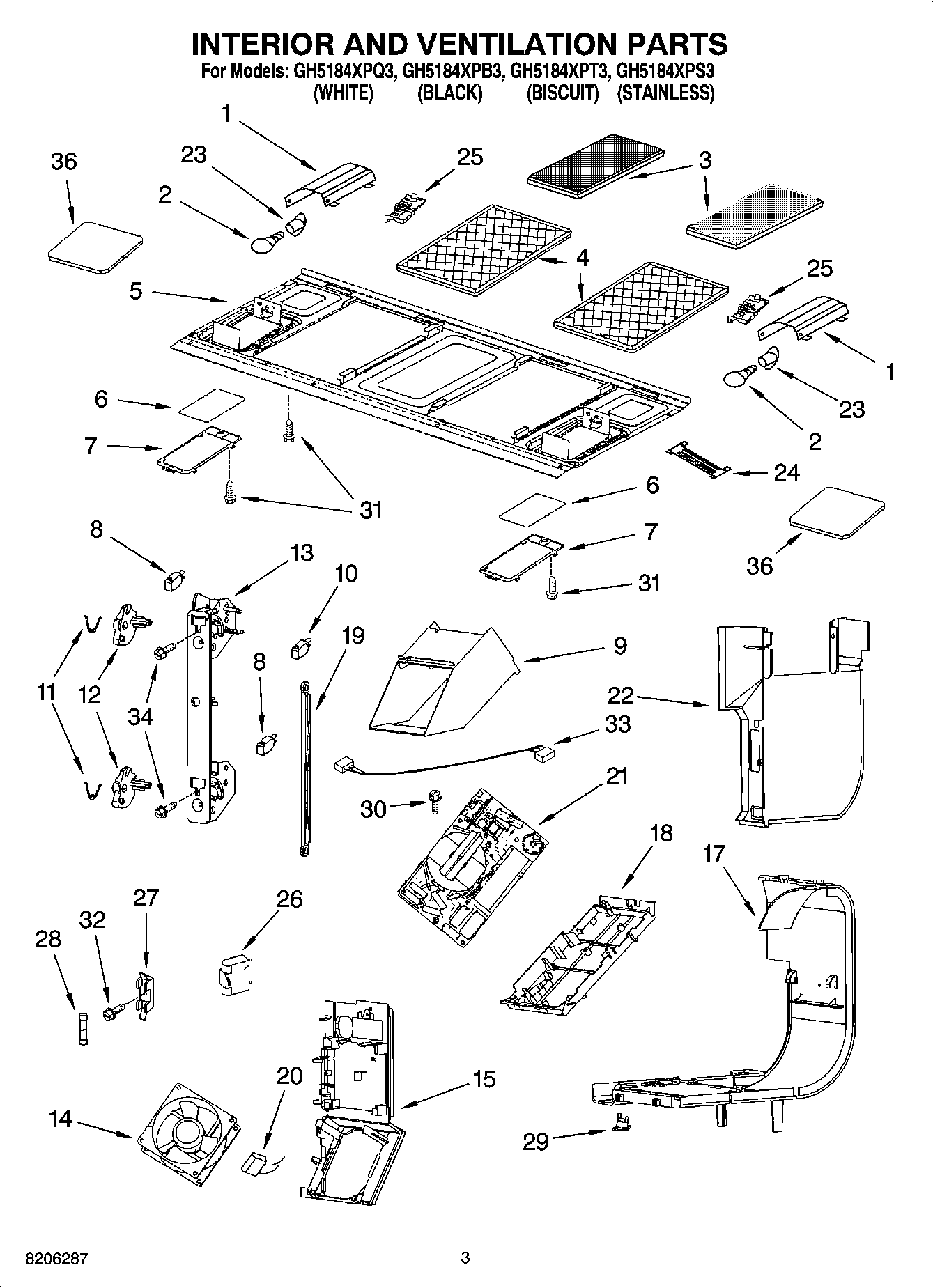

GH5184XPS3 03 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1Reflector, Lamp
28206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3W10112514A Whirlpool Microwave Vent Hood Charcoal Filter
4W10113040A Whirlpool Grease Filter Aluminum
5Plate, Bottom
6Glass, Lamp
7Holder, Glass
8W10211974 Whirlpool Microwave Door Interlock Micro Switch
9Cover, Inverter
10W10211972 Whirlpool Microwave Switch
11Spring, Interlock
12Plate, Cam
13Support, Interlock
14Fan, DC 12 V
15Housing, Fan
17Bracket, Holder
18Holder, Inverter
19Rod-Locking Link
20Capacitor, 125 V
21W10217710 Whirlpool Microwave Inverter
22Plate, Side
23Holder, Lamp
24Cable
25Cover, Terminal
26Capacitor
27Holder, Fuse
28FUSE-THRML
29Thermostat
30SCREW
31W11380570 Whirlpool Microwave Screw
32SCREW
33W10615910 Whirlpool Microwave Wire Harness
348169479 Whirlpool Microwave Screw
36Foil, Lamp
