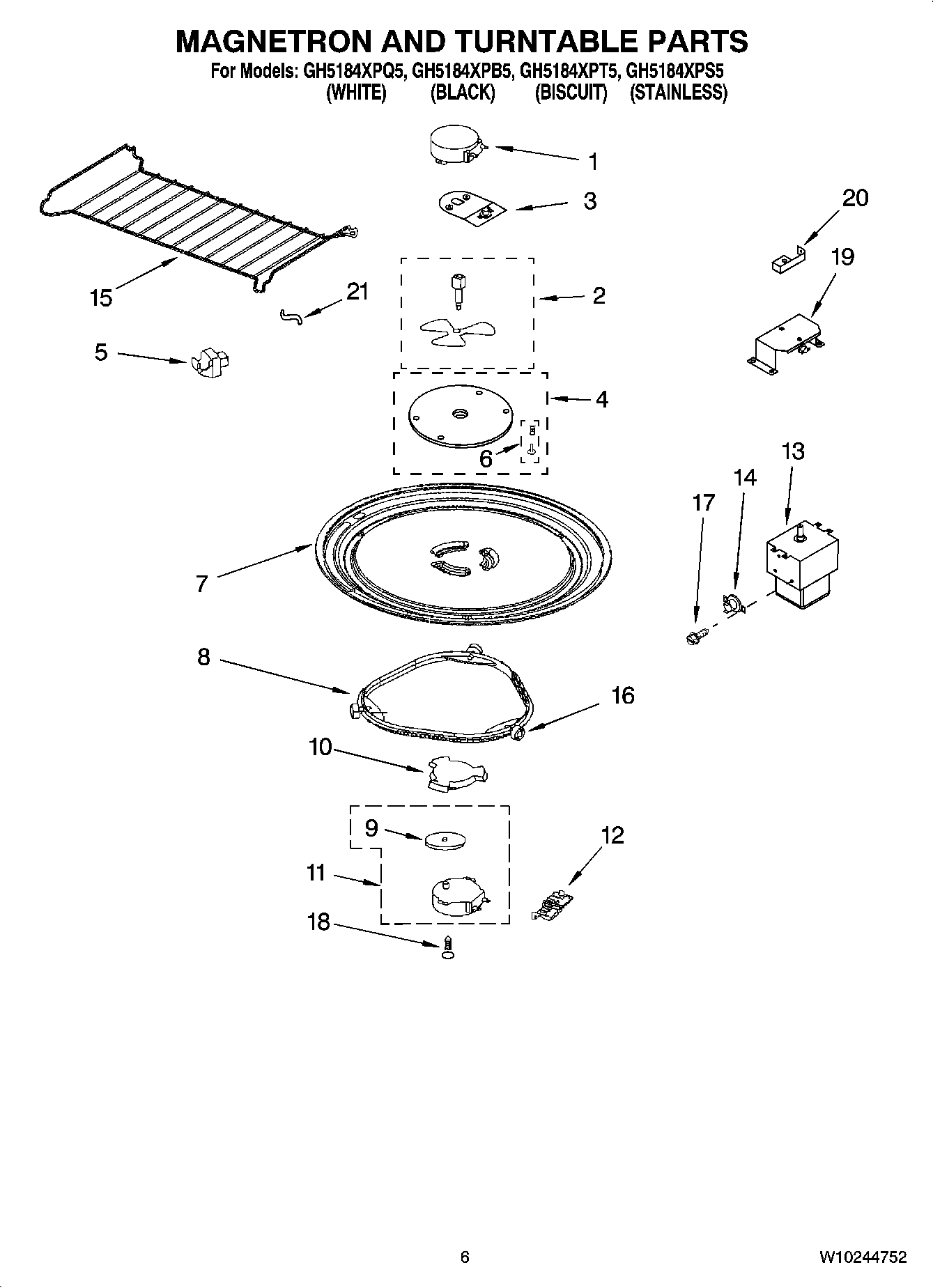

GH5184XPS5 05 – MAGNETRON AND TURNTABLE PARTS

Products

Position	Product
1	Motor, Stirrer
2	Stirrer Shaft/Blade
3	Thermostat/Bracket
4	Cover, Inlet
5	W10315274 Whirlpool Microwave Meal Rack
6	Bushings (4 of each)
7	4393799 Whirlpool Microwave Glass Tray
8	W11252182 Whirlpool Glass Tray Support
9	8184109 Whirlpool Microwave Spacer
10	W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
11	W10642989 Whirlpool Microwave Oven Turntable Motor
12	Cover, Terminal
13	8206317 Whirlpool Microwave Magnetron
14	Thermostat
15	Rack
16	Wheel, Plastic
17	Screw
18	4393832 Whirlpool Microwave Screw
19	TCO, Bracket Assembly
20	Bracket, Plug
