GH5184XPT4 05 – MAGNETRON AND TURNTABLE PARTS

GH5184XPT4 05 – MAGNETRON AND TURNTABLE PARTS

Written by

in

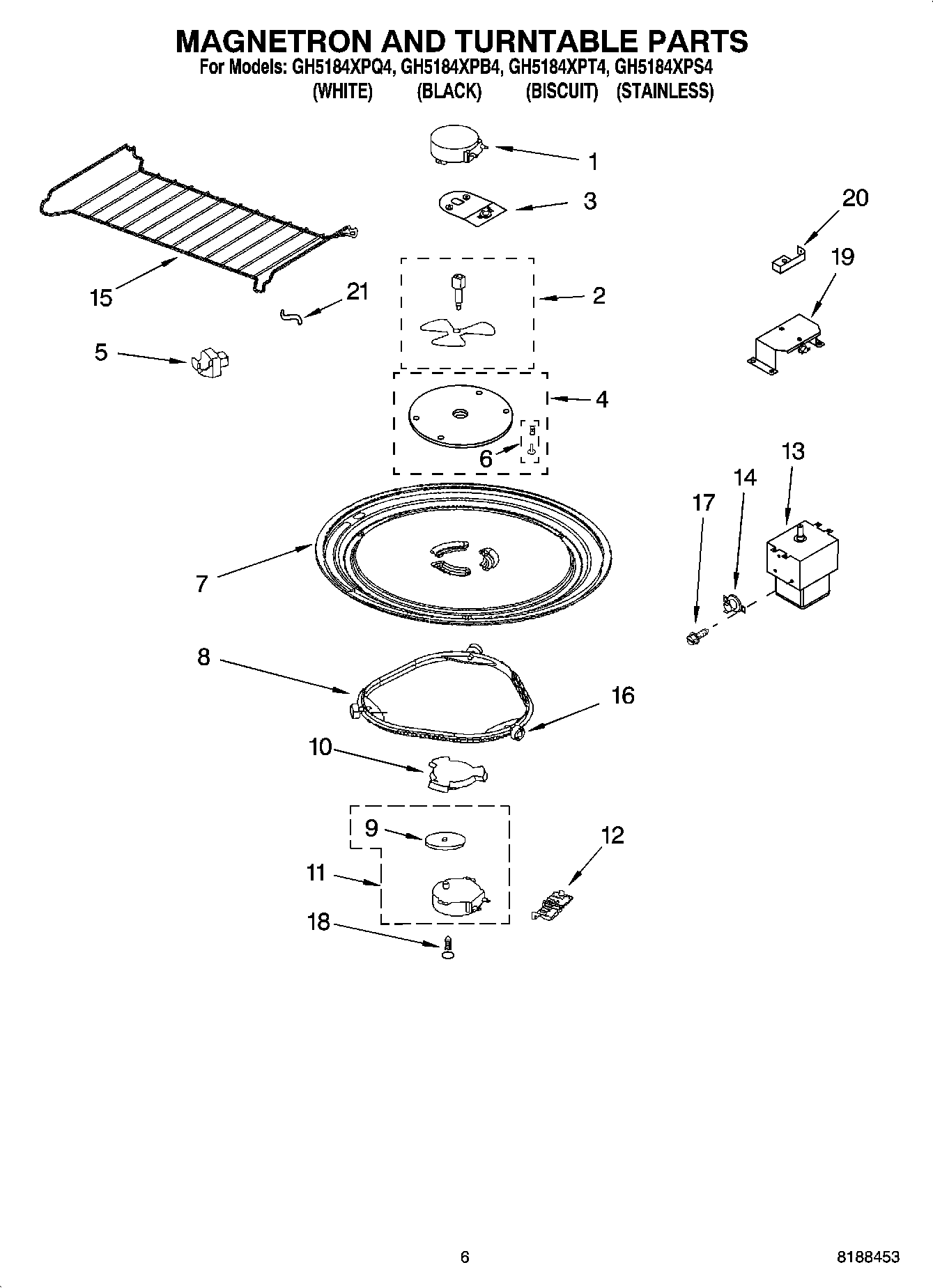

GH5184XPT4 05 – MAGNETRON AND TURNTABLE PARTS

Products

PositionProduct
1Motor, Stirrer
2Stirrer Shaft/Blade
3Thermostat/Bracket
4Cover, Inlet
5W10315274 Whirlpool Microwave Meal Rack
6Nails/Bushings (4 of each)
74393799 Whirlpool Microwave Glass Tray
8W11252182 Whirlpool Glass Tray Support
98184109 Whirlpool Microwave Spacer
10W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
11W10642989 Whirlpool Microwave Oven Turntable Motor
12Cover, Terminal
138206317 Whirlpool Microwave Magnetron
14Thermostat
15Rack
16Wheel, Plastic
17Screw
184393832 Whirlpool Microwave Screw
19TCO, Bracket Assembly
20Bracket, Plug
