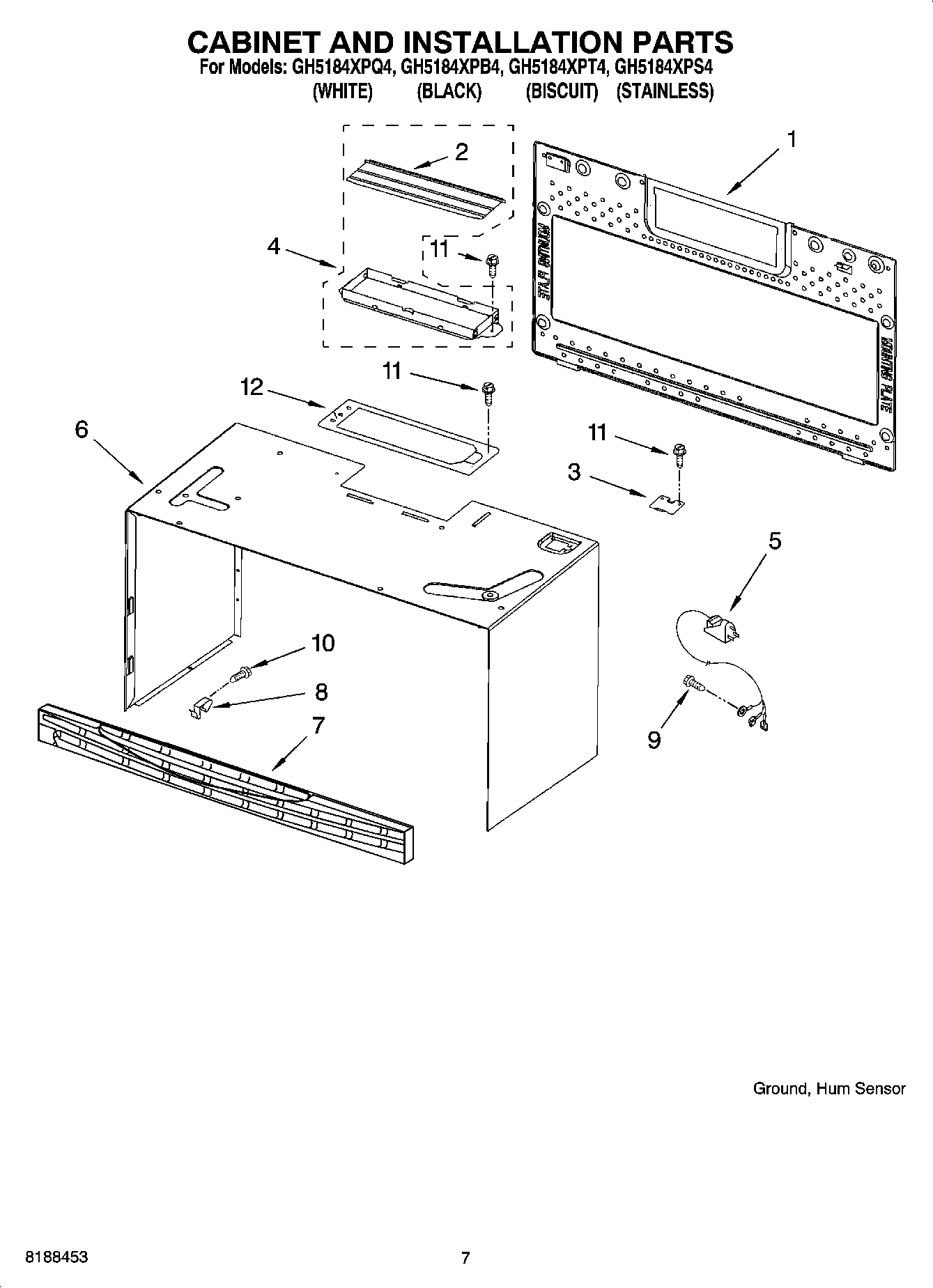

GH5184XPT4 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
1	WPW10269225 Whirlpool Bracket Mounting
2	W10843943 Whirlpool Microwave Vent Damper
3	Lid, Power Cord
5	Cord, Power
6	Case, Outer (White)
6	Case, Outer (Black)
6	Case, Outer (Biscuit)
7	W10450187 Whirlpool Microwave Oven Vent Grille
7	W10450172 Whirlpool Microwave Grille Vent
7	Grille, Vent (Stainless)
7	Grille, Vent (Biscuit)
8	W10615742 Whirlpool Microwave Clip
9	4393836 Whirlpool Microwave Screw
10	Screw
11	W11380570 Whirlpool Microwave Screw
12	Harns-Wire, Main
12	Harns-Wire AC Line Filter
12	Harns-Wire Filter Capacitor
12	Plate, Damper
12	Harns-Wire Lamp/TT
12	Cavity Thrmst 2-3
12	WP8169704 Whirlpool Screw
12	W10615910 Whirlpool Microwave Wire Harness
12	(Biscuit)
12	Hardware, Installation
12	H.V. Wire Assy
12	PCBA
12	Inverter, Grnd
12	Cavity Thrmst 1-2
12	Wre-Grnd Hum Snsr
12	Miscellaneous
