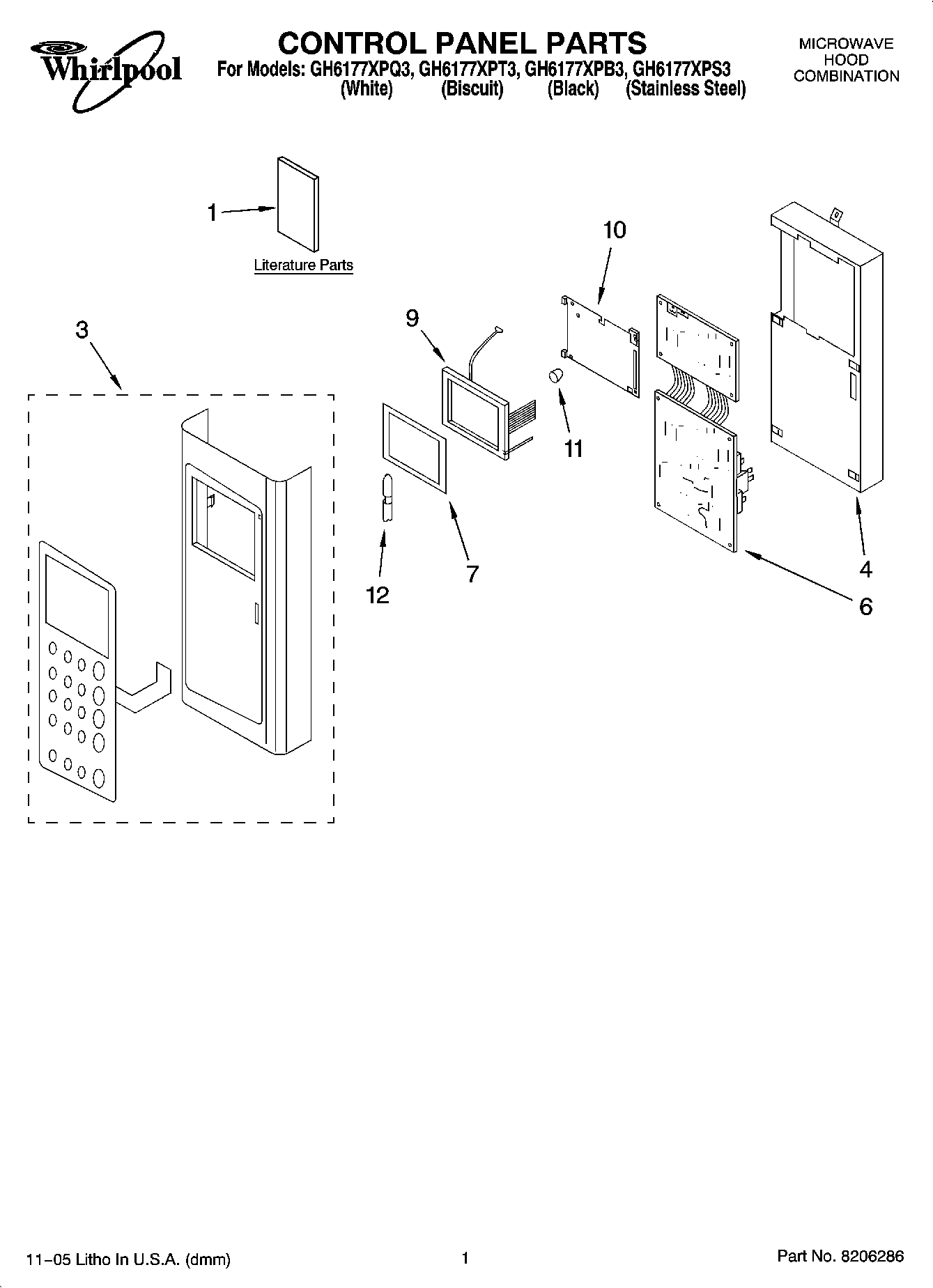

GH6177XPB3 01 – CONTROL PANEL PARTS

Products

Position	Product
1	Use & Care Guide
1	Tech Sheet
1	Installation Instructions
1	Cook Guide Label
1	Cook Book
3	Control Panel Assembly (Stainless Steel)
3	Control Panel Assembly (Biscuit)
3	Control Panel Assembly (Black)
3	Control Panel Assembly (White)
4	Bracket, Control
6	Microcomputer
7	Ring, Rubber
9	LCD Assembly
10	Bracket, LCD
11	Bushing, Rubber
12	Sensor, Light Lens
