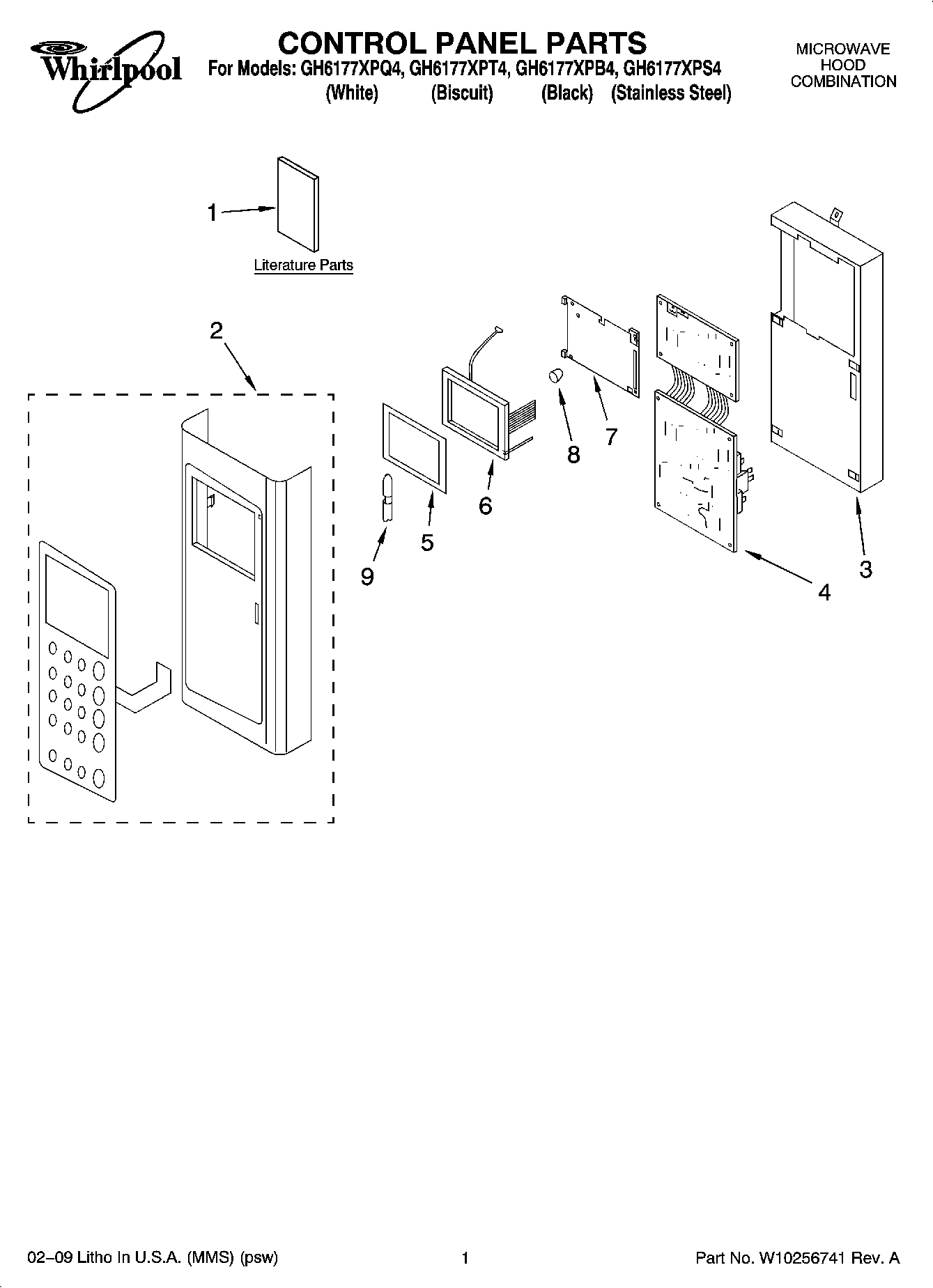

GH6177XPB4 01 – CONTROL PANEL PARTS

GH6177XPB4 01 – CONTROL PANEL PARTS

Written by

in

GH6177XPB4 01 – CONTROL PANEL PARTS

Products

PositionProduct
1Use & Care Guide
1Tech Sheet
1Cook Book
1Cook Guide Label
2Control Panel Assembly (Black)
2Control Panel Assembly (Biscuit)
2Control Panel Assembly (White)
2Control Panel Assembly (Stainless Steel)
3Bracket, Control
4Microcomputer
5Ring, Rubber
6LCD Assembly
7Bracket, LCD
8Bushing, Rubber
9Sensor, Light Lens
