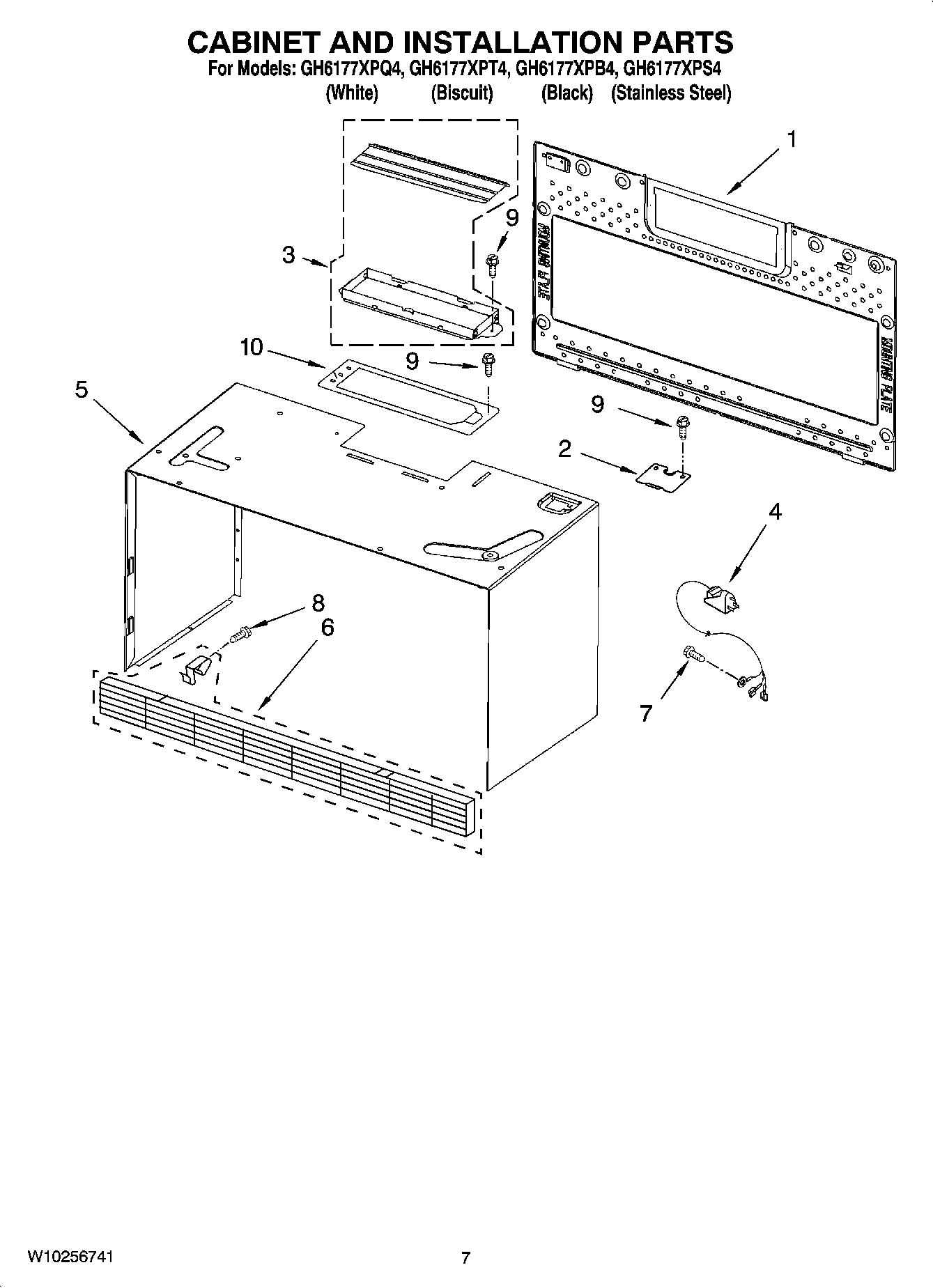

GH6177XPB4 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
	Miscellaneous
	Wre-Grnd Hum Snsr
	Harns-Wire, Grill
	Wire, Stirrer
	Socket-Lmp
	Harness from Magnetron to
	Supply, Power
	Main
	Cavity Thrmst 2-3
	Harness, Wire
	Cavity Thrmst 1-2
	Inverter, Grnd
	PCBA
	WP8169704 Whirlpool Screw
	(Biscuit)
	Hardware, Installation
1	Plate, Mounting
2	Lid, Power Cord
3	Damper Assembly
4	Cord, Power
5	Case, Outer (White)
5	Case, Outer (Biscuit)
5	Case, Outer (Black)
6	W10450172 Whirlpool Microwave Grille Vent
6	W10450187 Whirlpool Microwave Oven Vent Grille
6	Grille, Vent (Biscuit)
6	Grille, Vent (Stainless)
7	Screw
8	Screw
9	W11380570 Whirlpool Microwave Screw
10	Plate, Damper
