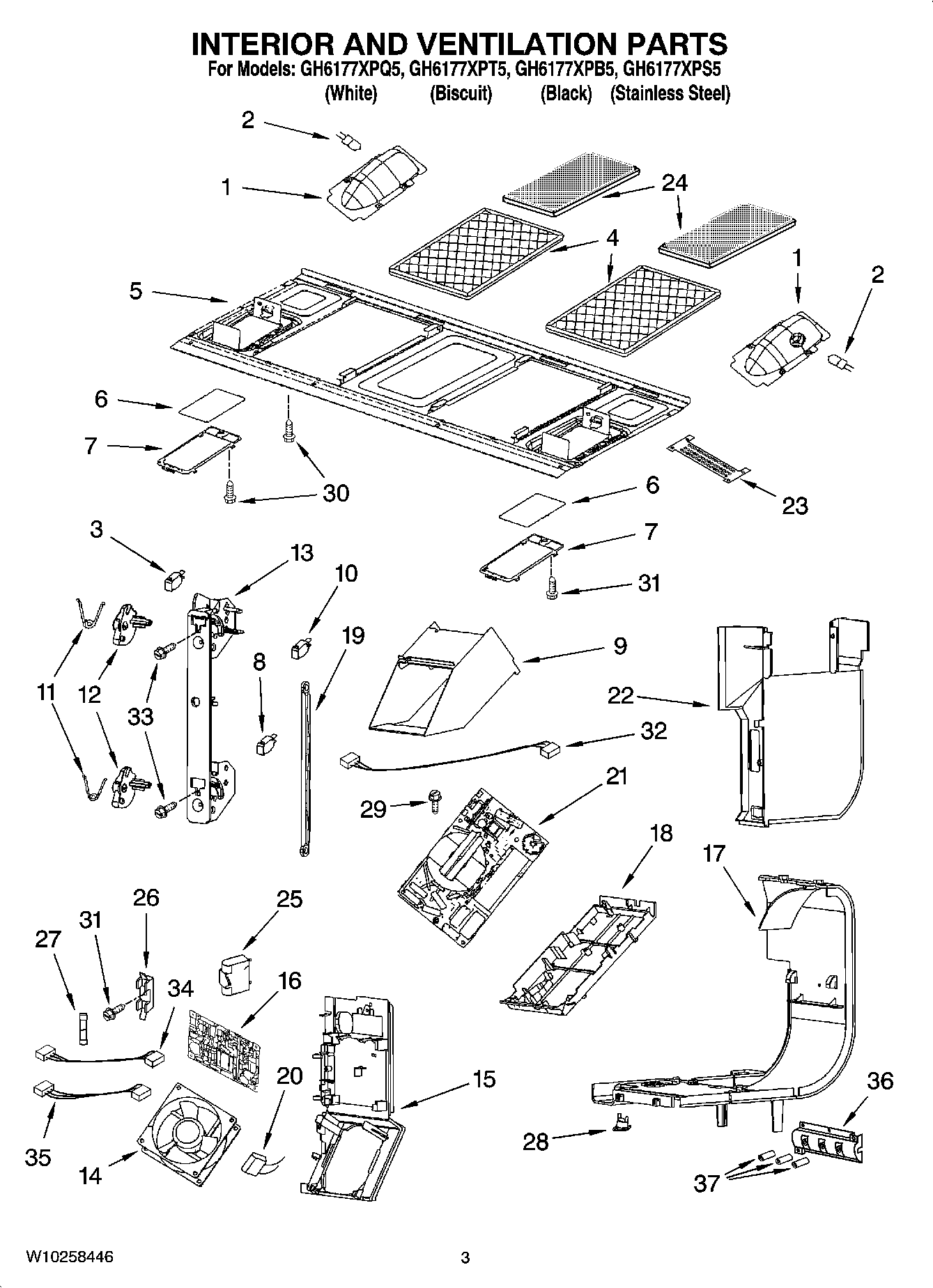

GH6177XPB5 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	Reflector, Lamp (Left)
1	Reflector, Lamp (Right)
2	8204670 Whirlpool Microwave Halogen Lamp 10W 12V
3	W10269458 Whirlpool Microwave Door Switch
4	W10113040A Whirlpool Grease Filter Aluminum
5	Plate, Bottom
6	Glass, Lamp
7	Holder, Glass
8	W10211972 Whirlpool Microwave Switch
9	Cover, Inverter
10	W10211974 Whirlpool Microwave Door Interlock Micro Switch
11	Spring, Interlock
12	Plate, Cam
13	Support, Interlock
14	Fan, DC 12 V
15	Housing, Fan
16	Inverter 40 W
17	Bracket, Holder
18	Holder, Inverter
19	Rod-Locking Link
20	Capacitor, 125 V
21	W10217710 Whirlpool Microwave Inverter
22	Plate, Side
23	Cable
24	W10112514A Whirlpool Microwave Vent Hood Charcoal Filter
25	Capacitor
26	HOLDER, FUSE
27	FUSE-THRML
28	Thermostat
29	SCREW
30	W11380570 Whirlpool Microwave Screw
31	SCREW
32	W10615910 Whirlpool Microwave Wire Harness
33	8169479 Whirlpool Microwave Screw
34	P27 to CN153
35	P4 to CN151
36	Brkt-Support Ferrite Holder
37	Ferrite Ring
