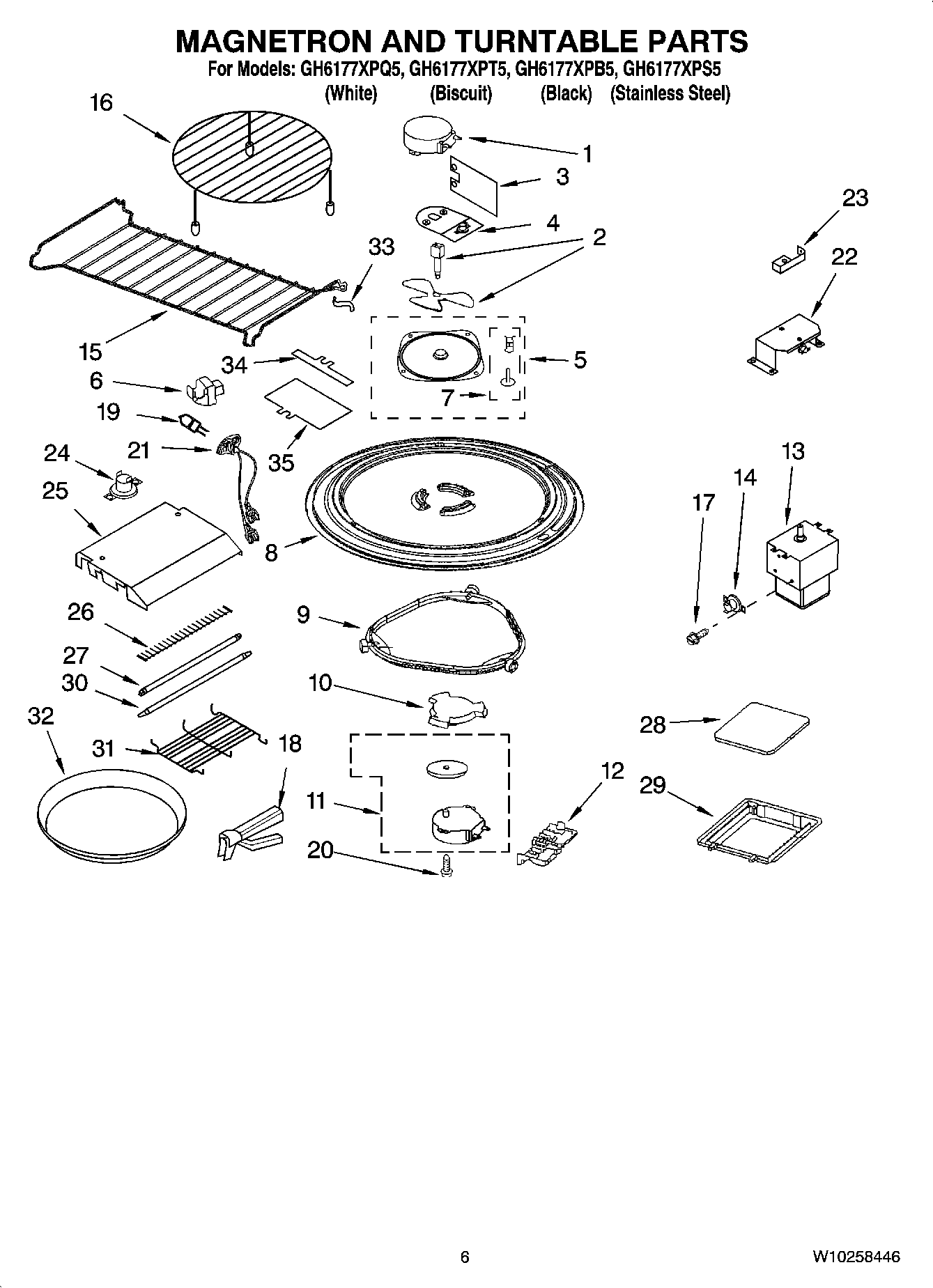

GH6177XPB5 05 – MAGNETRON AND TURNTABLE PARTS

Products

Position	Product
1	Motor, Stirrer
2	Stirrer Shaft/Blade
3	Shield, Nomex
4	Thermostat/Bracket
5	Cover, Inlet Includes Nails and Bushings
6	W10840794 Whirlpool Clip
6	W10840795 Whirlpool Microwave Support
6	W10840759 Whirlpool Microwave Support
7	Bushings (4 of each)
8	4393799 Whirlpool Microwave Glass Tray
9	W11252182 Whirlpool Glass Tray Support
10	W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
11	W10642989 Whirlpool Microwave Oven Turntable Motor
12	Cover, Terminal
13	8206317 Whirlpool Microwave Magnetron
14	Thermostat
15	Rack
16	Grill
17	Screw
18	W10851464 Whirlpool Microwave Handle Panel
19	8204670 Whirlpool Microwave Halogen Lamp 10W 12V
20	4393832 Whirlpool Microwave Screw
21	Socket, Halogen Light
22	TCO, Bracket Assembly
23	Bracket, Plug
24	Thermostat
25	Grill, Insulation Plate
26	WP8184837 Whirlpool Microwave Element
27	W10510202 Whirlpool Microwave Light Bulb
28	Glass, Lamp
29	Frame, Glass
30	WPW10510203 Whirlpool Microwave Heater
31	Cover, Protector
32	W10748097 Whirlpool Microwave Crisp Pan
33	W10315274 Whirlpool Microwave Meal Rack
34	Shield, Front
35	Shield, Rear
