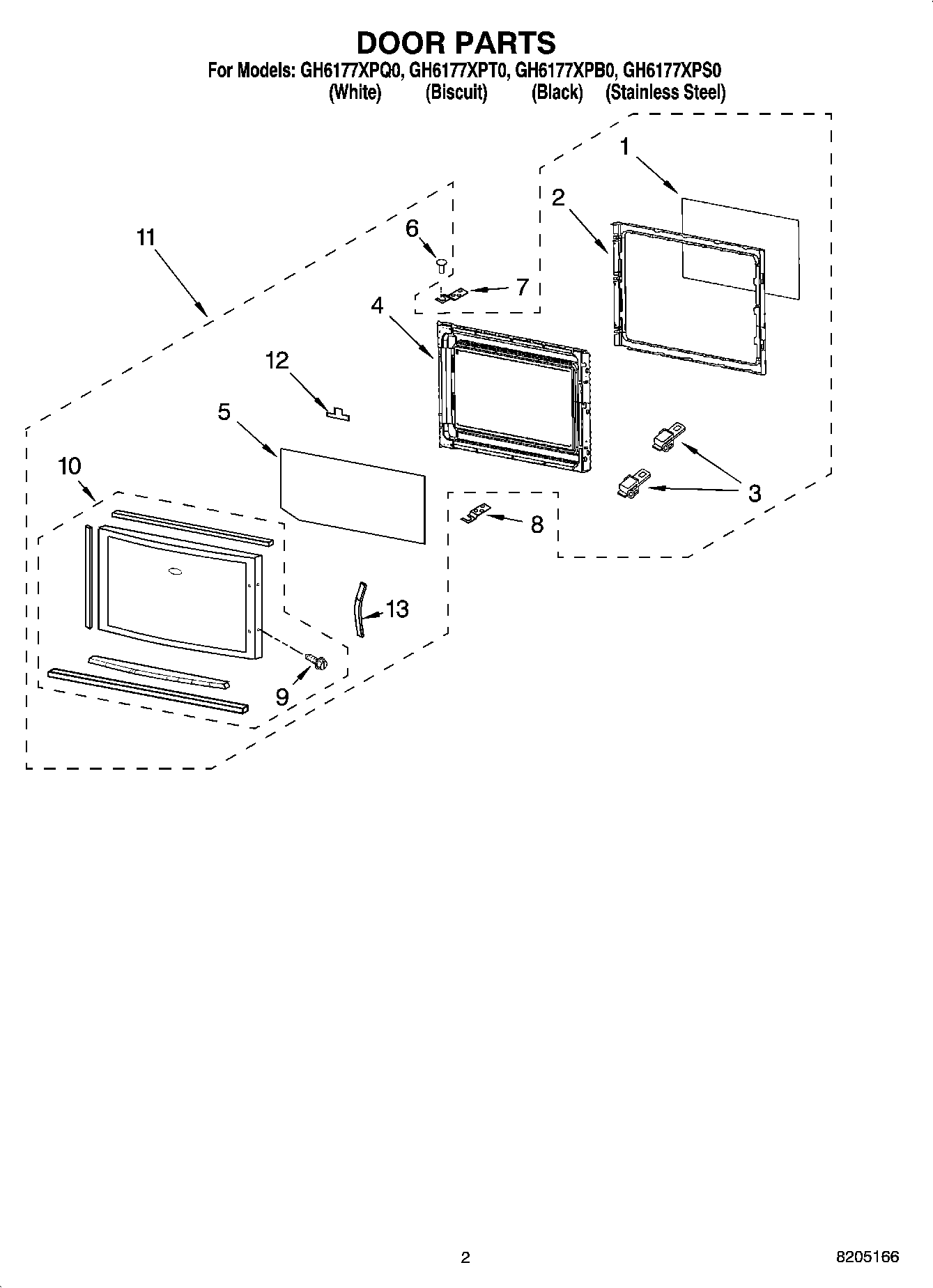

GH6177XPQ0 02 – DOOR PARTS

Products

Position	Product
1	Film, Back Included with 4
2	Frame, Inner
3	Latch, Door
4	Body Asy, Door Includes 1 (Biscuit)
4	Body Asy, Door Includes 1 (White)
4	Body Asy, Door Includes 1 (Black)
5	Glass, Outer
6	Pivot, Door
7	Upper Hinge
8	Lower Hinge
9	8169479 Whirlpool Microwave Screw
10	Frame Asy, Outer (Stainless Steel)
10	Frame Asy, Outer (Biscuit)
10	Frame Asy, Outer (Black)
10	Frame Asy, Outer (White)
11	Complete Door (White)
11	Complete Door (Black)
11	Complete Door (Biscuit)
11	Complete Door (Stainless Steel)
12	Bracket, Door Glass
13	W10246505 Whirlpool Microwave Door Handle
13	Handle, Door (Stainless)
13	Handle, Door (Biscuit)
13	Handle, Door (White)
