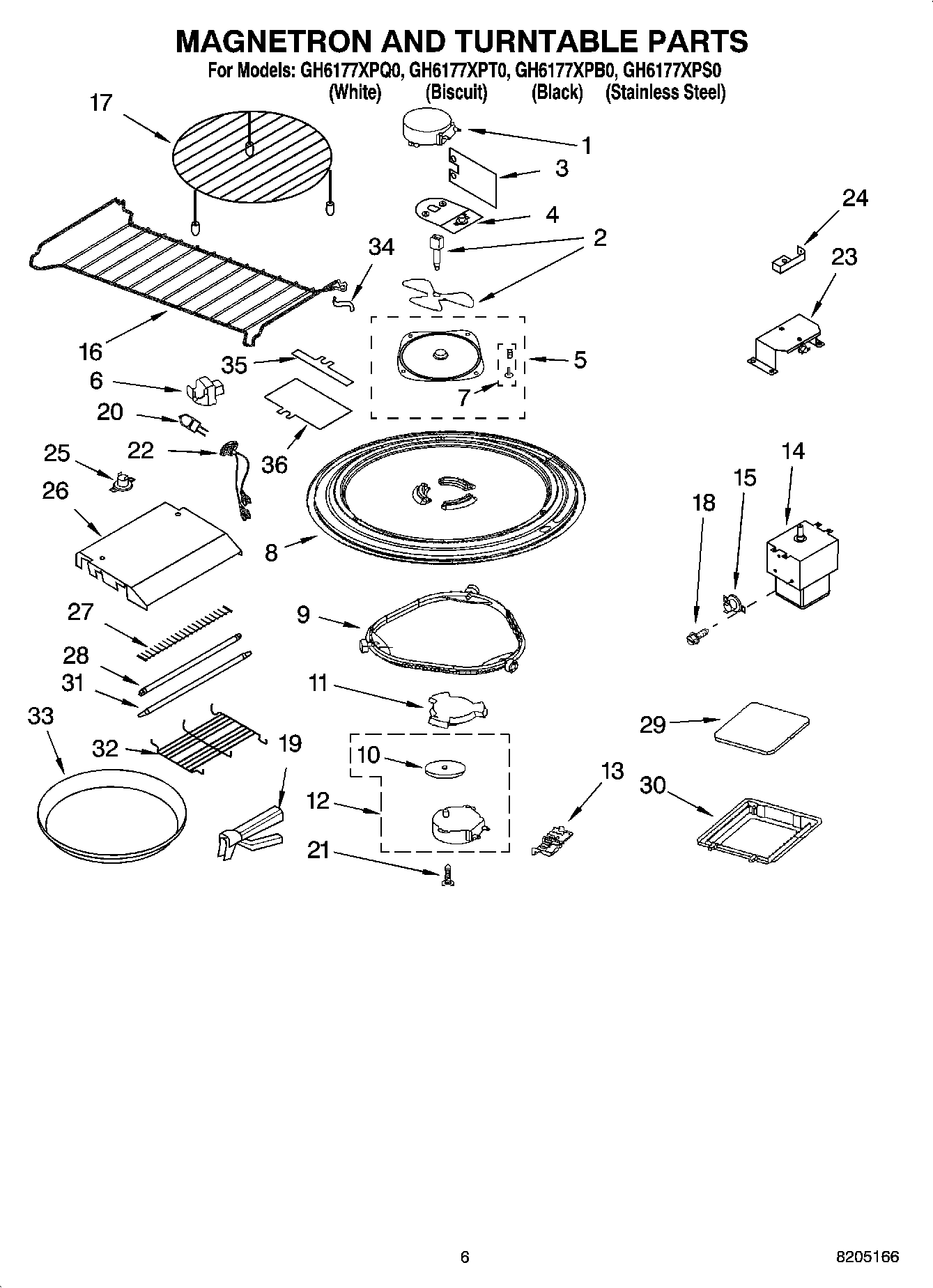

GH6177XPQ0 05 – MAGNETRON AND TURNTABLE PARTS

Products

PositionProduct
1Motor, Stirrer
2Stirrer Shaft/Blade
3WP8184485 Whirlpool Microwave Shield
4Thermostat And Bracket
5Cover, Inlet Includes Nails and Bushings
6W10315274 Whirlpool Microwave Meal Rack
7Nails/Bushings (4 of each)
84393799 Whirlpool Microwave Glass Tray
9W11252182 Whirlpool Glass Tray Support
108184109 Whirlpool Microwave Spacer
11W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
12W10642989 Whirlpool Microwave Oven Turntable Motor
13Cover, Terminal
148206317 Whirlpool Microwave Magnetron
15Thermostat
17Grill
18Screw
19W10851464 Whirlpool Microwave Handle Panel
208204670 Whirlpool Microwave Halogen Lamp 10W 12V
214393832 Whirlpool Microwave Screw
22Socket, Halogen Light
23Thermostat/Bracket
24Bracket, Plug
25Thermostat
26Grill, Insulation Plate
27WP8184837 Whirlpool Microwave Element
28W10510202 Whirlpool Microwave Light Bulb
29Glass, Lamp
30Frame, Glass
31WPW10510203 Whirlpool Microwave Heater
32Cover, Protector
33W10748097 Whirlpool Microwave Crisp Pan
35Insulation, Front
36Insulation, Rear
