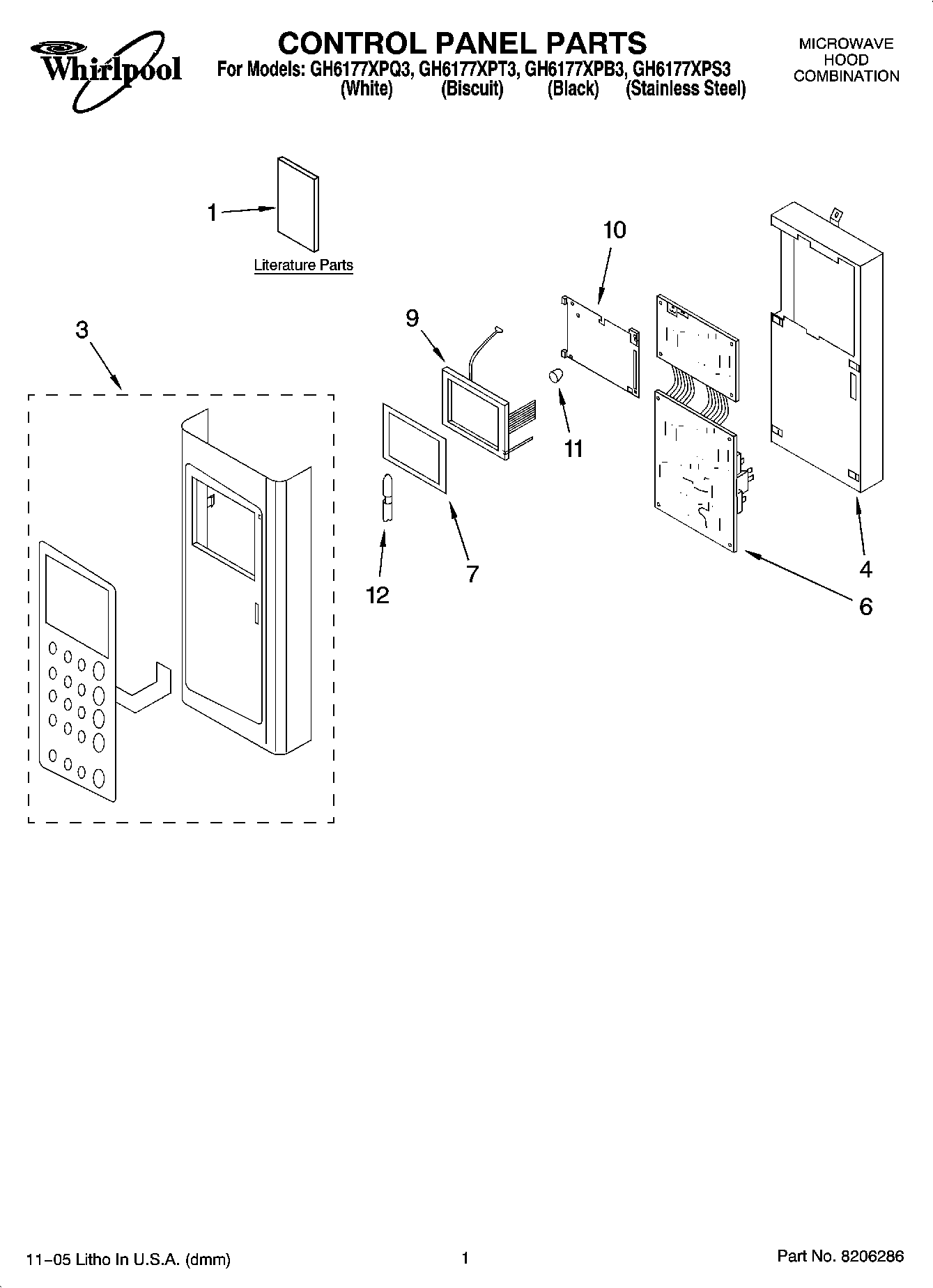

GH6177XPQ3 01 – CONTROL PANEL PARTS

GH6177XPQ3 01 – CONTROL PANEL PARTS

Written by

in

GH6177XPQ3 01 – CONTROL PANEL PARTS

Products

PositionProduct
1Use & Care Guide
1Tech Sheet
1Installation Instructions
1Cook Guide Label
1Cook Book
3Control Panel Assembly (Stainless Steel)
3Control Panel Assembly (Biscuit)
3Control Panel Assembly (Black)
3Control Panel Assembly (White)
4Bracket, Control
6Microcomputer
7Ring, Rubber
9LCD Assembly
10Bracket, LCD
11Bushing, Rubber
12Sensor, Light Lens
