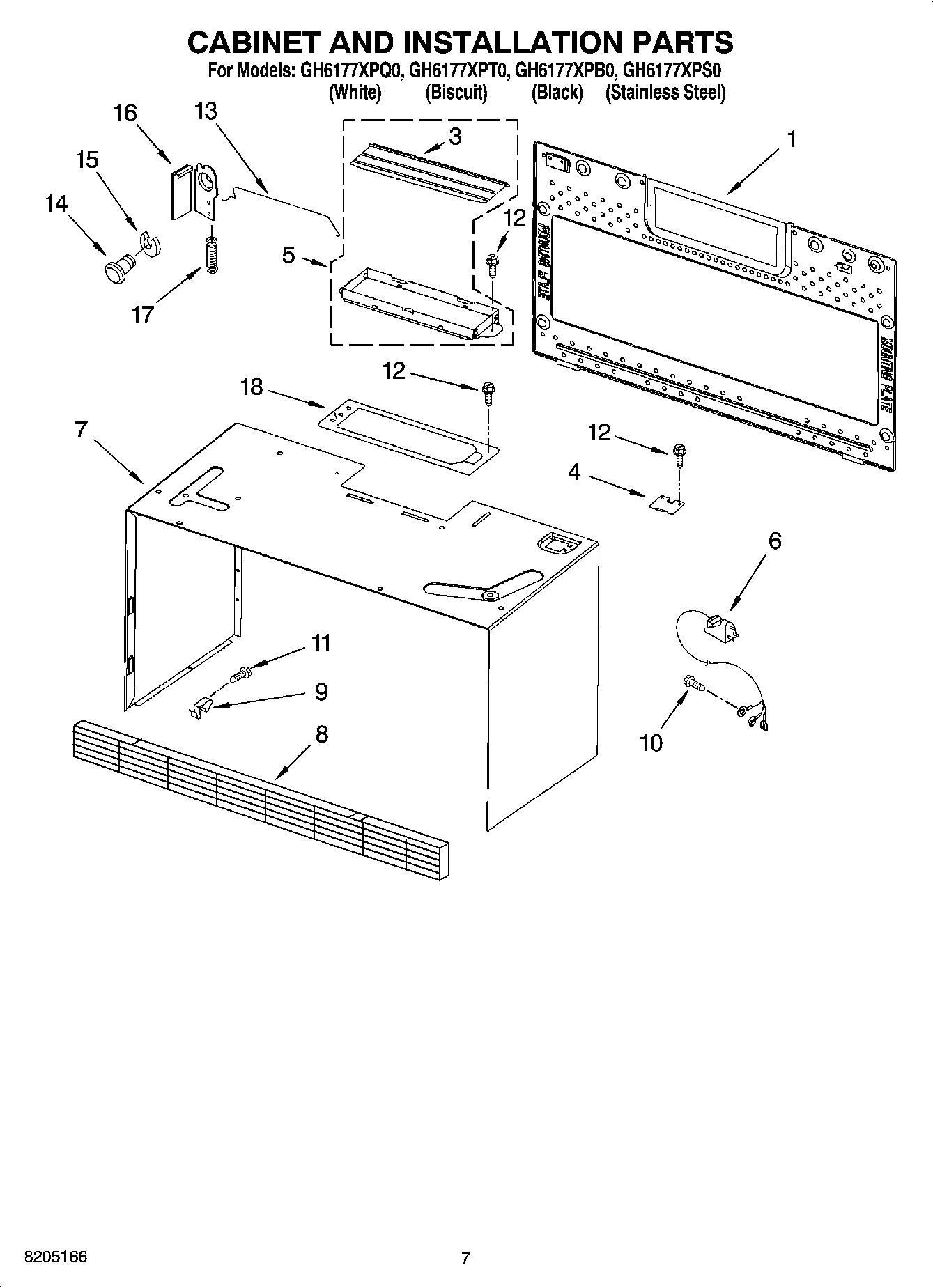

GH6177XPS0 06 – CABINET AND INSTALLATION PARTS

GH6177XPS0 06 – CABINET AND INSTALLATION PARTS

Written by

in

GH6177XPS0 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
1Plate, Mounting
3W10843943 Whirlpool Microwave Vent Damper
4Lid, Power Cord
6Cord, Power
7Case, Outer (Biscuit)
7Case, Outer (Black)
7Case, Outer (White)
8W10450172 Whirlpool Microwave Grille Vent
8W10450187 Whirlpool Microwave Oven Vent Grille
8Grille, Vent (Biscuit)
8Grille, Vent (Stainless)
9W10615742 Whirlpool Microwave Clip
104393836 Whirlpool Microwave Screw
11Screw
12W11380570 Whirlpool Microwave Screw
13Rod
14Latch, Pivot
15E-Ring
16Catch
17Spring
18(Biscuit)
18WP8169704 Whirlpool Screw
18Wire Harness (Includes Light Sockets)
18Plate, Damper
18Hardware, Installation
18Template, Wall
18Miscellaneous
