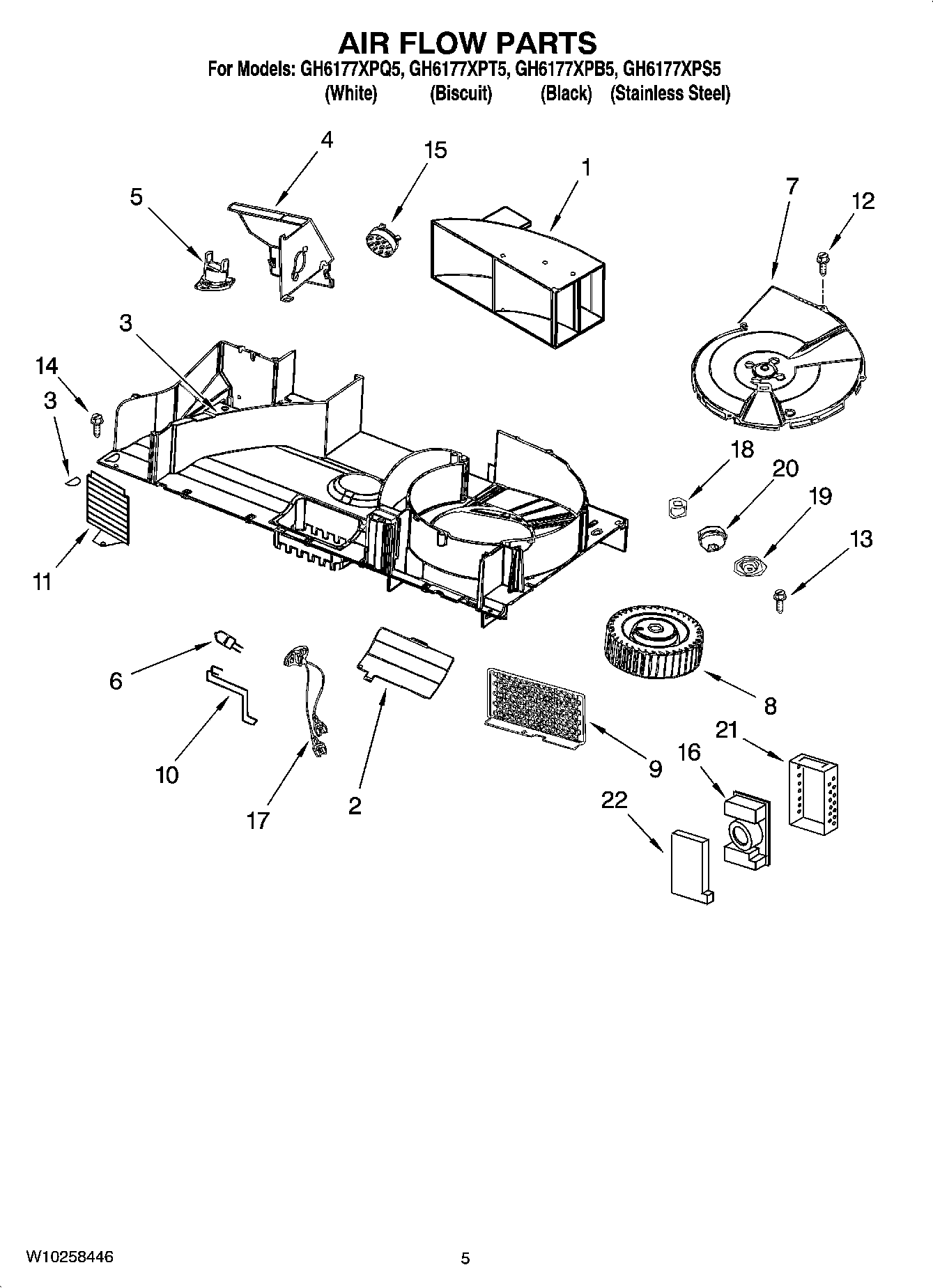

GH6177XPT5 04 – AIR FLOW PARTS

Products

Position	Product
1	Deflector, Air
2	Cover, Lamp
3	Duct, Air
4	Bracket, Thermostat
5	Thermostat
6	8204670 Whirlpool Microwave Halogen Lamp 10W 12V
7	Cover, Motor
8	Motor, Fan Assy
9	Shield
10	Spring
11	SHIELD
12	WP4393834 Whirlpool Microwave Screw
13	SCREW
14	Screw
15	Humidity, Sensor
16	Filter
17	Socket, Halogen Light
18	Spacer, Copper Pipe
19	W10843943 Whirlpool Microwave Vent Damper
20	Cushion, Mtr
21	Holder-Noise Fltr
22	Cvr Plt-NoiseFltr
