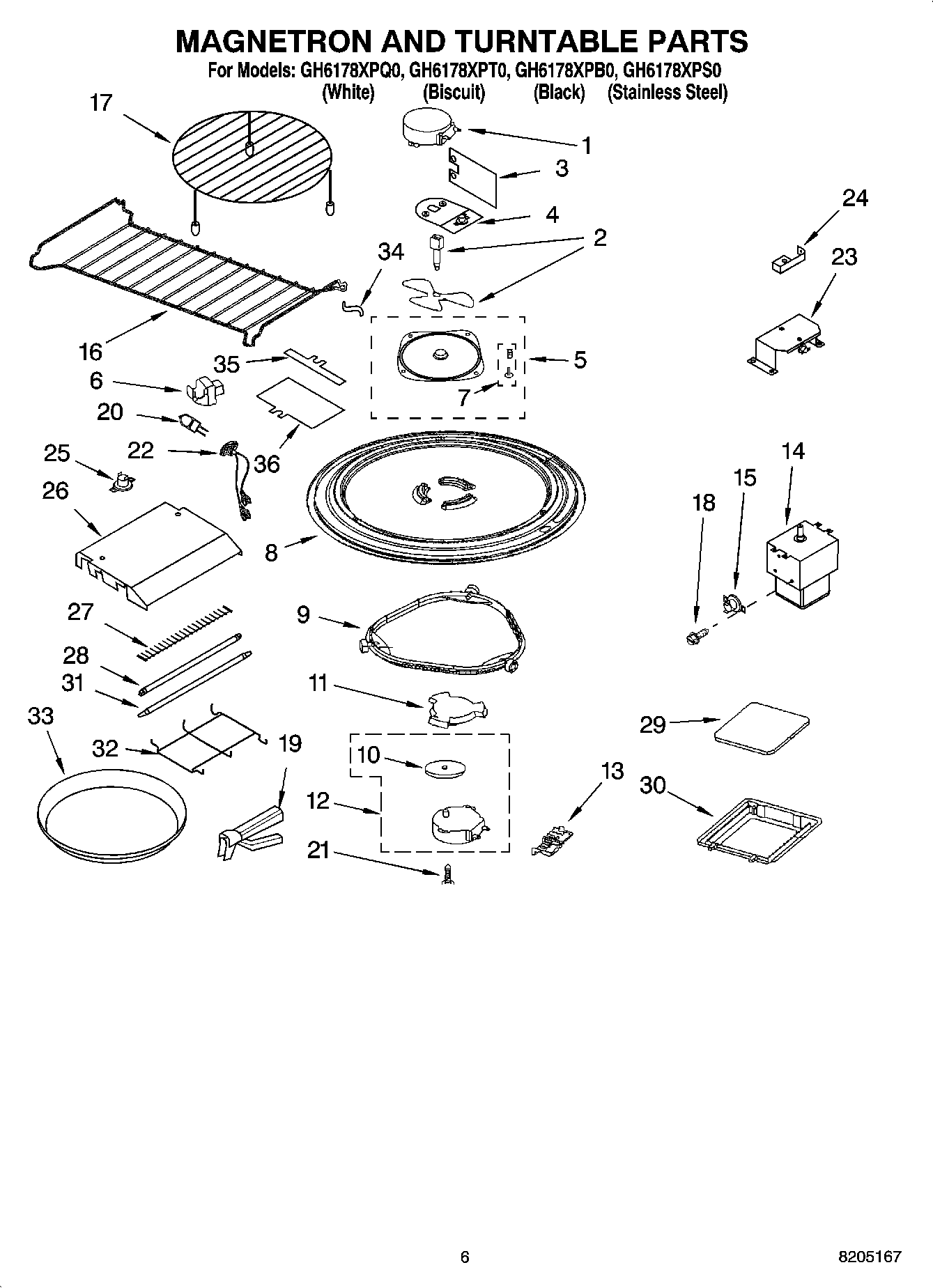

GH6178XPB0 05 – MAGNETRON AND TURNTABLE PARTS

Products

Position	Product
1	Motor, Stirrer
2	Stirrer Shaft/Blade
3	WP8184485 Whirlpool Microwave Shield
4	Thermostat And Bracket
5	Cover, Inlet Includes Nails and Bushings
6	W10315274 Whirlpool Microwave Meal Rack
7	Nails/Bushings (4 of each)
8	4393799 Whirlpool Microwave Glass Tray
9	W11252182 Whirlpool Glass Tray Support
10	8184109 Whirlpool Microwave Spacer
11	W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
12	W10642989 Whirlpool Microwave Oven Turntable Motor
13	Cover, Terminal
14	8206317 Whirlpool Microwave Magnetron
15	Thermostat
17	Grill
18	Screw
19	W10851464 Whirlpool Microwave Handle Panel
20	8204670 Whirlpool Microwave Halogen Lamp 10W 12V
21	4393832 Whirlpool Microwave Screw
22	Socket, Halogen Light
23	Thermostat/Bracket
24	Bracket, Plug
25	Thermostat
26	Grill, Insulation Plate
27	WP8184837 Whirlpool Microwave Element
28	W10510202 Whirlpool Microwave Light Bulb
29	Glass, Lamp
30	Frame, Glass
31	WPW10510203 Whirlpool Microwave Heater
32	Cover, Protector
33	W10748097 Whirlpool Microwave Crisp Pan
35	Insulation, Front
36	Insulation, Rear
