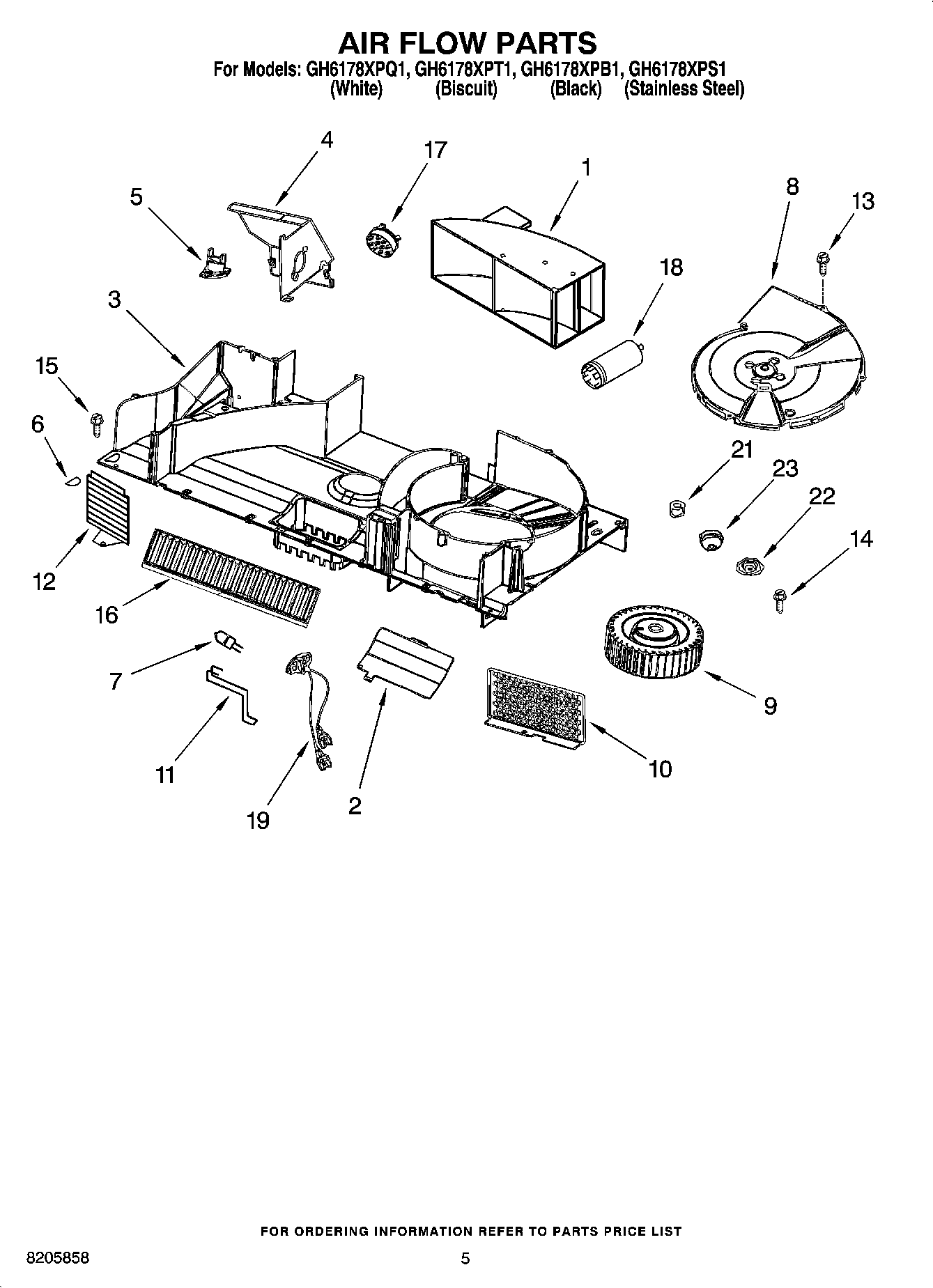

GH6178XPB1 04 – AIR FLOW PARTS

Products

Position	Product
1	Deflector, Air
2	Cover, Lamp
3	Duct, Air
4	Bracket, Thermostat
5	Thermostat
6	Cover
7	8204670 Whirlpool Microwave Halogen Lamp 10W 12V
8	Cover, Motor
9	Motor, Fan Assy
10	Shield
11	Spring
12	Shield
13	WP4393834 Whirlpool Microwave Screw
14	SCREW
15	Screw
16	Filter, Fan Hood
17	Humidity, Sensor
18	Filter
19	Socket, Halogen Light
21	Spacer, Copper Pipe
22	Plate, Damper
23	Cushion, Mtr
