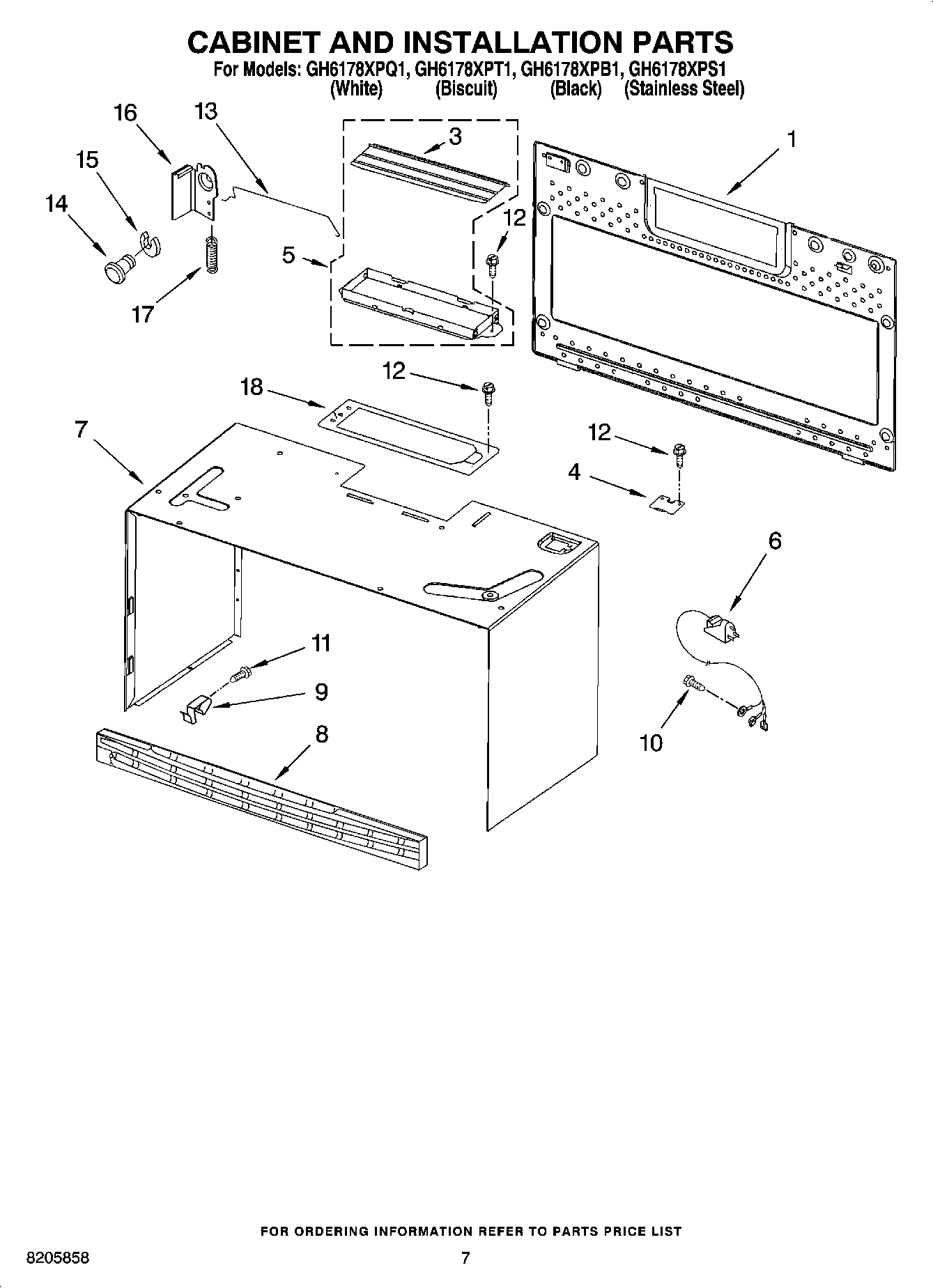

GH6178XPB1 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
1	Plate, Mounting
3	W10843943 Whirlpool Microwave Vent Damper
4	Lid, Power Cord
6	Cord, Power
7	Case, Outer (Biscuit)
7	Case, Outer (Black)
7	Case, Outer (White)
8	Grille, Vent (White)
8	Grille, Vent (Biscuit)
8	Grille, Vent (Black)
8	Grille, Vent (Stainless)
9	W10615742 Whirlpool Microwave Clip
10	4393836 Whirlpool Microwave Screw
11	Screw
12	W11380570 Whirlpool Microwave Screw
13	Rod
14	Latch, Pivot
15	E-Ring
16	Catch
17	Spring
18	WP8169704 Whirlpool Screw
18	8205262RB Whirlpool Refrigerator Crusher Blade #2
18	Wire Harness (Includes Light Sockets)
18	Template, Wall
18	Plate, Damper
18	Hardware, Installation
18	(Biscuit)
18	Miscellaneous
