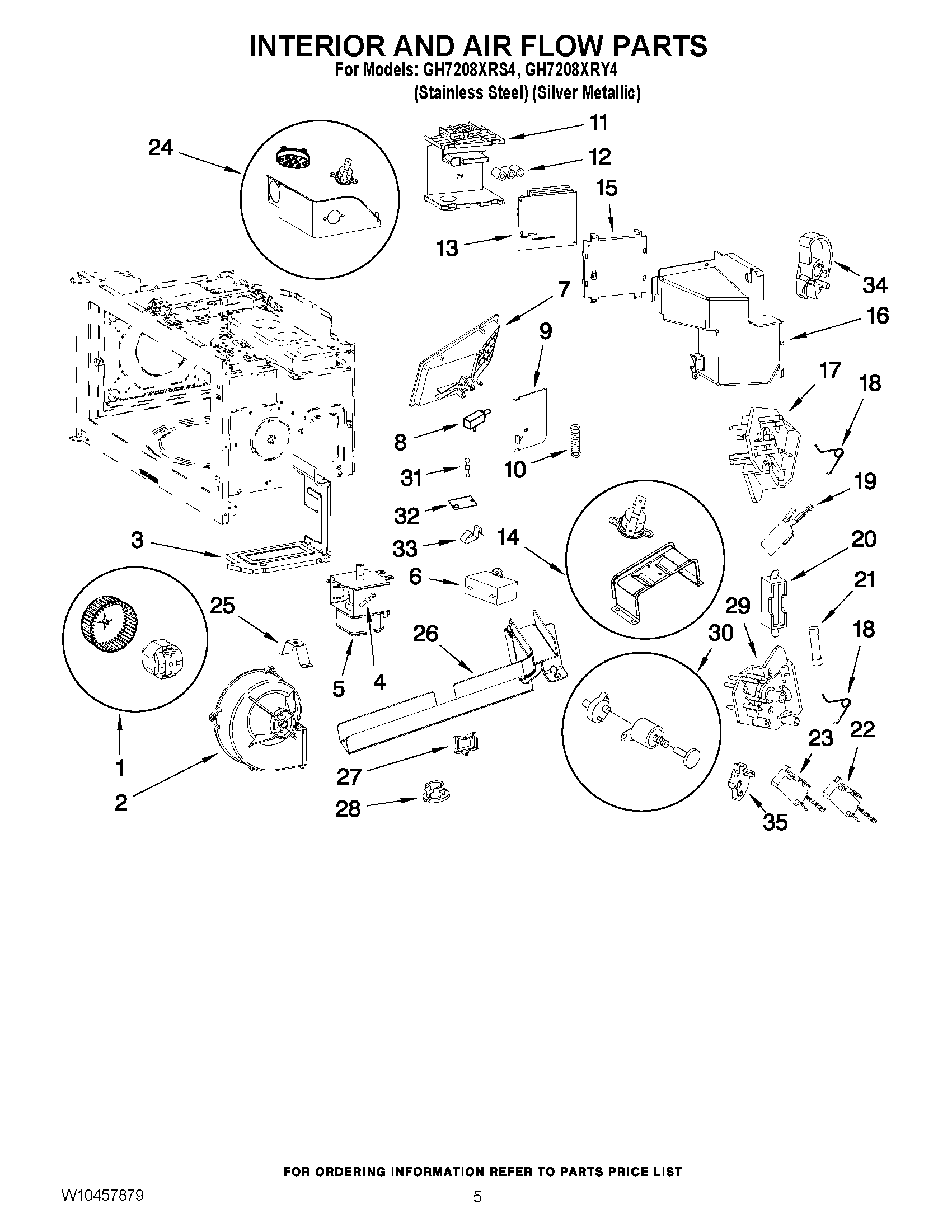

GH7208XRY4 04 – INTERIOR AND AIR FLOW PARTS

Products

Position	Product
1	8206075 Whirlpool Microwave Fan Motor
2	Housing, Fan
3	Plate, Divider
4	W10115577 Whirlpool Microwave Sensor
5	8206079 Whirlpool Microwave Magnetron
6	W11405831 Whirlpool Microwave Capacitor
7	Housing, Valve
8	8206082 Whirlpool Microwave Solenoid
9	Lid, Valve
10	8206084 Whirlpool Spring Assembly
11	COVER, INVERTER
12	FERRITE RING
13	W10217711 Whirlpool Microwave Inverter
14	8206035 Whirlpool Microwave Thermostat
15	HOLDER, INVERTER
16	Air Guide, Magnetron
17	W10143956 Whirlpool Microwave Interlock
18	Spring, Interlock
19	W10211972 Whirlpool Microwave Switch
20	HOLDER, FUSE
21	FUSE-THRML
22	W10269458 Whirlpool Microwave Door Switch
23	W10211974 Whirlpool Microwave Door Interlock Micro Switch
24	Humidity Sensor & Thermostat Assy
25	Support, Air Guide
26	Protector, Wire
27	Clip, Saddle
28	8206038 Whirlpool Clip Assembly
29	8206209 Whirlpool Microwave Interlock Switch
30	Piston Assembly
31	Sensor, Temp
32	Cover
33	8206223 Whirlpool Clip
34	CAM PLATE, UPPER
35	CAM PLATE, LOWER
