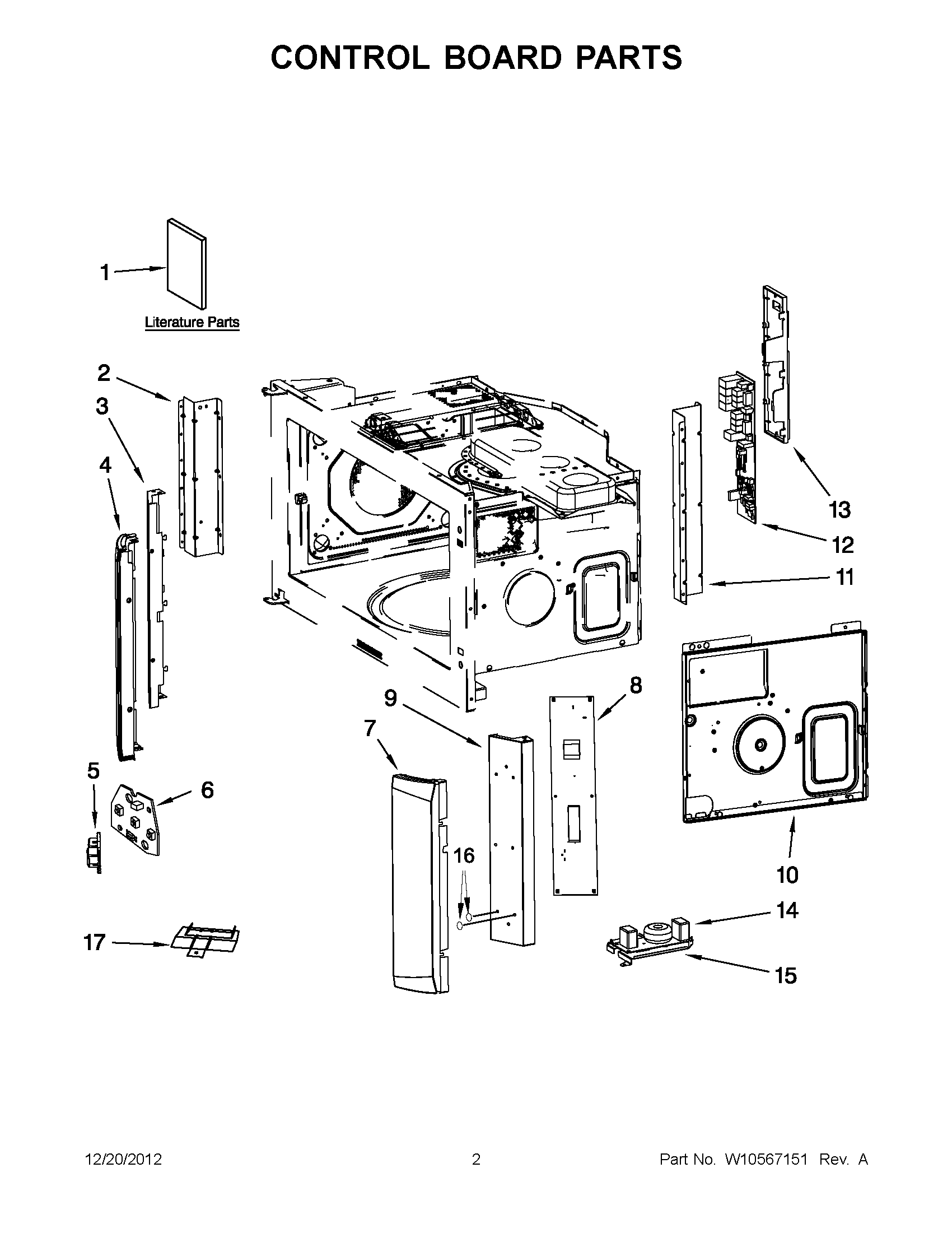

GH7208XRY5 01 – CONTROL BOARD PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1Quick Reference
1Use & Care Guide
1Tech Sheet
2Support, Cavity (Left)
3W10527358 Whirlpool Microwave Plate
4SIDE PANEL, LEFT (STAINLESS STEEL)
5BUTTON (STAINLESS STEEL)
6Hood/Light Switch Board
7SIDE PANEL, RIGHT (STAINLESS STEEL)
8Control Board, (Relay)
9Plate, Protection (Right)
10Plate, Chassis
11Support, Cavity (Right)
12Board, Relay
13HOLDER, MICROCOMPUTER
14AC Line Filter
15Holder, Filter
16Spacer (6)
17W10113783 Whirlpool Microwave Resistor
