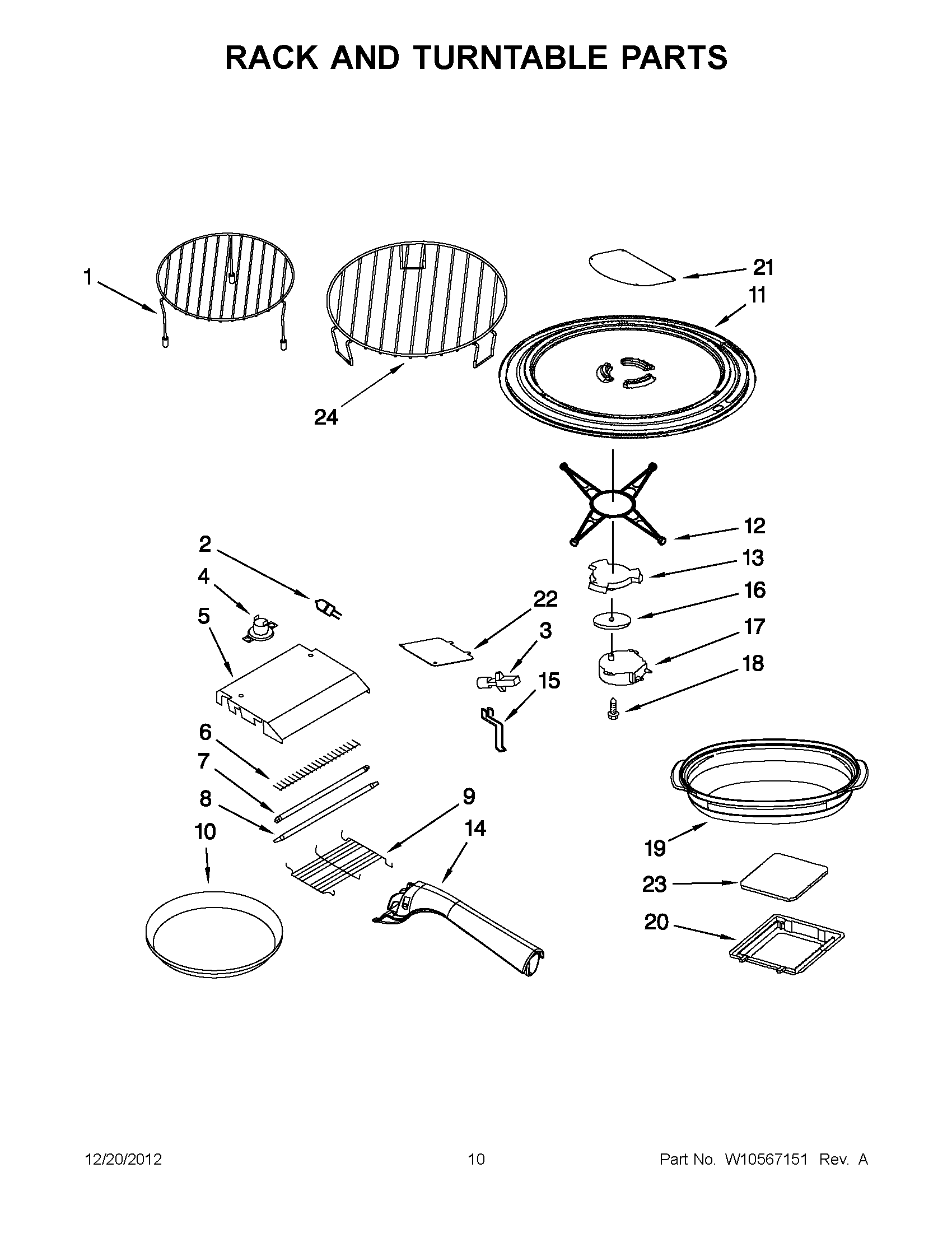

GH7208XRY5 05 – RACK AND TURNTABLE PARTS

Products

Position	Product
1	Rack, Grill
2	8204670 Whirlpool Microwave Halogen Lamp 10W 12V
3	Holder, Lamp
4	W11553234 Whirlpool Microwave Magnetron Thermostat 145C/105C
5	Cover, Insulation (Grill)
6	WP8184837 Whirlpool Microwave Element
7	W10510202 Whirlpool Microwave Light Bulb
8	WPW10510203 Whirlpool Microwave Heater
9	Cover, Protector
10	W10748097 Whirlpool Microwave Crisp Pan
11	8205992 Whirlpool Microwave Cook Tray
12	Ring, Turntable
13	8205994 Whirlpool Microwave Support
14	W10851464 Whirlpool Microwave Handle Panel
15	Clip, Cavity Lamp
16	8184109 Whirlpool Microwave Spacer
17	W11661547 Whirlpool Turntable Motor
18	4393832 Whirlpool Microwave Screw
19	8205262RB Whirlpool Refrigerator Crusher Blade #2
20	Frame, Glass
21	Cover, Inlet
22	Lid, Lamp
23	Glass, Lamp
24	Rack, Convection
