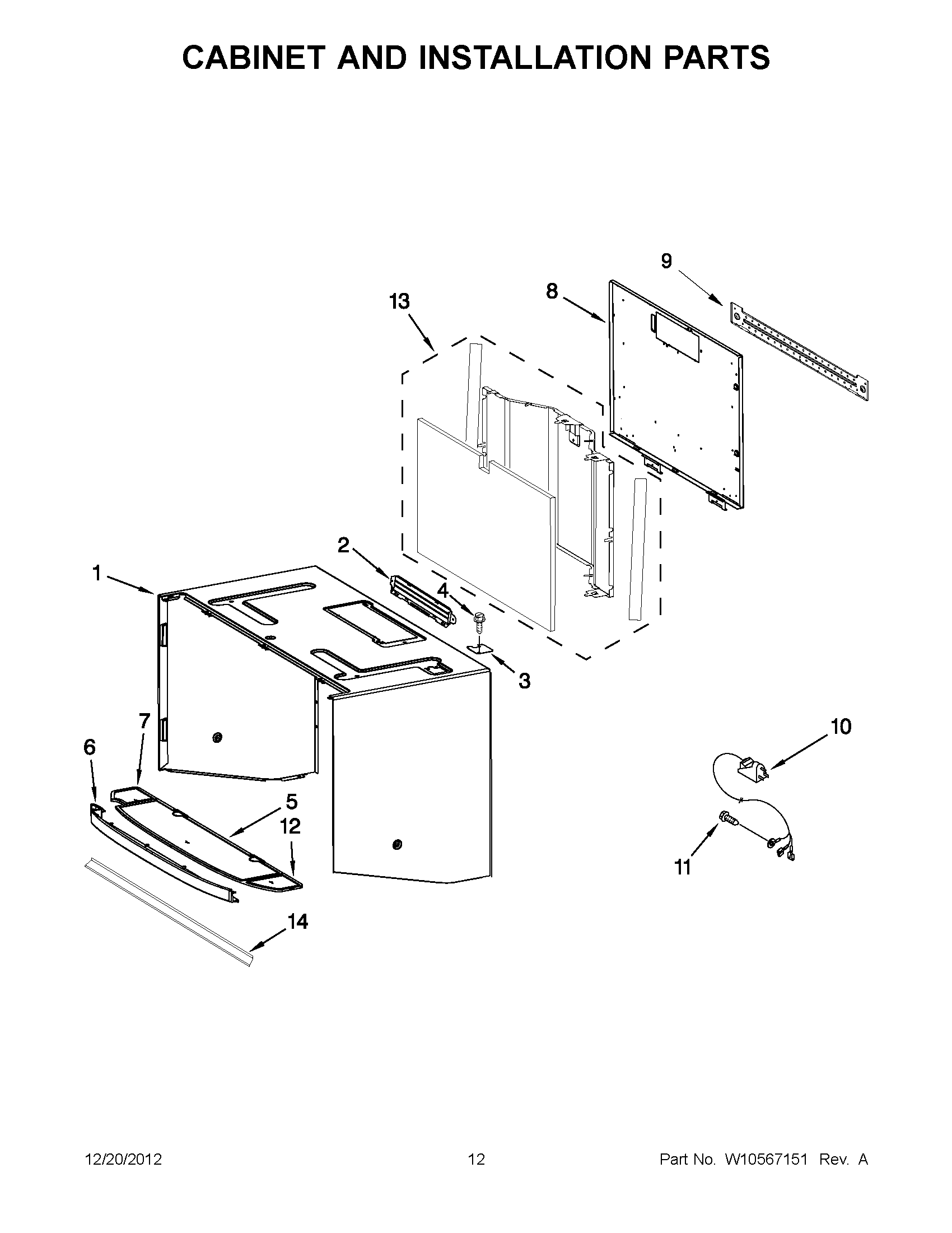

GH7208XRY5 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	W10470175 Whirlpool Microwave Wire Harness
NI	W10470173 Whirlpool Microwave Wire Harness
NI	MISCELLANEOUS, TEMPLATE, BACK WALL
NI	W10470191 Whirlpool Microwave Wire Harness Assembly
NI	W10553076 Whirlpool Microwave Wire Harness
NI	Template, Upper
NI	Installation, Magnetron Hardware
NI	HARNS-WIRE, P56-P66
NI	Harns-Wire, RCB – Inverter
NI	MISCELLANEOUS, HARNS, WIRE GRILL ELEMENT
NI	MISCELLANEOUS, MAIN HARNESS
NI	HARNS-WIRE No.75 P64 RCB
NI	8206185 Whirlpool Microwave Wire Harness
NI	HARNS-WIRE No.76 P2 RCB
NI	HARNS-WIRE, HV
NI	Screw (2)
NI	W10470176 Whirlpool Microwave Wire Harness
1	Case, Outer (Universal Silver)
1	Case, Outer (Black)
2	W10843943 Whirlpool Microwave Vent Damper
3	Lid, Power Cord
4	W11380570 Whirlpool Microwave Screw
5	Vent Screen (Middle)
6	Support, Vent Screen (Universal Silver)
7	Vent Screen (Left)
8	Plate, Back
9	PLATE, MOUNTING
10	CORD, POWER
11	4393836 Whirlpool Microwave Screw
12	Vent Screen (Right)
13	Insulation Assy
14	8205980 Whirlpool Microwave Air Deflector
