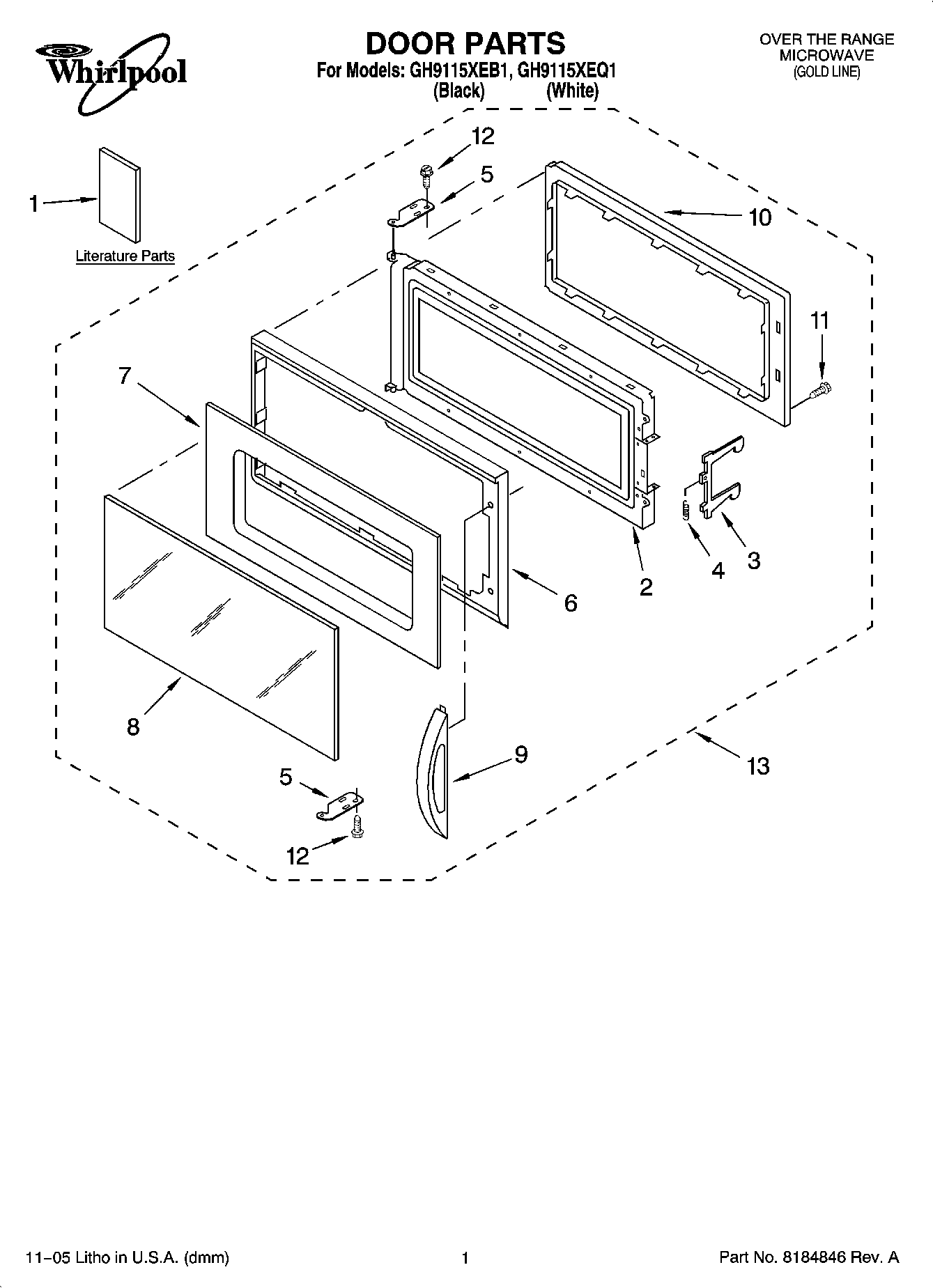

GH9115XEB1 01 – DOOR PARTS

Products

Position	Product
1	Use & Care Guide
1	Cook Guide Label
1	Tech Sheet
1	Cook Book
1	Instructions, Installation
2	Frame, Door
3	Latch (Black)
4	Spring, Latch (Stainless Model)
5	Plate, Hinge
6	Panel, Door (Black Model)
6	Panel, Door (White Model)
7	Baffle, Door
8	Glass, Door (White Model)
8	Glass, Door (Black Model)
9	Handle, Door (White Model)
9	Handle, Door (Black Model)
10	Choke Cover
11	Screw (White Model)
11	W11245710 Whirlpool Refrigerator Screw
12	Screw
13	Door Assembly (Black Model)
13	Door Assembly (White Model)
