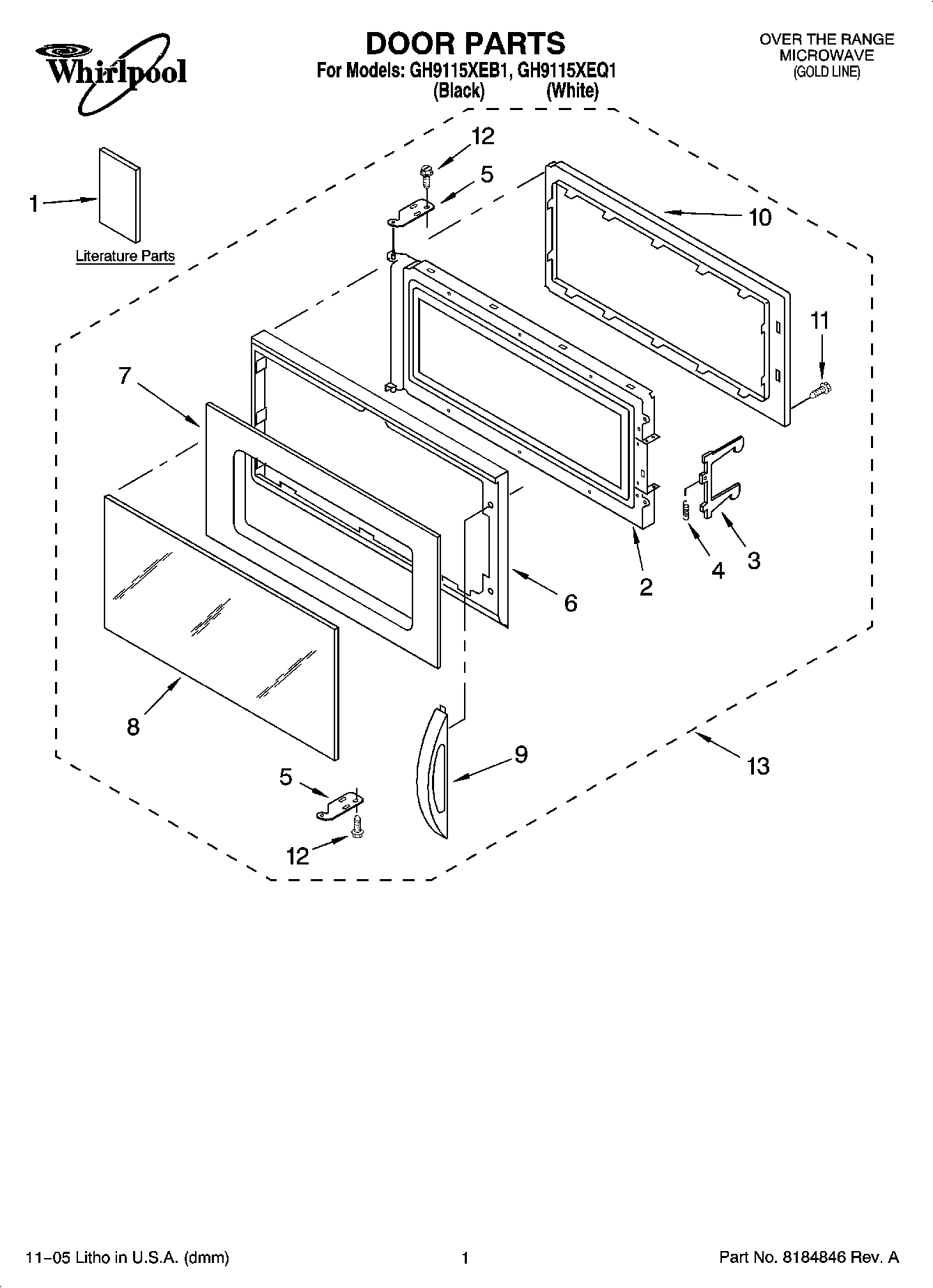

GH9115XEQ1 01 – DOOR PARTSadmin2025-04-26T11:33:57+00:00GH9115XEQ1 01 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Use & Care Guide |
| 1 | Cook Guide Label |
| 1 | Tech Sheet |
| 1 | Cook Book |
| 1 | Instructions, Installation |
| 2 | Frame, Door |
| 3 | Latch (Black) |
| 4 | Spring, Latch (Stainless Model) |
| 5 | Plate, Hinge |
| 6 | Panel, Door (Black Model) |
| 6 | Panel, Door (White Model) |
| 7 | Baffle, Door |
| 8 | Glass, Door (White Model) |
| 8 | Glass, Door (Black Model) |
| 9 | Handle, Door (White Model) |
| 9 | Handle, Door (Black Model) |
| 10 | Choke Cover |
| 11 | Screw (White Model) |
| 11 | W11245710 Whirlpool Refrigerator Screw |
| 12 | Screw |
| 13 | Door Assembly (Black Model) |
| 13 | Door Assembly (White Model) |
