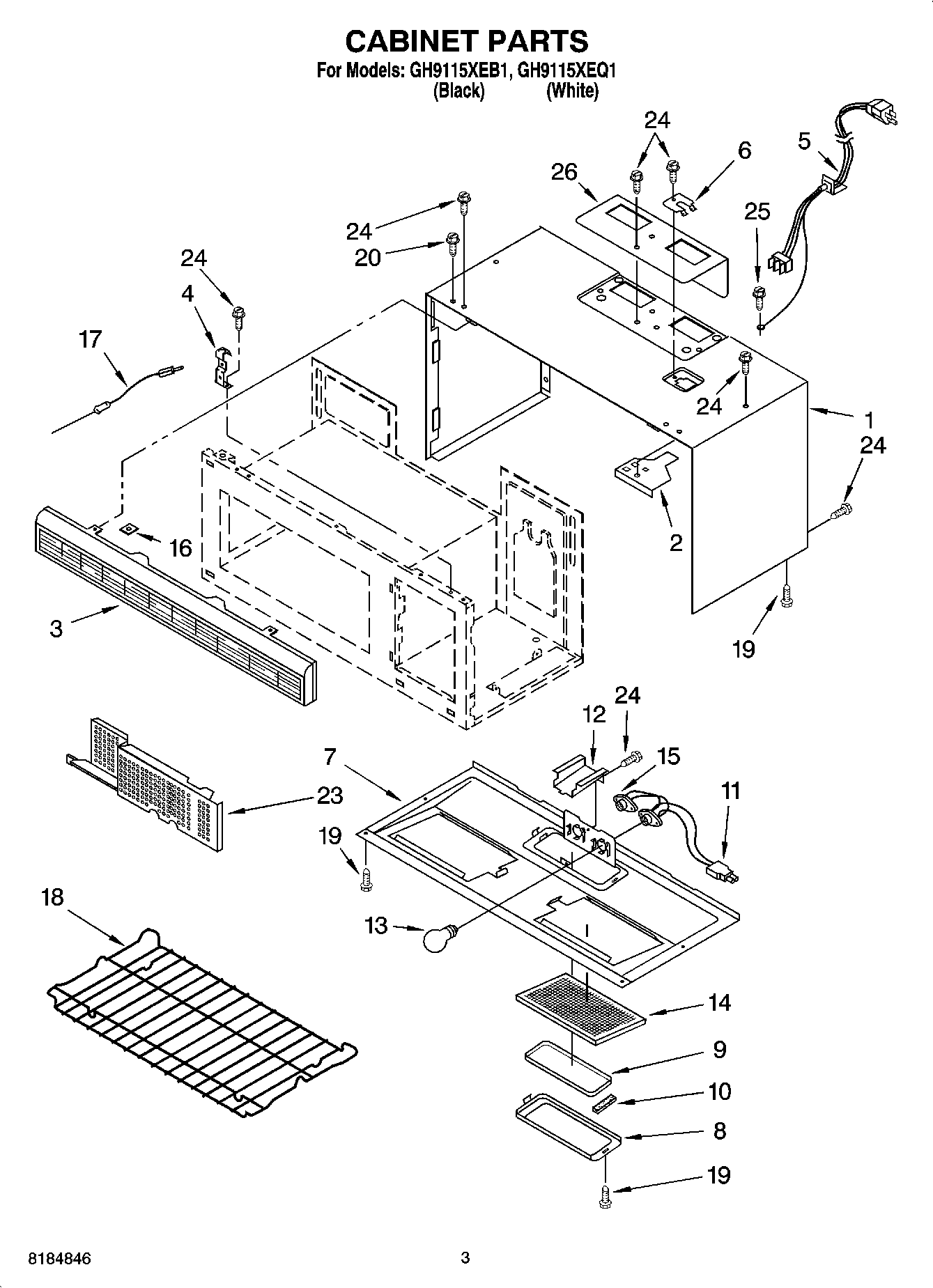

GH9115XEQ1 03 – CABINET PARTS

Products

Position	Product
1	Outer Case (White Model)
1	Outer Case (Black Model)
2	Mounting Bracket
3	Grille Vent (White Model)
3	Grille Vent (Black Model)
4	Bracket, Front
5	Power Cord
6	Cover, Power Cord
7	Base Plate (White Model)
8	Cover, Glass (Black Model)
8	Cover, Glass (White Model)
9	Glass, Lamp
10	Cushion, Glass
11	Lead Wire
12	Cover, Wire
13	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
14	4358853 Whirlpool Grease Filter
15	Lamp Holder
16	Bracket, Grille
17	Temperature Probe
18	Shelf Assembly
19	Screw
19	W11380570 Whirlpool Microwave Screw
20	Screw (Black Model)
20	Screw (White Model)
23	Bracket, Inlet
24	Screw
25	4344826 Whirlpool Refrigerator Screw
26	Blower Plate
