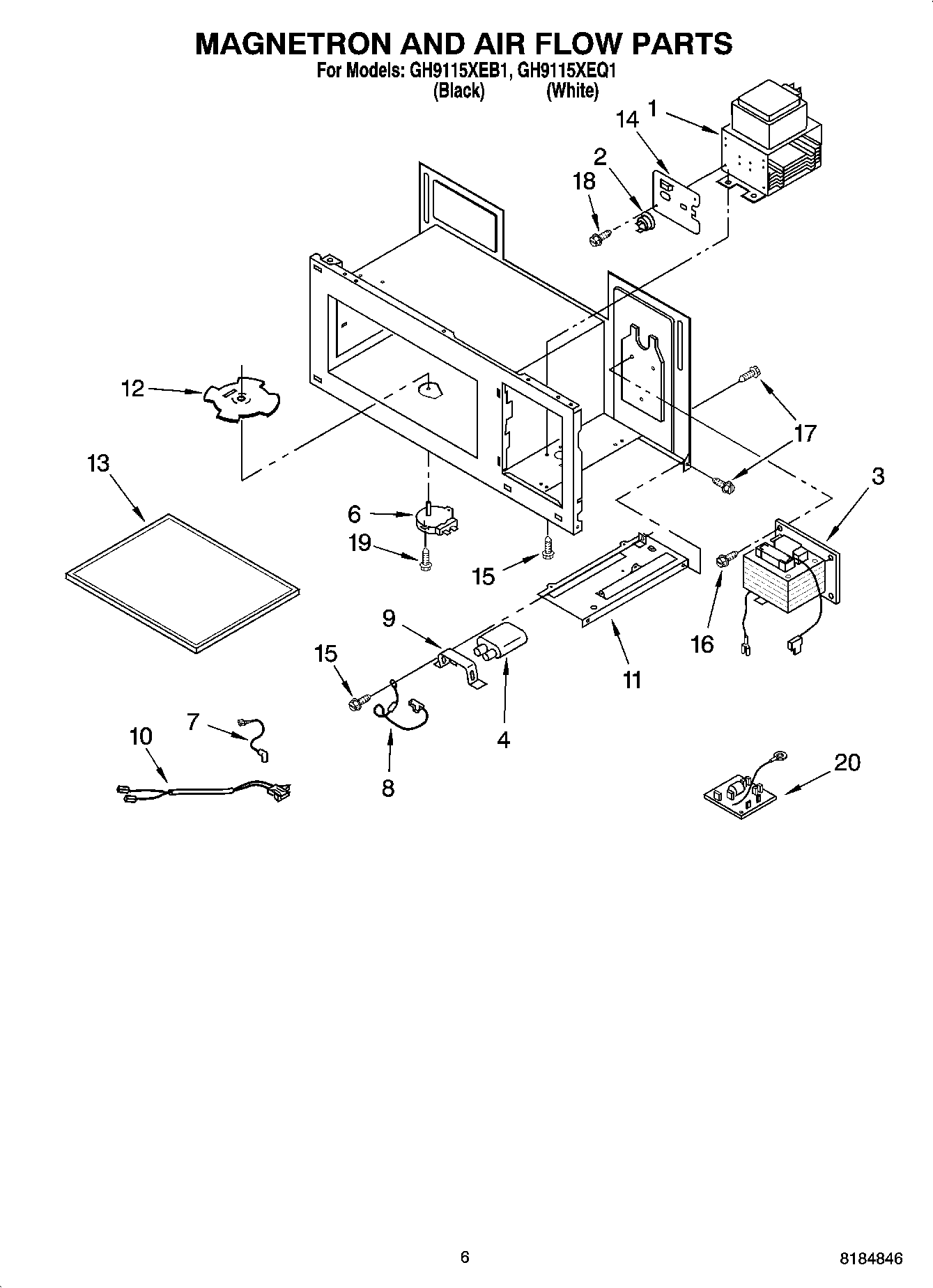

GH9115XEQ1 05 – MAGNETRON AND AIR FLOW PARTS

Written by

Products

Position	Product
1	Magnetron
2	Thermostat
3	Transformer
4	Capacitor, H.V.
6	Motor, Synchronous
7	H.V. Cable
8	H.V. Diode-Cable
9	Bracket, H.V.C.
10	Lead Wire
11	Plate, Bottom
12	Stirrer Fan Disk
13	Ceramic Plate
14	Bracket, Thermostat
15	4344826 Whirlpool Refrigerator Screw
16	WP3400094 Whirlpool Screw
17	Screw
18	Screw
19	Screw
20	Filter, Noise
