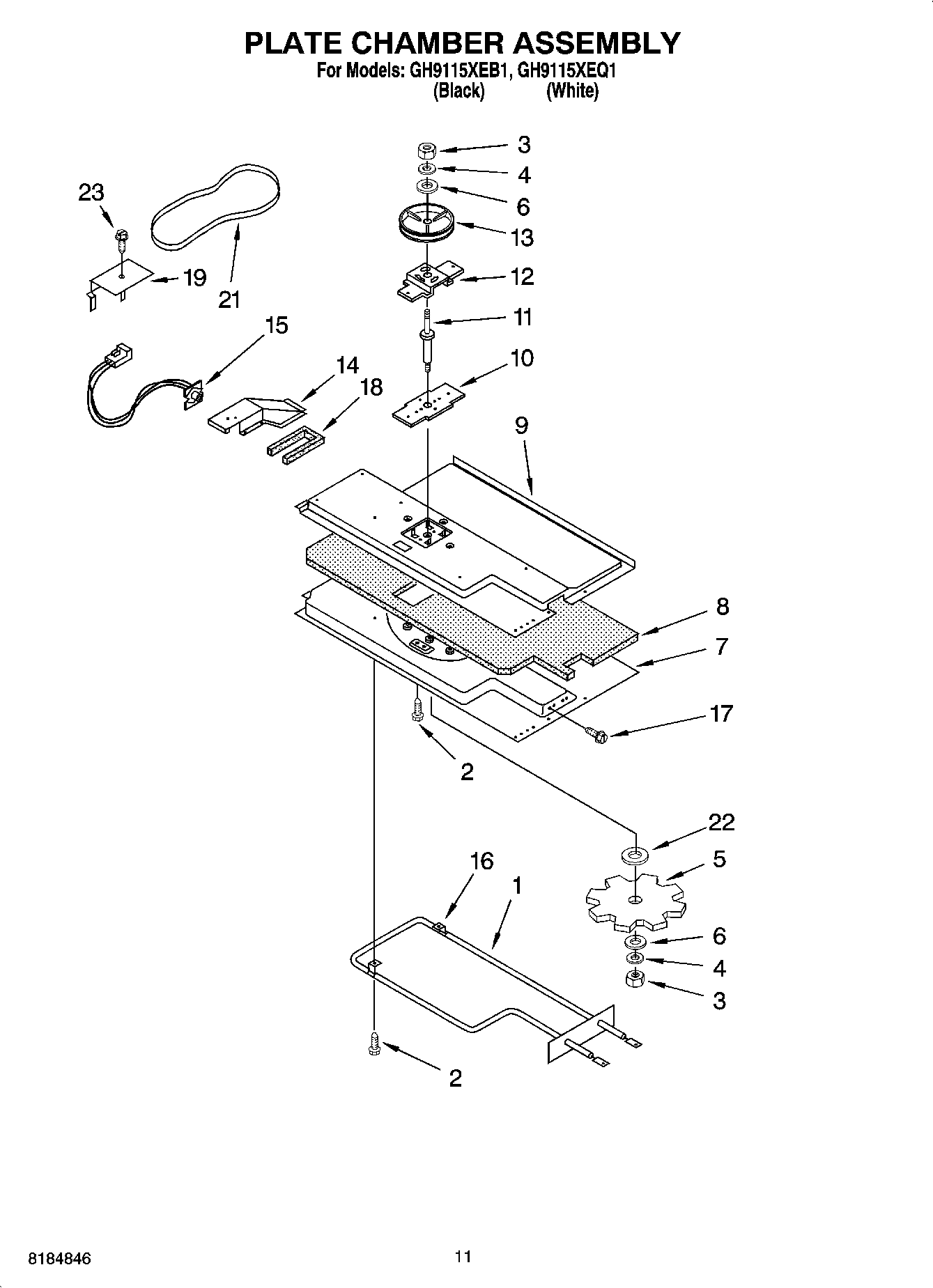

GH9115XEQ1 08 – PLATE CHAMBER ASSEMBLY

Written by

Products

Position	Product
1	Element
2	WP3196557 Whirlpool Screw
3	Nut
4	WP8533914 Whirlpool Lock
5	Stirrer Fan Disk
6	Washer
7	Plate, Chamber
8	Insulation
9	Plate, Outer
10	Plate, Bearing
11	Bearing Assembly
12	Holder, Bearing
13	Pulley
14	Air Tunnel
15	Sensor
16	Hanger, Element
17	4344826 Whirlpool Refrigerator Screw
18	Cushion
19	Bracket, Sensor
21	Belt
22	Plate, Fan
23	Screw
