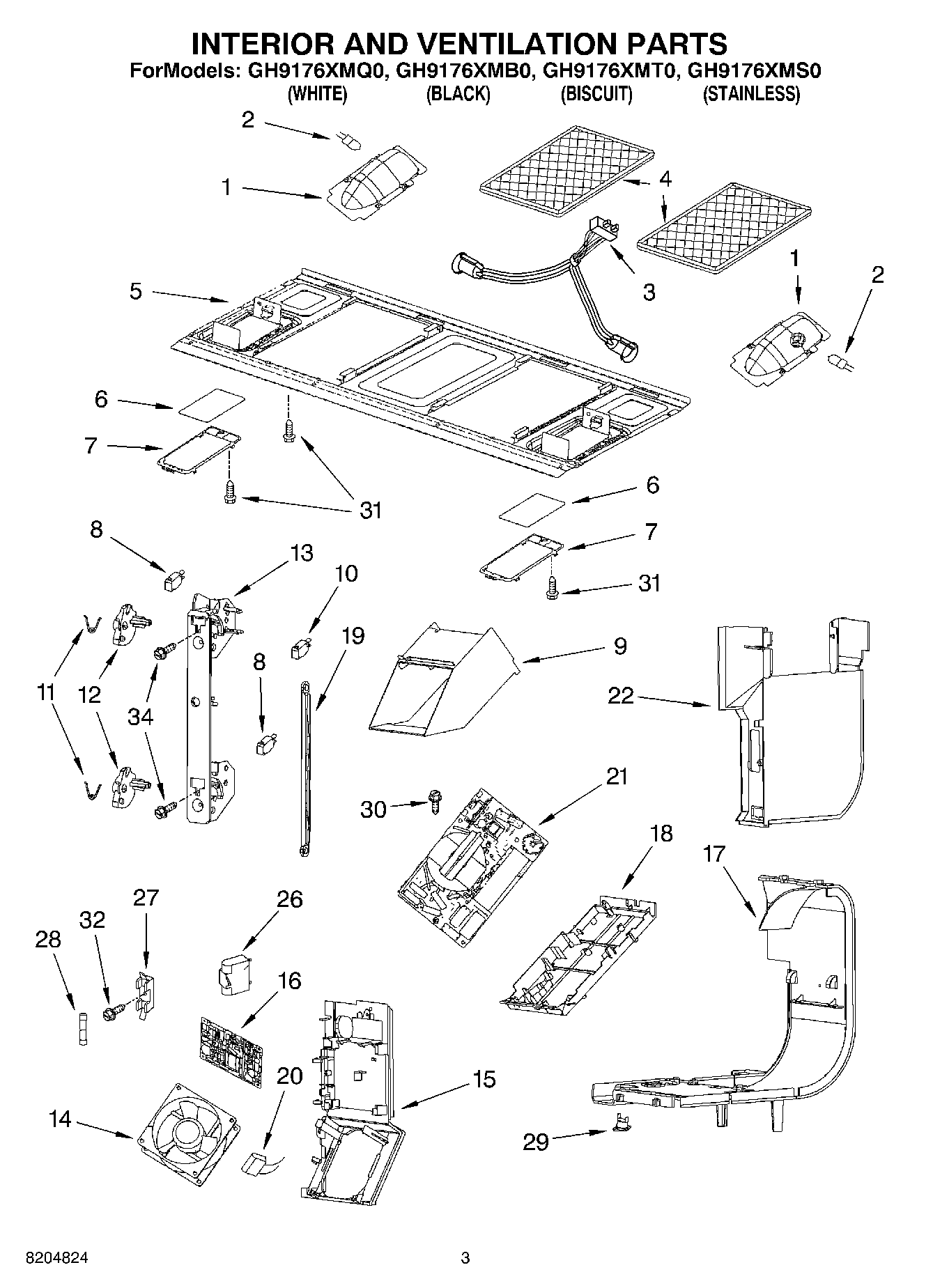

GH9176XMS0 03 – INTERIOR AND VENTILATION PARTS

GH9176XMS0 03 – INTERIOR AND VENTILATION PARTS

Written by

in

GH9176XMS0 03 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1Reflector, Lamp (Right)
1Reflector, Lamp (Left)
28204670 Whirlpool Microwave Halogen Lamp 10W 12V
3Wire Assy
4W10113040A Whirlpool Grease Filter Aluminum
5Plate, Bottom
6Glass, Lamp
7Holder, Glass
8W10211974 Whirlpool Microwave Door Interlock Micro Switch
9Cover, Inverter
10W10211972 Whirlpool Microwave Switch
11Spring, Interlock
12Plate, Cam
13Support, Interlock
14Fan, DC 12 V
15Housing, Fan
16Inverter 40 W
17Bracket, Holder
18Holder, Inverter
19Rod-Locking Link
20Capacitor, 125 V
21W10217710 Whirlpool Microwave Inverter
22Plate, Side
26Capacitor
27Holder, Fuse
28FUSE-THRML
29Thermostat
30SCREW
31W11380570 Whirlpool Microwave Screw
32SCREW
348169479 Whirlpool Microwave Screw
