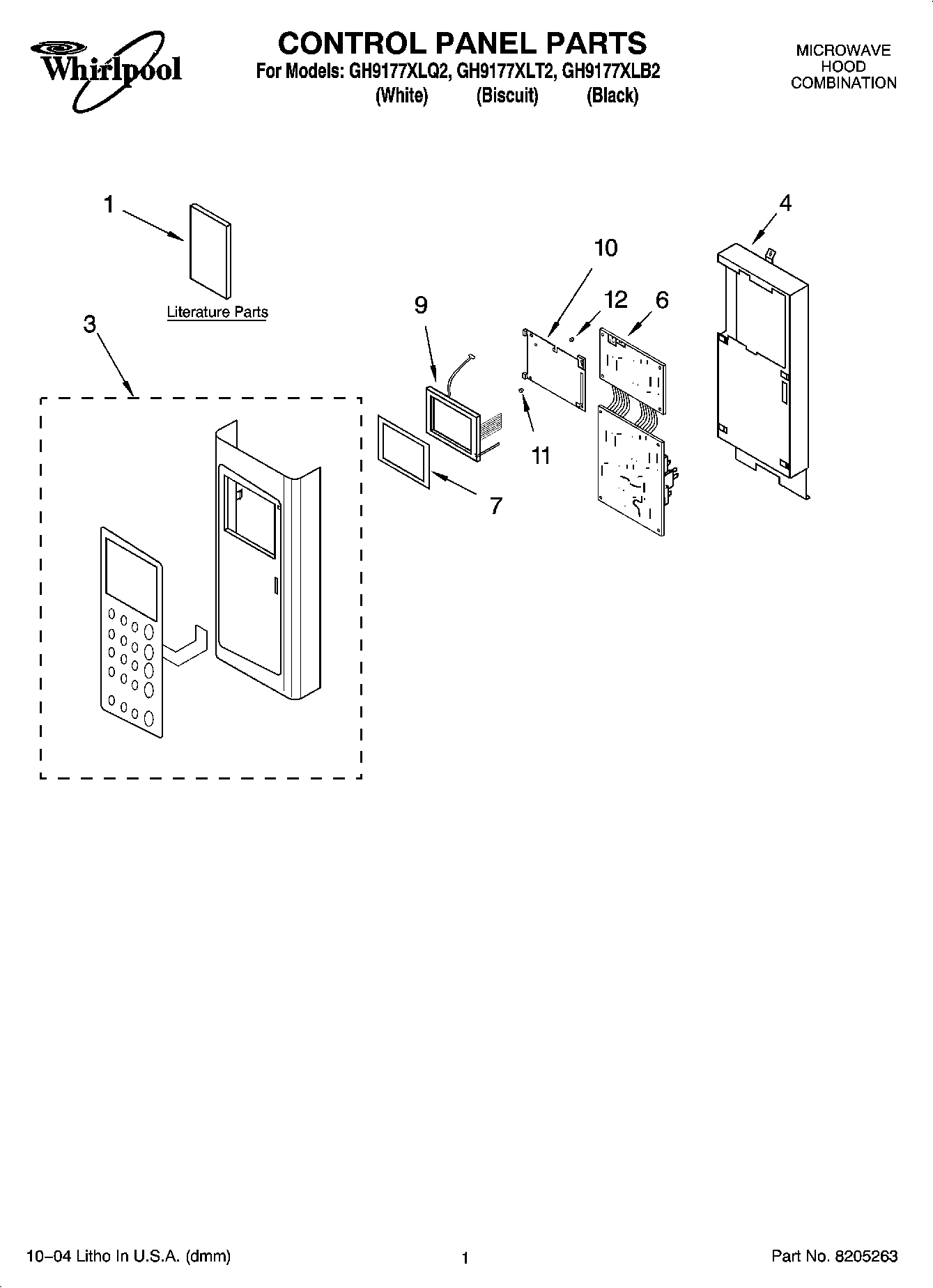

GH9177XLQ2 01 – CONTROL PANEL PARTS

GH9177XLQ2 01 – CONTROL PANEL PARTS

Written by

in

GH9177XLQ2 01 – CONTROL PANEL PARTS

Products

PositionProduct
1Installation Instructions
1Use & Care Guide
1Cook Book
1Cook Guide Label
1Tech Sheet
3Control Panel Assembly (Biscuit)
3Control Panel Assembly (Black)
3Control Panel Assembly (White)
4Bracket, Control
6Microcomputer
7Ring, Rubber
9LCD Assembly
10Bracket, LCD
11Bushing, Rubber
12Sensor, Light Lens
