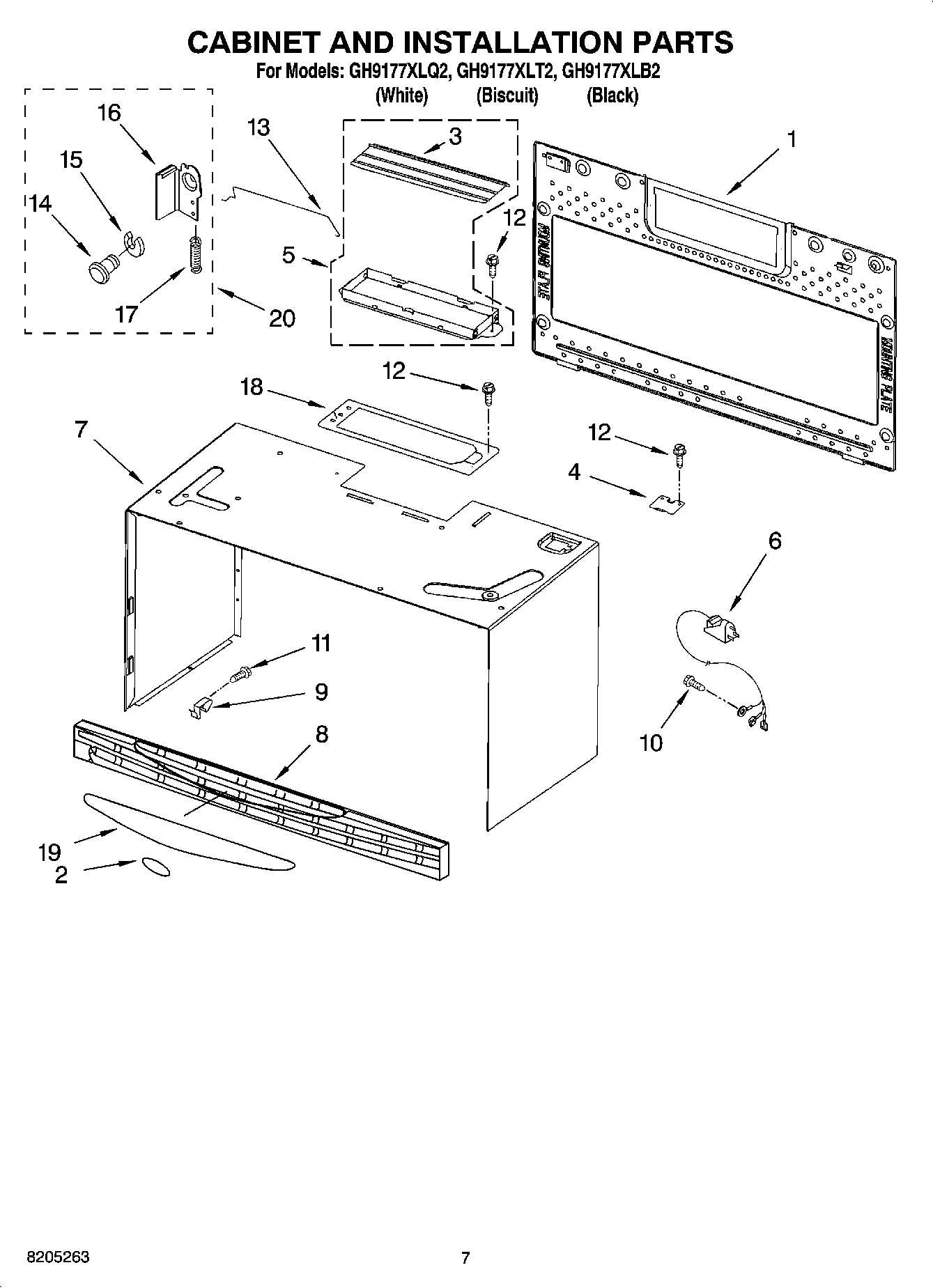

GH9177XLQ2 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
1	Plate, Mounting
2	Plate, Name
3	W10843943 Whirlpool Microwave Vent Damper
4	Lid, Power Cord
6	Cord, Power
7	Case, Outer (White)
7	Case, Outer (Black)
7	Case, Outer (Biscuit)
8	Grille, Vent (White)
8	Grille, Vent (Black)
8	Grille, Vent (Biscuit)
9	W10615742 Whirlpool Microwave Clip
10	4393836 Whirlpool Microwave Screw
11	Screw
12	W11380570 Whirlpool Microwave Screw
13	Rod
14	Latch, Pivot
15	E-Ring
17	Spring
18	Plate, Damper
19	Plate, Grille (Biscuit)
19	Plate, Grille (Black)
19	Plate, Grille (White)
20	(Biscuit)
20	WP8169704 Whirlpool Screw
20	8205262RB Whirlpool Refrigerator Crusher Blade #2
20	Catch
20	Hardware, Installation
20	Wire Harness (Includes Light Sockets)
20	Template, Wall
20	Miscellaneous
