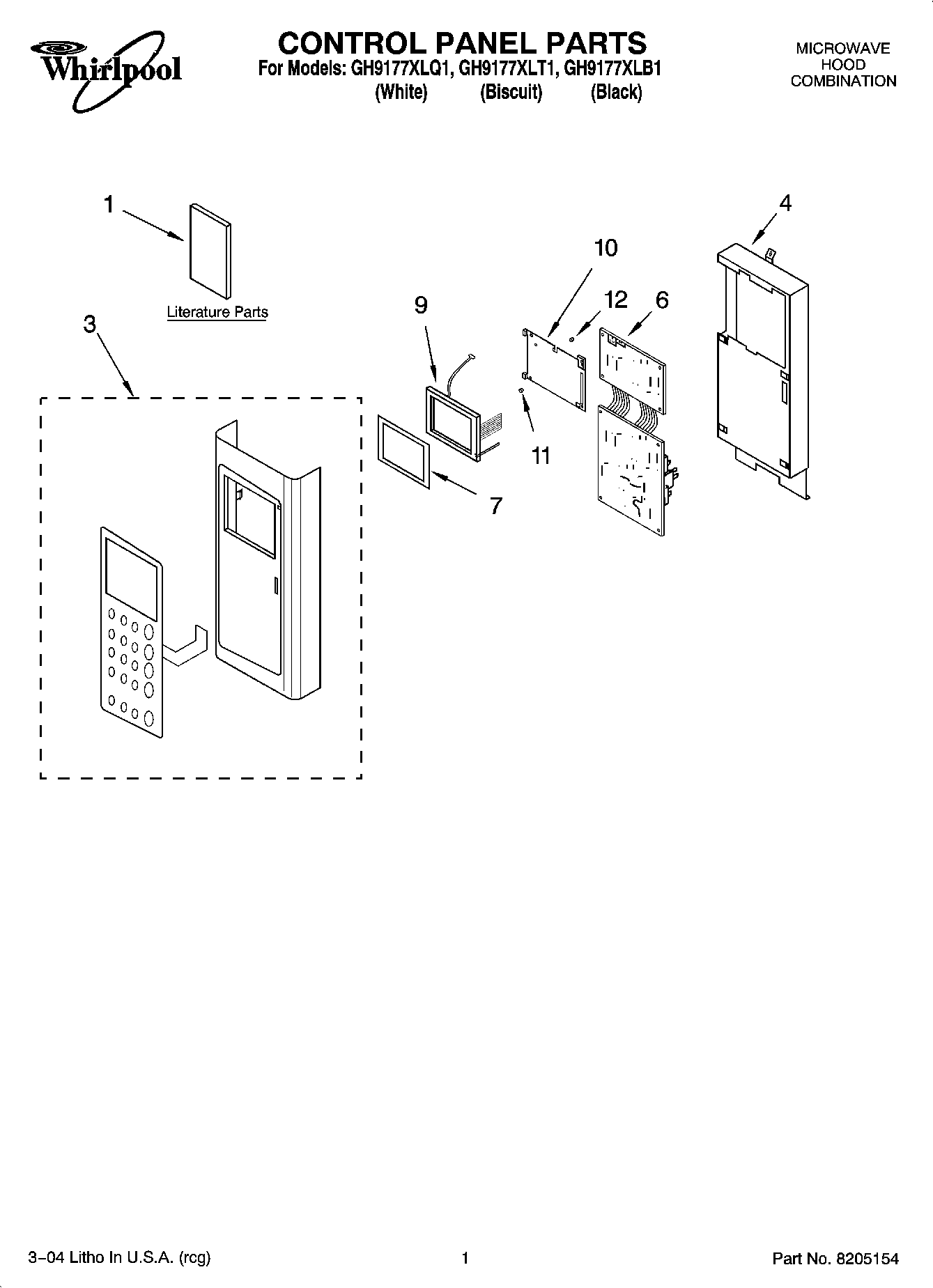

GH9177XLT1 01 – CONTROL PANEL PARTS

GH9177XLT1 01 – CONTROL PANEL PARTS

Written by

in

GH9177XLT1 01 – CONTROL PANEL PARTS

Products

PositionProduct
1Literature Parts (Instructn, Install)
1Literature Parts (Cook Book)
1Literature Parts (Cook Guide Label)
1Literature Parts (Tech Sheet)
1Literature Parts (Use & Care Guide)
3Control Panel Assembly (White)
3Control Panel Assembly (Biscuit)
3Control Panel Assembly (Black)
4Bracket, Control
6Microcomputer
7Ring, Rubber
9LCD Assembly
10Bracket, LCD
11Bushing, Rubber
12Sensor, Light Lens
