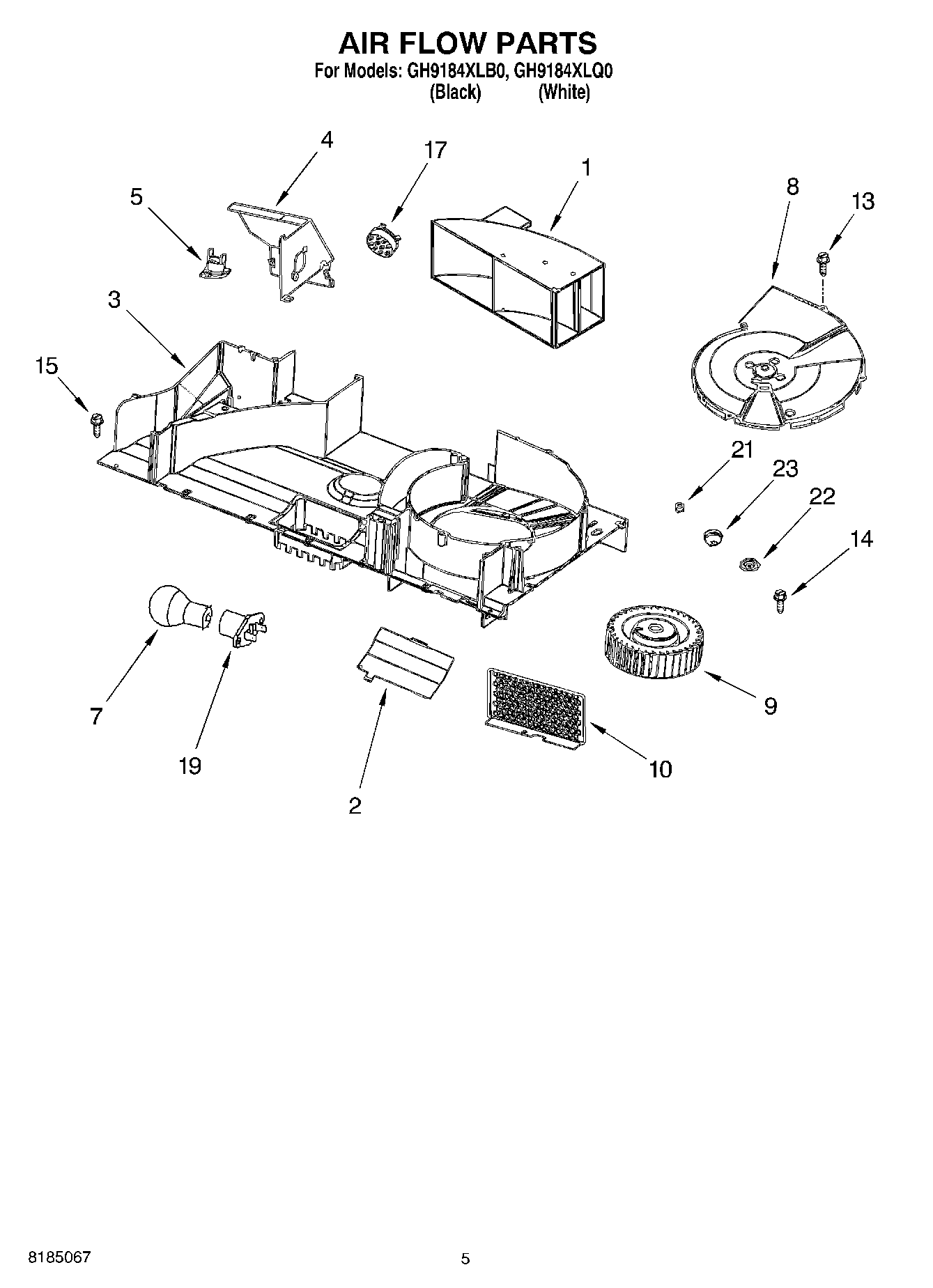

GH9184XLB0 04 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Deflector, Air
2	Cover, Lamp
3	Duct, Air
4	Bracket, Thermostat
5	Thermostat
7	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
8	Cover, Motor
9	Motor, Fan Assy
10	Shield
13	WP4393834 Whirlpool Microwave Screw
14	SCREW
15	Screw
17	Humidity, Sensor
19	Holder, Lamp
21	Spacer, Copper Pipe
22	Plate, Damper
23	Cushion, Mtr
