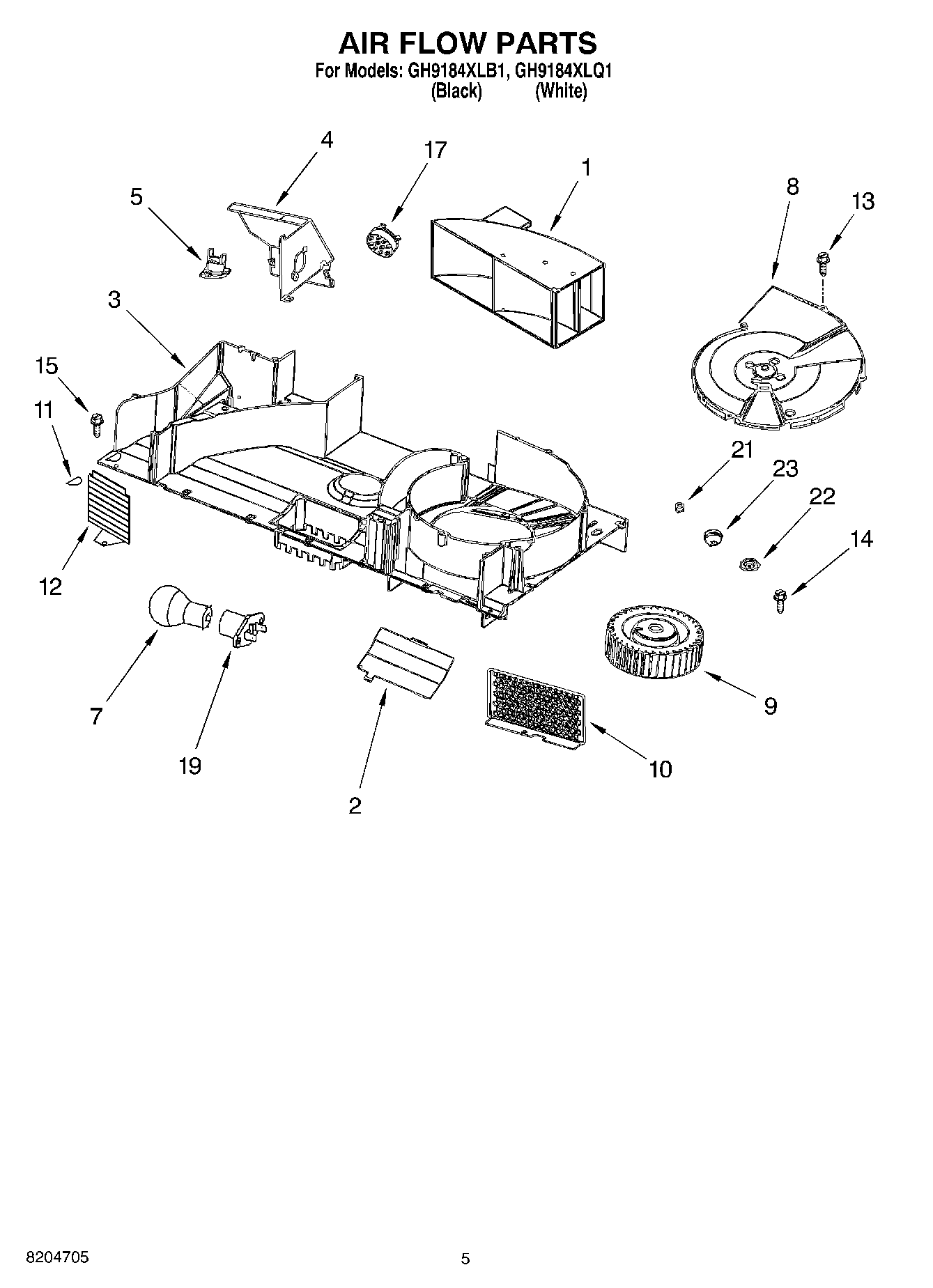

GH9184XLB1 04 – AIR FLOW PARTS

Products

PositionProduct
1Deflector, Air
2Cover, Lamp
3Duct, Air
4Bracket, Thermostat
5Thermostat
78206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
8Cover, Motor
9Motor, Fan Assy
10Shield
11Cover
12SHIELD
13WP4393834 Whirlpool Microwave Screw
14SCREW
15Screw
17Humidity, Sensor
19Holder, Lamp
21Spacer, Copper Pipe
22Plate, Damper
23Cushion, Mtr
