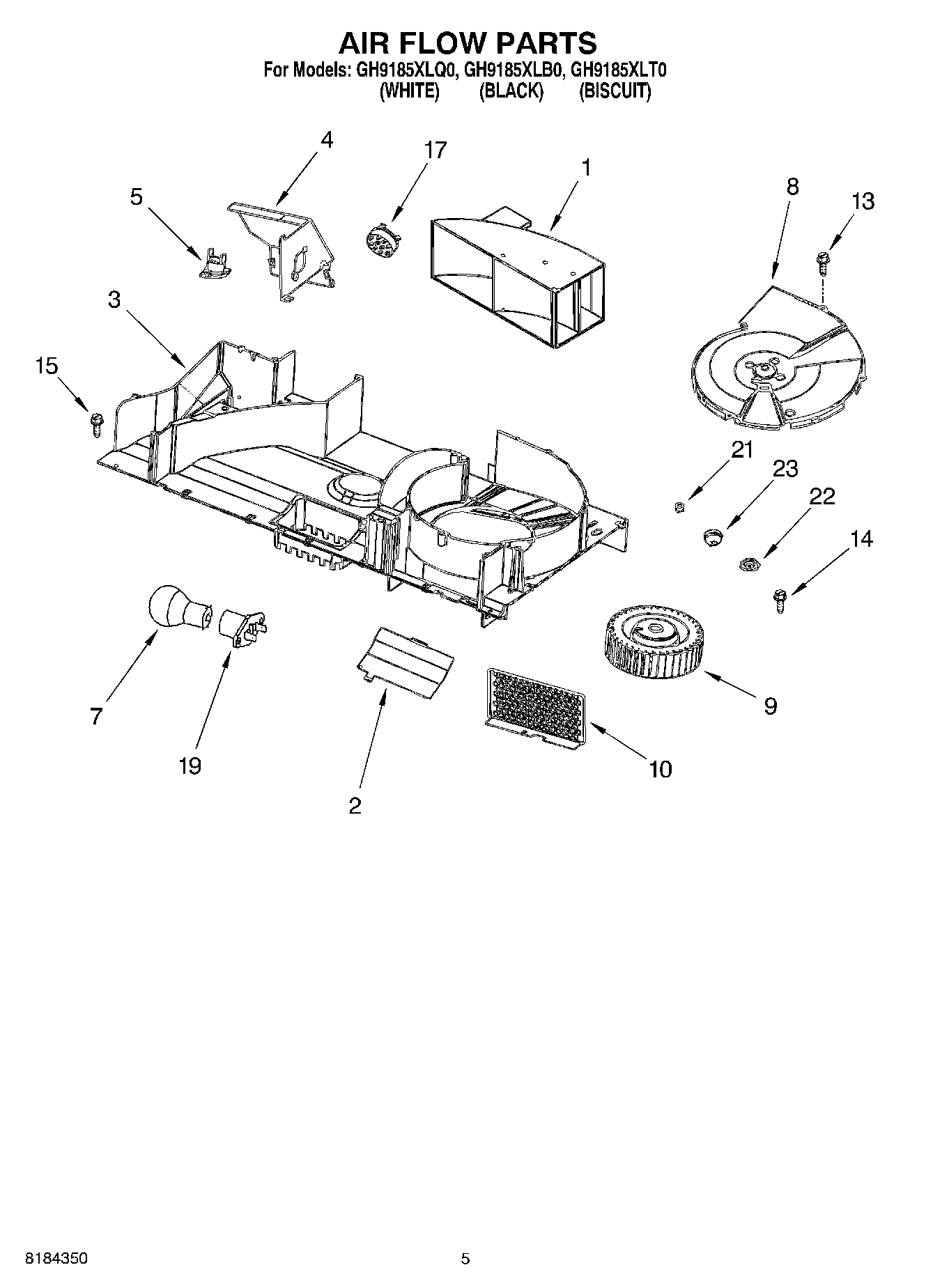

| 1 | Deflector, Air |
| 2 | Cover, Lamp |
| 3 | Duct, Air |
| 4 | Bracket, Thermostat |
| 5 | Thermostat |
| 7 | 8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb |
| 8 | Cover, Motor |
| 9 | Motor, Fan-Assy |
| 10 | Shield |
| 13 | WP4393834 Whirlpool Microwave Screw |
| 14 | SCREW |
| 15 | Screw |
| 17 | Humidity, Sensor |
| 19 | 8169539 Whirlpool Microwave Light Bulb Socket and Housing |
| 21 | Spacer, Copper Pipe |
| 22 | Plate, Damper |
| 23 | Cushion, Mtr |
