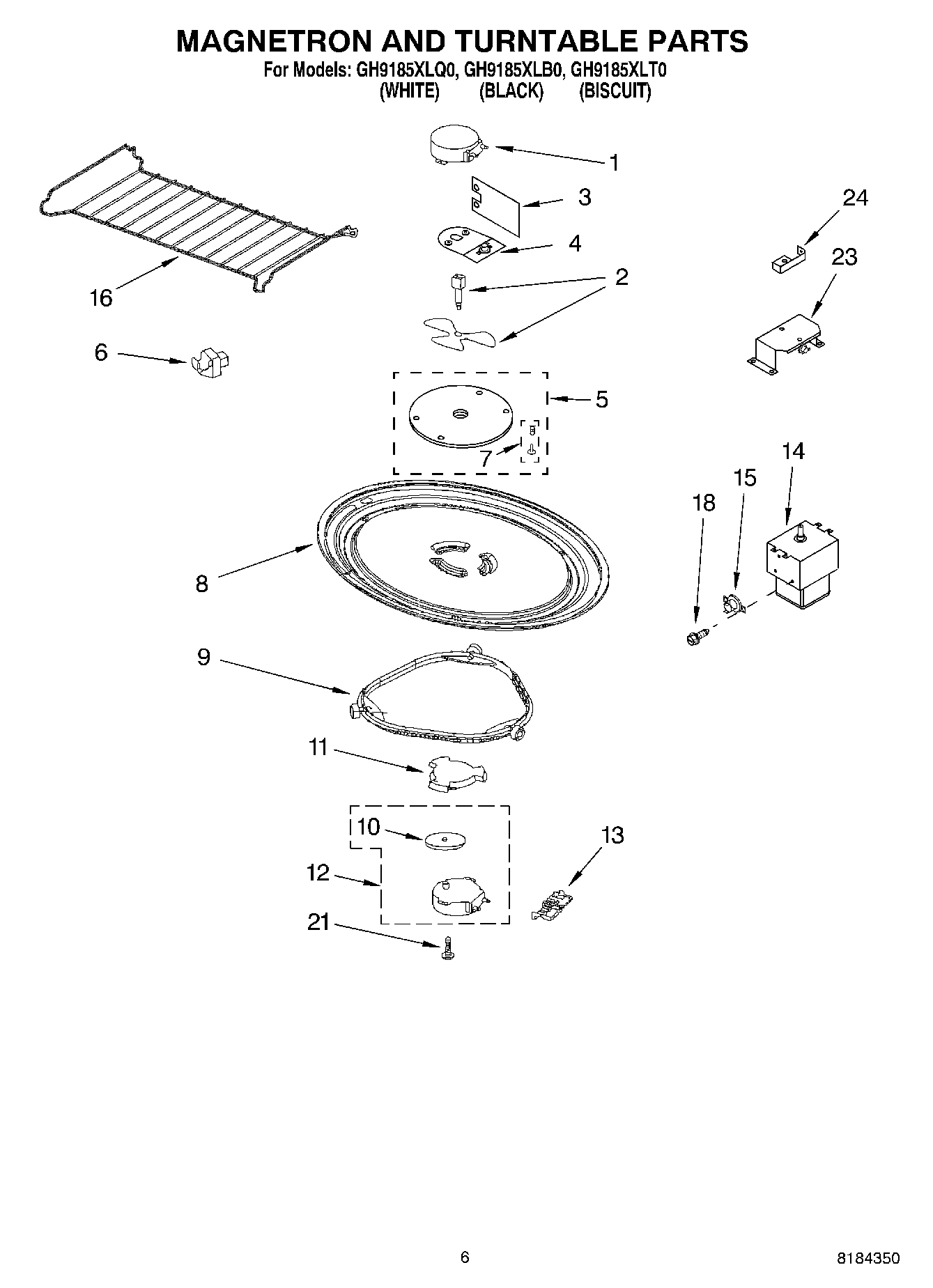

GH9185XLB0 05 – MAGNETRON AND TURNTABLE

GH9185XLB0 05 – MAGNETRON AND TURNTABLE

Written by

in

GH9185XLB0 05 – MAGNETRON AND TURNTABLE

Products

PositionProduct
1Motor, Stirrer
2Stirrer Shaft/Blade
3WP8184485 Whirlpool Microwave Shield
4Thermostat And Bracket
5Cover, Inlet Includes Nails and Bushings
6W10315274 Whirlpool Microwave Meal Rack
7Nails/Bushings (4 of each)
84393799 Whirlpool Microwave Glass Tray
9W11252182 Whirlpool Glass Tray Support
108184109 Whirlpool Microwave Spacer
11W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
12W10642989 Whirlpool Microwave Oven Turntable Motor
13Cover, Terminal
148206317 Whirlpool Microwave Magnetron
15Thermostat
16Rack
18Screw
214393832 Whirlpool Microwave Screw
23Thermostat/Bracket
24Bracket, Plug
