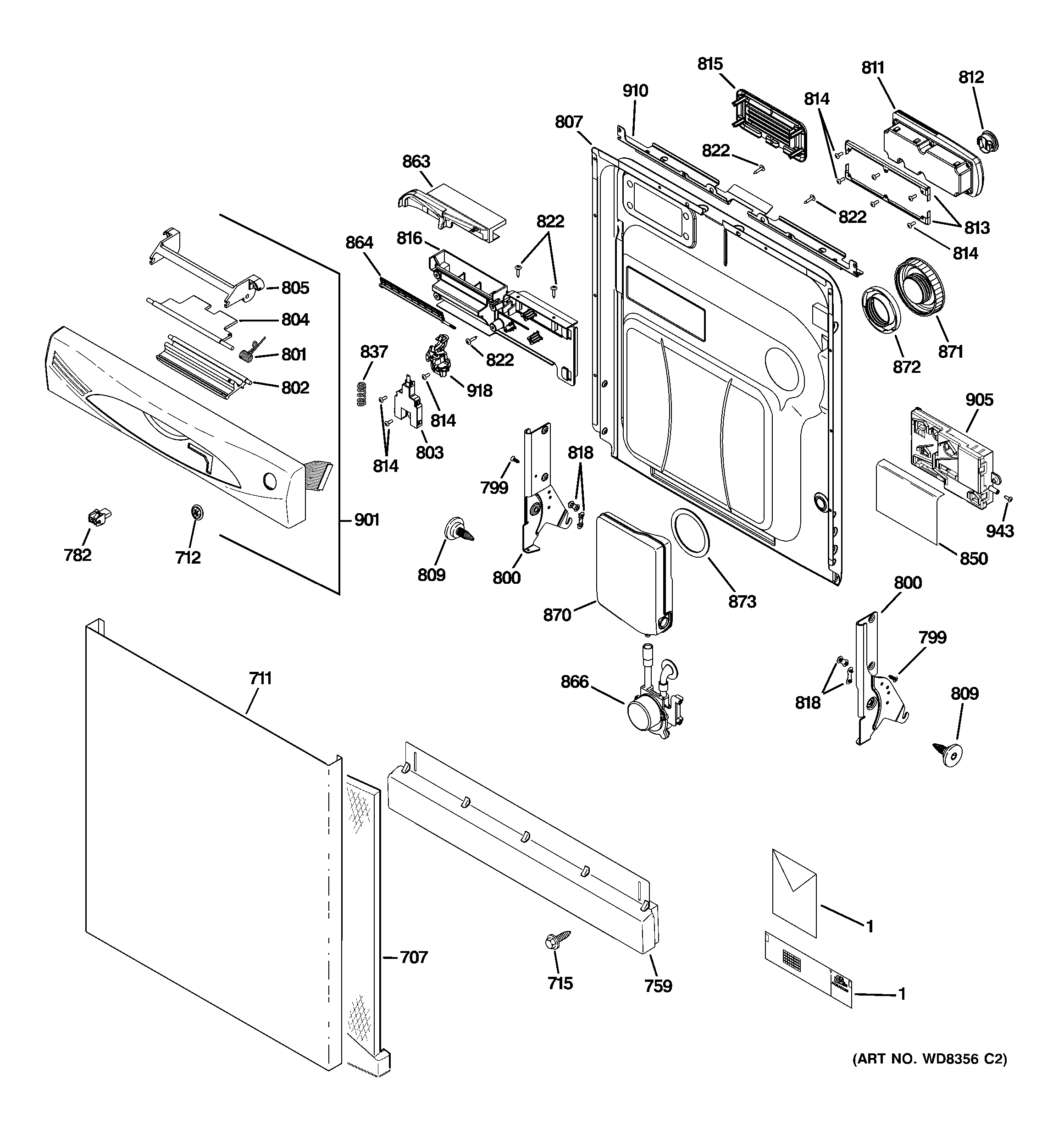

GHDF300R10WW ESCUTCHEON & DOOR ASSEMBLY

GHDF300R10WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GHDF300R10WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30260
1GEN 31-30619
1WD01X10295 GE Dishwasher Hardness Tester Strip
1GEN 49-55066
707GEN WD01X10407
711DOOR ASM OUTER BB
711GEN WD31X10108
712GEN WD34X11493
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
715WD02X10147 GE Dishwasher Screw 8-18 B 1HW 1/2 SN WH
759GEN WD27X10168
759WD27X10177 GE Dishwasher Toe Kick Assembly
799WD02X10123 GE Dishwasher Screw 10-32 GXTT FLP.595 S
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
800GEN WD14X10047
800GEN WD14X10021
801WR02X10585 SPRING RECES
802GEN WD13X10010
802GEN WD13X10007
803GEN WD21X10169
804WD13X10045 GE Dishwasher Handle Actuator
805GEN WD13X10009
807GEN WD31X10087
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816GEN WD12X10305
818WD12X10313 GE Dishwasher Hinge Arm Bearing
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
837WD03X10026 GE Dishwasher Spring Plunger
850WD01X10635 GE Dishwasher Control Shield
863GEN WD12X10306
864WD12X10067 GE Dishwasher Flapper Vent
864WD12X10044 GE Dishwasher Flapper Vent
866WD12X10384 GE Dishwasher Detergent Dispensing Assembly
870BOTTLE DETERGENT ASM
871WD12X10282 GE Dishwasher Cap Assembly
872WD02X25438 GE Dishwasher Lock Nut Assembly
873GEN WD08X10060
901GEN WD34X11627
901GEN WD34X11628
905GEN WD21X10385
910GEN WD34X11639
918WD21X10172 GE Dishwasher Vent Driver
943WZ5X219D GE Screw Package
