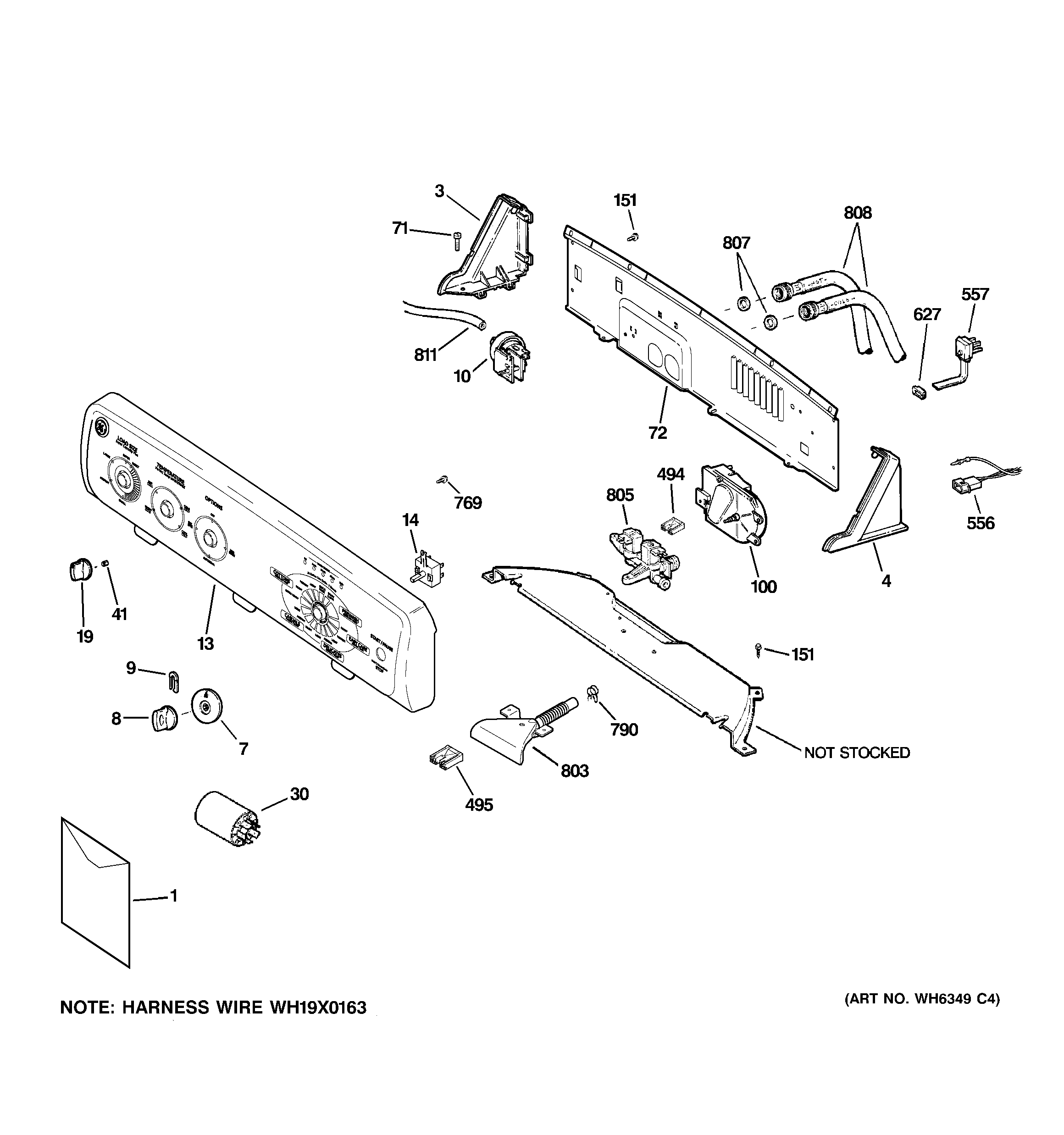

GHDSR316H0WW CONTROLS & BACKSPLASH

GHDSR316H0WW CONTROLS & BACKSPLASH

Written by

in

GHDSR316H0WW CONTROLS & BACKSPLASH

Products

PositionProduct
1GEN 31-16524
1GEN 31-15441
1GEN 49-90302
3WH42X22575 GE Left Hand Endcap Washer
4WH42X22576 GE Washer Right Hand Endcap
7WH11X10049 GE Washer Control Timer Dial
8WH01X10310 GE Washer Control Knob
9WH1X2117 GE Timer Knob Spring Clip
10WH12X10076 GE Washer Water Pressure Switch
13GEN WH42X10688
14GEN WH12X10326
19WE01X20378 GE Washer Control Knob
30WH12X10408 GE Power Line Filter
41GEN WH01X10106
71WH2X1205 GE Screw 8-18
72GEN WH46X10146
100WH12X10350 GE Timer
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
494WD21X10356 GE Dishwasher Housing SPECIAL-Drain Solen
495WD21X10355 GE Dishwasher Water Valve Housing Special
556GEN WH12X0497
557GEN WH19X0311
627GEN WH12X10208
769WR01X10196 GE Refrigerator Screw 8-18 HID02
769WB1X500D GE Oven Screw Package
790WH1X2036 GE UNIX Clamp
803HOSE & WATER INLET
805WH13X10027 GE Triple Water Valve
807WH2X42D GE Washer Pack of 12
808WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
811WH41X365 GE Washer Water Level Pressure Switch HOSE
