GHDT108V00WW UPPER RACK ASSEMBLY

GHDT108V00WW UPPER RACK ASSEMBLY

Written by

in

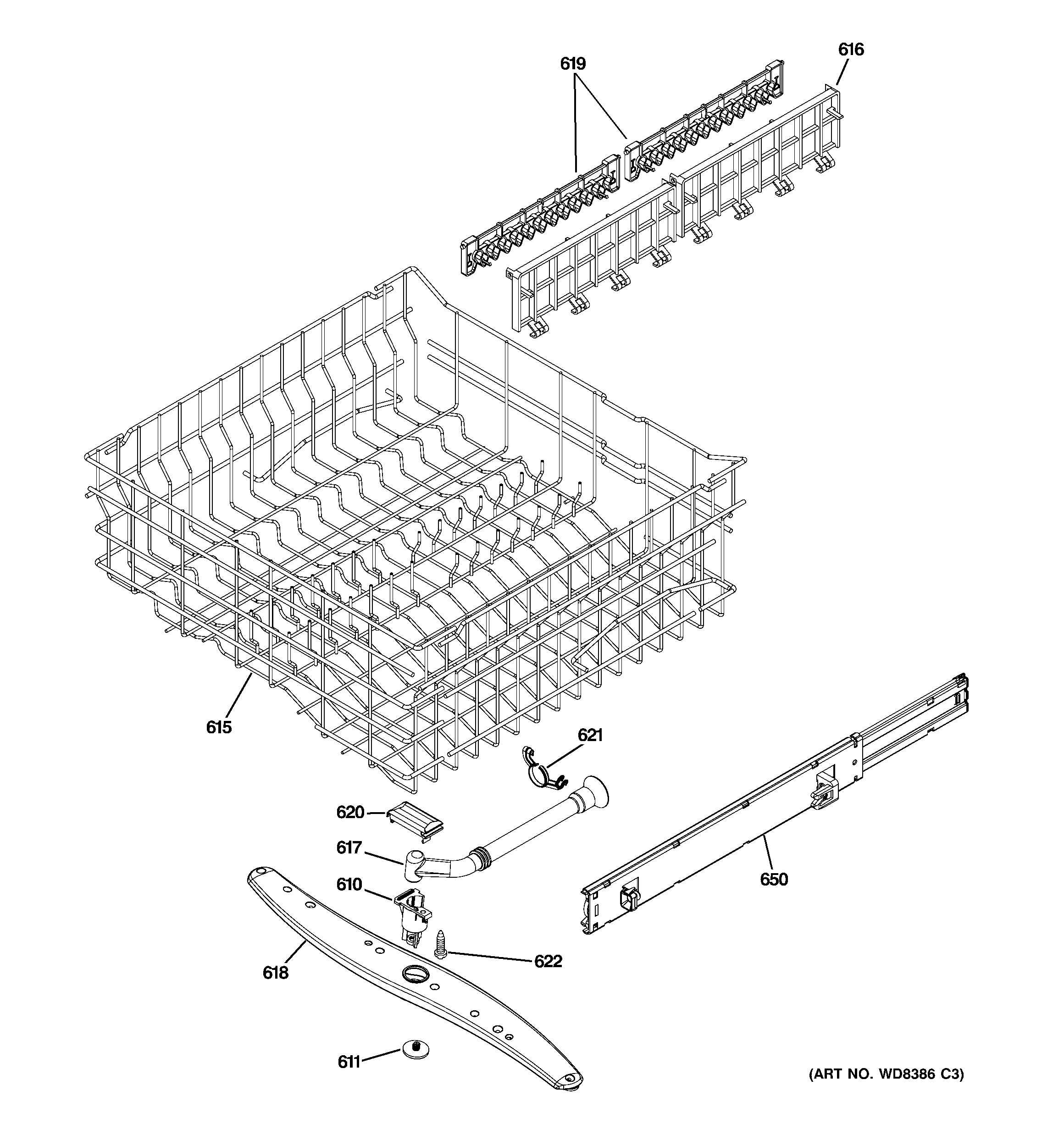

GHDT108V00WW UPPER RACK ASSEMBLY

Products

PositionProduct
610WD12X10353 GE Dishwasher Spray Arm Hub
611WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
615WD28X10413 GE Dishwasher Upper Rack Assembly with Spray Arm
616WD28X10302 GE Full Length Shelf Cup
617WD12X10145 GE Dishwasher Mid Spray Conduit
618WD22X10066 GE Dishwasher Arm Spray Mid Assembly
620WD12X10405 GE Dishwasher Mid Spray Arm Bracket
621WD12X10114 GE Dishwasher Conduit Carrier Mid
622WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
650INNER RAIL UPR RACK ASM
