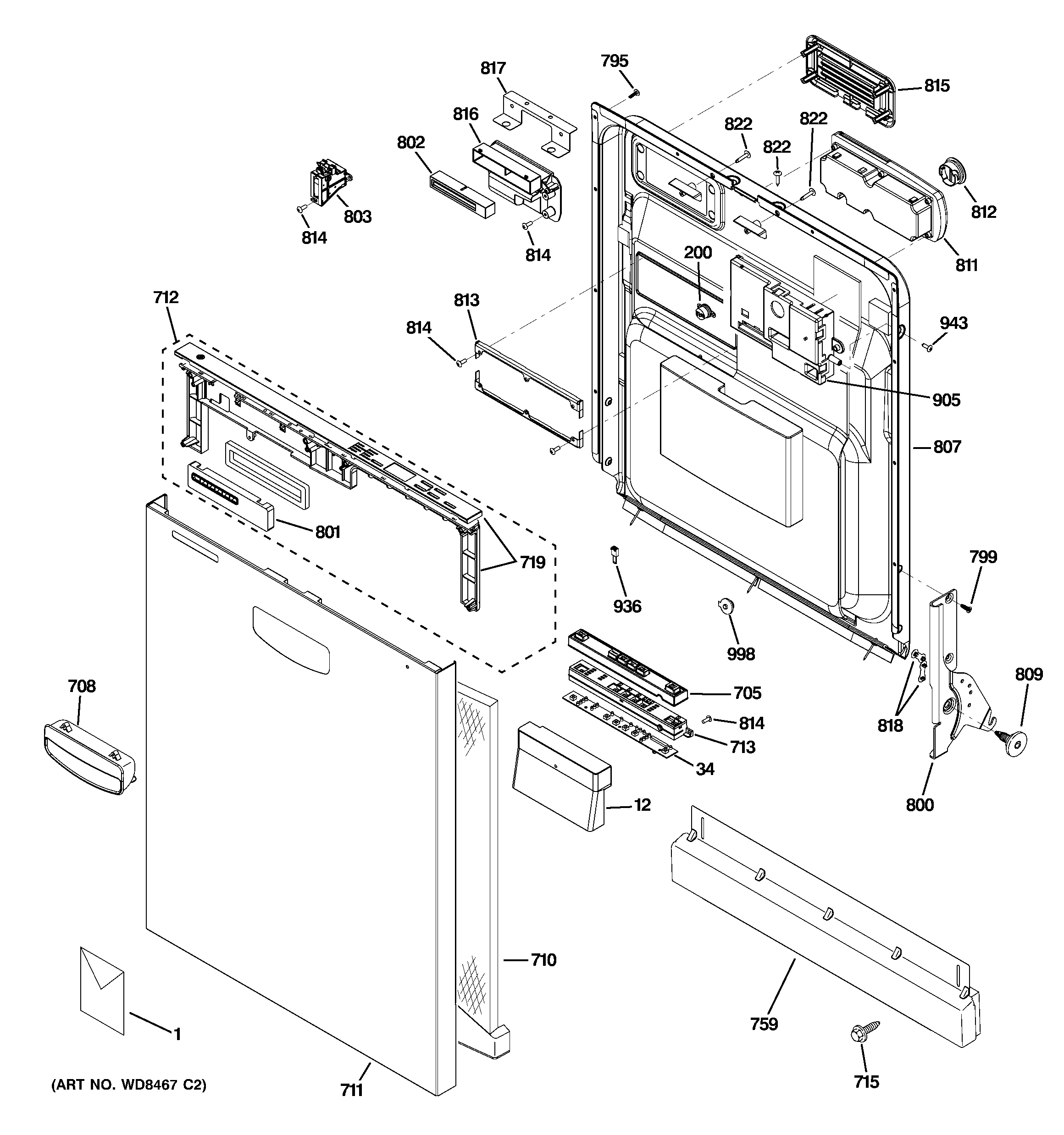

GHDT108V50WW ESCUTCHEON & DOOR ASSEMBLY

GHDT108V50WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GHDT108V50WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 49-55077
1GEN 31-30284
1GEN 31-30635
12SHIELD BOARD TOP
200WD01X10420 GE Dishwasher Thermostat Service Kit
705GEN WD01X10516
705BUTTON ASM SILICON GE WW
708GEN WD09X10068
708GEN WD09X10069
710GEN WD01X10514
711GEN WD27X10284
711GEN WD27X10285
712CONSOLE ASM TACTILE
712CONSOLE ASM TACTILE
713TACTILE ASM HOUSING
715WD02X10147 GE Dishwasher Screw 8-18 B 1HW 1/2 SN WH
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
719GEN WD27X10309
719GEN WD27X10286
759GEN WD27X10168
759WD27X10177 GE Dishwasher Toe Kick Assembly
795SCR 8-18 AB OV .655
799WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
800GEN WD14X10041
800GEN WD14X10040
801GEN WD01X10526
801GEN WD01X10518
802FOAM VENT
802GEN WD01X10609
803LATCH ASM – 1 SWITCH
807DOOR INNER & GASKET
809SCR 10-24 TAP RNP 1/2
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816VENT ASM
817BRACKET SUPPORT LATCH
818WD12X10313 GE Dishwasher Hinge Arm Bearing
822WD02X10111 GE Dishwasher Stainless Steel 8-18 B Porcelain Screw 1/2
905CONTROL TACTILE ASM KIT
936WD21X10464 GE Dishwasher Model Selector Plug Assembly
943WZ5X219D GE Screw Package
998LENS ASM
