GHDT108V55BB ESCUTCHEON & DOOR ASSEMBLY

GHDT108V55BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

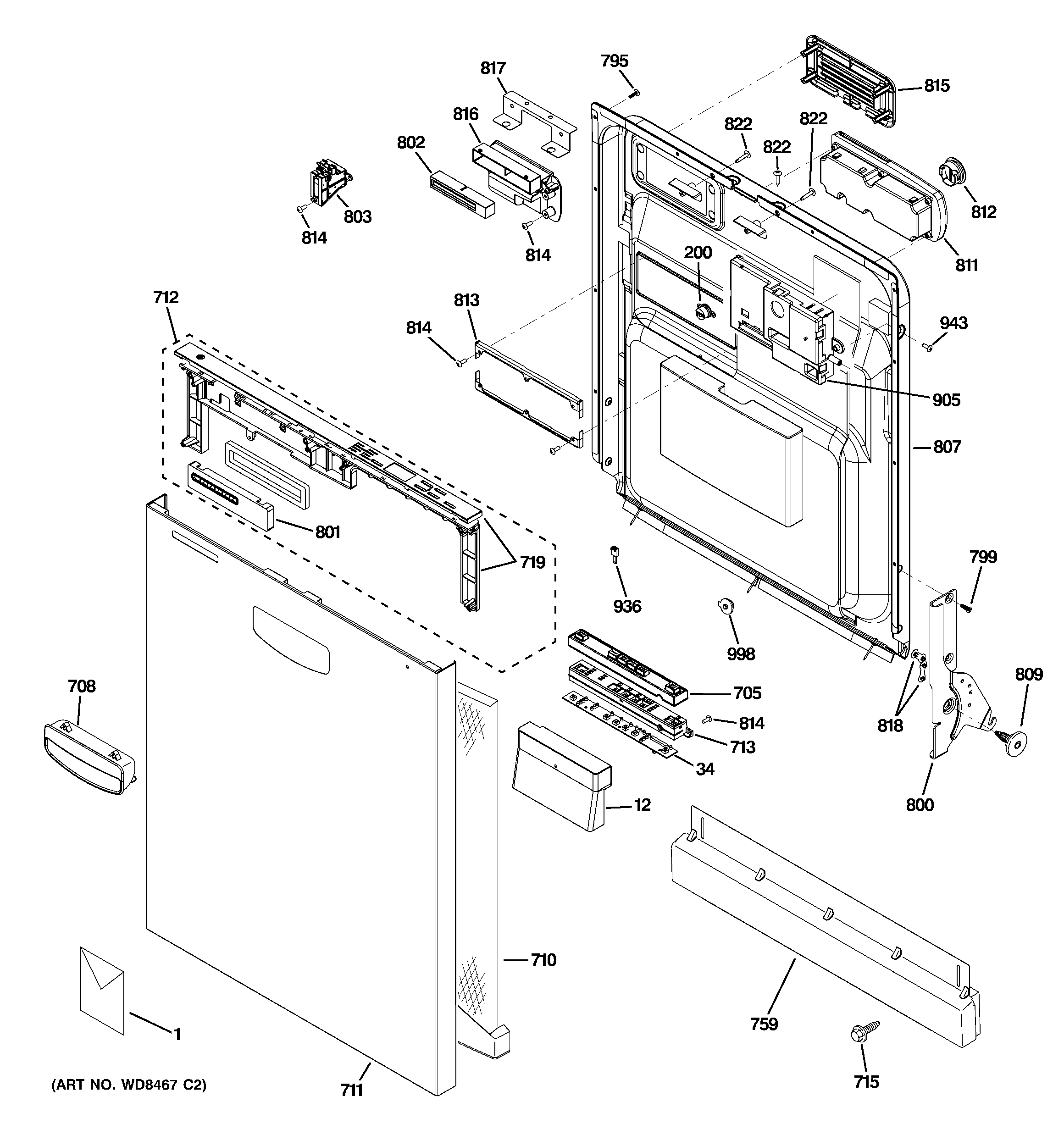

GHDT108V55BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN WD00X939
1GEN 31-30284
1GEN 31-30635
1GEN 49-55077
1GEN 31-30280
1WD02X10208 GE Screw 10-32 TTT Hex 7/16
1HEAT SHIELD
12GEN WD13X10063
12CONSOLE ASM TACTILE
34WD21X10505 GE Dishwasher Control Tactile Assembly Kit
34CONTROL TACTILE ASM KIT
200WD01X10420 GE Dishwasher Thermostat Service Kit
710WR01X10065 GE Screw
710GEN WD01X10344
713GEN WD27X10285
713GEN WD09X10068
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
759WD27X10177 GE Dishwasher Toe Kick Assembly
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
800GEN WD14X10047
802FOAM VENT
803LATCH ASM – 1 SWITCH
807DOOR INNER & GASKET
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814SCREWS 8-10 PL TRP 1/2 S
815WD12X10127 GE Dishwasher Vent Cover
816VENT ASM
818WD12X10313 GE Dishwasher Hinge Arm Bearing
822SCR 8-18 AB OV .655
943GEN WD02X10200
943WD02X10218 GE Dishwasher Screw 8-16X1/2 STN STL
