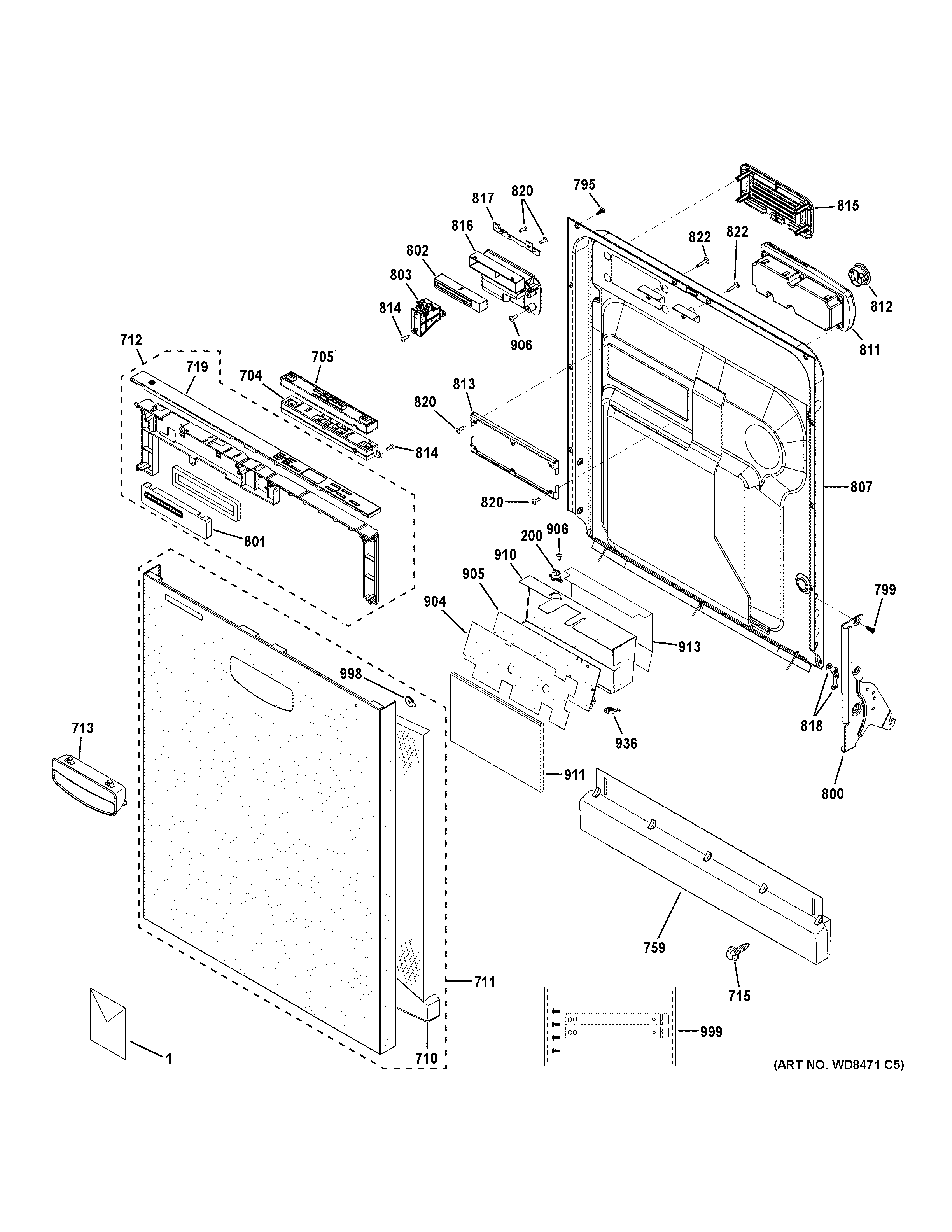

GHDT108V60BB ESCUTCHEON & DOOR ASSEMBLY

GHDT108V60BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GHDT108V60BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM INSTALL INSTRUCTIONS
1PM INSTRUCTION INSTALL
1PM MANUAL USE & CARE
1PM MINI MANUAL
200TCO ASSEMBLY
704TACTILE ASM HOUSING
705GEN WD01X10516
710GEN WD01X10514
711GEN WD27X10285
712CONSOLE ASM TACTILE
713GEN WD09X10068
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
719GEN WD27X10286
759WD27X10177 GE Dishwasher Toe Kick Assembly
795SCR 8-18 AB OV .655
799SCR 10-24 TAP RNP 1/2
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
800GEN WD14X10047
801GEN WD01X10518
802FOAM VENT
803LATCH ASM – 1 SWITCH
807DOOR INNER & GASKET
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814SCREWS 8-10 PL TRP 1/2 S
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816VENT ASM
817BRACKET SUPPORT LATCH
818WD12X10313 GE Dishwasher Hinge Arm Bearing
820WD02X10218 GE Dishwasher Screw 8-16X1/2 STN STL
822SCR 8-18 AB OV 1.405
904HEAT SHIELD
905CONTROL TACTILE ASM KIT
906WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
910SHIELD BOARD TOP
911GEN WD01X10344
913WD01X10635 GE Dishwasher Control Shield
936WD21X10464 GE Dishwasher Model Selector Plug Assembly
998LENS ASM
999WD35X10372 GE Dishwasher Bag and Bracket Assembly
