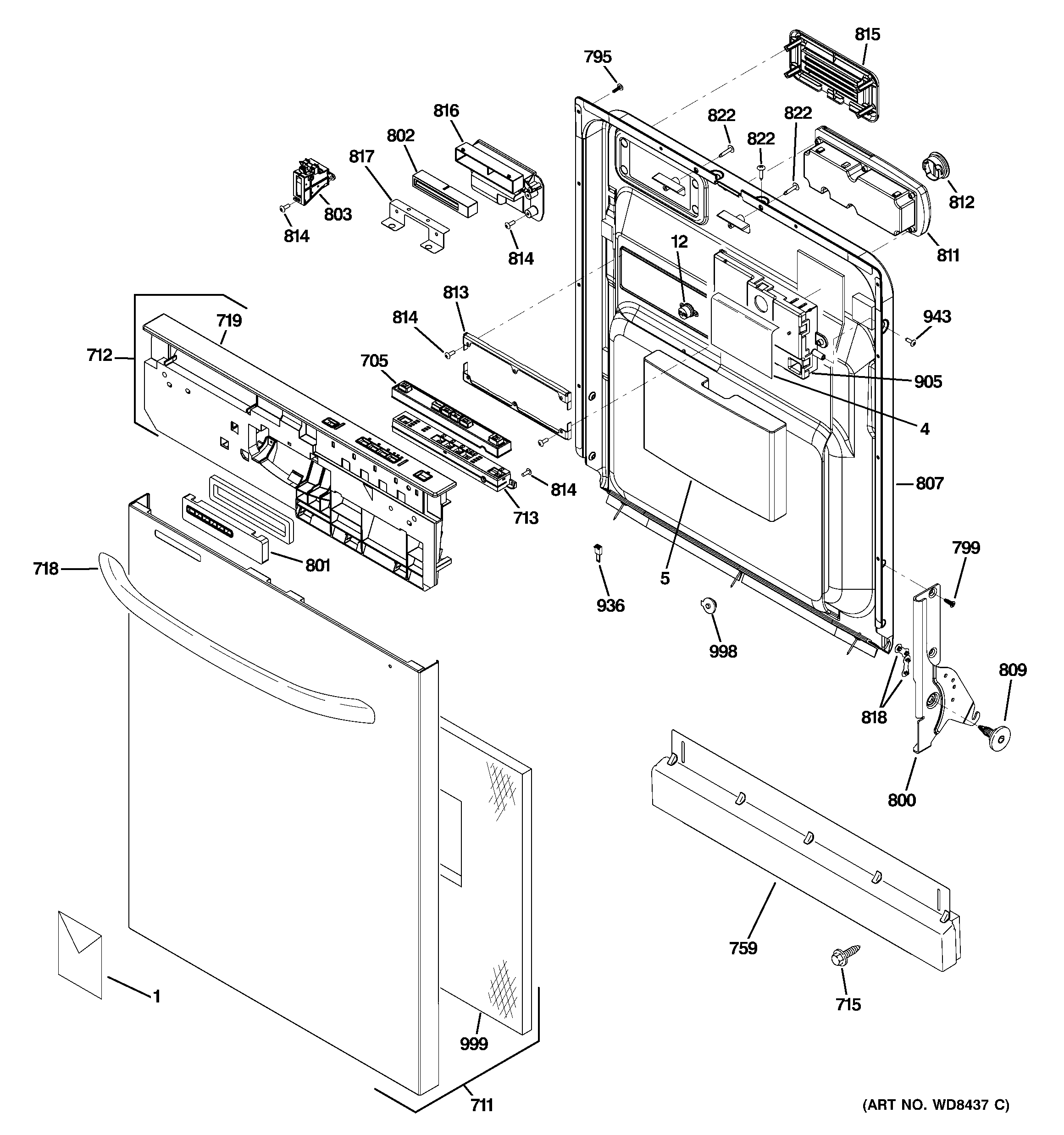

GHDT168V55SS ESCUTCHEON & DOOR ASSEMBLY

GHDT168V55SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GHDT168V55SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1WD02X10208 GE Screw 10-32 TTT Hex 7/16
1GEN 31-30280
1GEN 49-55077
1GEN 31-30635
1GEN 31-30284
1GEN WD00X939
1WD01X10420 GE Dishwasher Thermostat Service Kit
1HEAT SHIELD
5TACTILE ASM HOUSING
5TCO ASSEMBLY
5SHIELD BOARD TOP
5LENS ASM
5WD21X10464 GE Dishwasher Model Selector Plug Assembly
12GEN WD13X10063
12CONSOLE ASM TACTILE
711GEN WD27X10280
713HANDLE SS
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
759GEN WD27X10278
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
800GEN WD14X10047
802FOAM VENT
803LATCH ASM – 1 SWITCH
807DOOR INNER & GASKET
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814SCREWS 8-10 PL TRP 1/2 S
815WD12X10127 GE Dishwasher Vent Cover
816VENT ASM
818WD12X10313 GE Dishwasher Hinge Arm Bearing
822SCR 8-18 AB OV .655
943WD02X10218 GE Dishwasher Screw 8-16X1/2 STN STL
943GEN WD02X10200
999GEN WD01X10514
