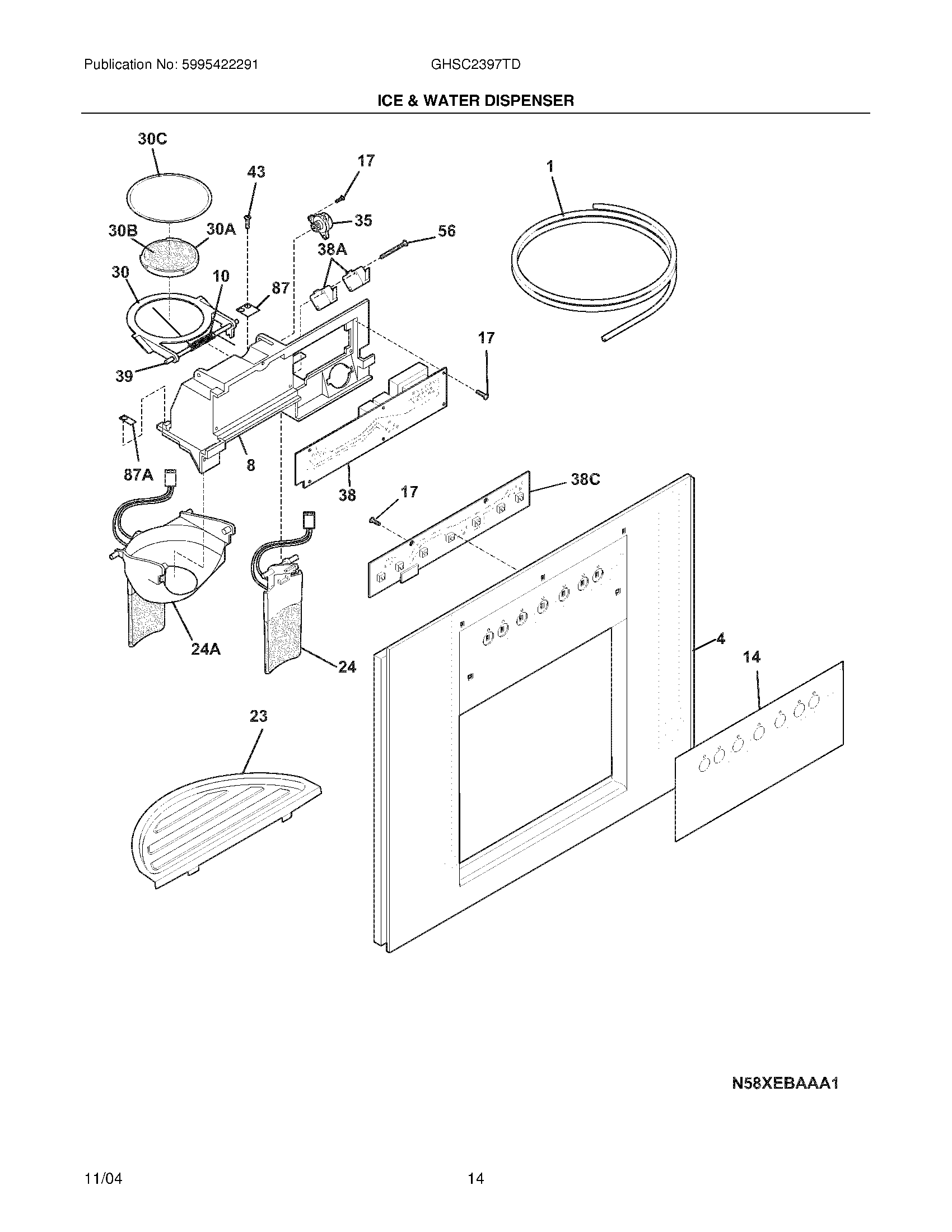

GHSC239TDB1 15 – ICE & WATER DISPENSER

Products

Position	Product
NI	218976903 Frigidaire Refrigerator Water Inlet Tube P-1
NI	WCI 5304426535
NI	WCI 218976912
NI	WCI 240411501
NI	WCI 218976911
NI	240561701 Frigidaire Refrigerator Seal
NI	5304453707 Frigidaire Oven Screw
1	218976409 Frigidaire Refrigerator Water Tube
4	WCI 5304442150
8	WCI 5304424549
10	241688901 Frigidaire Refrigerator Torsion Spring
14	WCI 241543406
17	241679801 Frigidaire Screw
23	WCI 241534403
24A	241682303 Frigidaire Refrigerator Actuator
24	241685703 Frigidaire Refrigerator Lighted Water Dispenser Actuator
30C	241688701 Frigidaire Refrigerator Door Seal
30A	241688501 Frigidaire Refrigerator Door Center
30B	241688601 Frigidaire Refrigerator Door Insulation
30	241688401 Frigidaire Ice Door Bracket
35	241689301 Frigidaire Refrigerator Rotary Damper
38C	241708307 Frigidaire Refrigerator Control Board
38	WCI 5304433619
38A	241689106 Frigidaire Refrigerator Micro Switch
38C	WCI 5304430811
39	241688801 Frigidaire Refrigerator Pin-Hinge
43	WCI 215296300
56	241689201 Frigidaire Refrigerator Screw-Micro Switch
87A	241688301 Frigidaire Refrigerator Bearing Plate
87	241688302 Frigidaire Refrigerator Bearing Plate
